Specifications
Cutting Edge blades:1.Cutting Edge suitable for Caterpillar,Komatsu,Hitachi,Kobelco, Mitsubishi,Sumitomo,Daewoo,Hyund

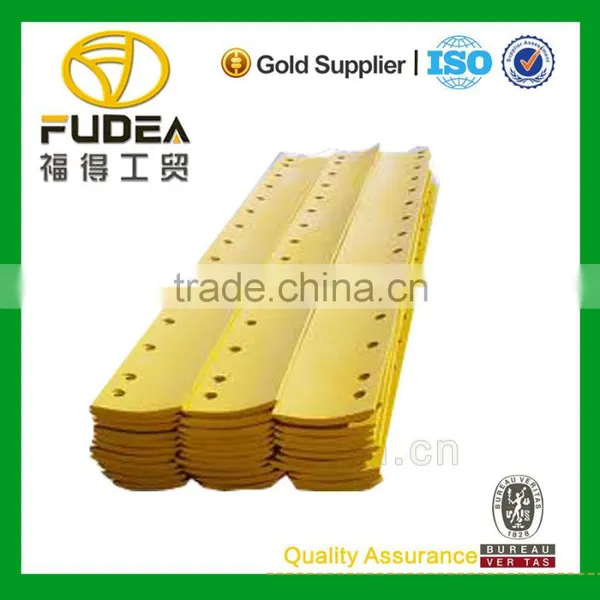

dozer partsgrader blades cutting edges 4T2242
We offer a wide selection of blades manufactured from several grades of high carbon and boron steel.
Many of these products are made from both high carbon and boron steel that are heat-treated and
hardened to improve the lifespan while meeting the demanding requirements of earthmoving and mining applications.
Product Information:
Product Information | |
Material |
Carbon steel or Boron steel 30MNB |
Surface Hardness |
HRC44-54 or 30 |
Yielding Point |
Carbon 600Re-N/mm2 Boron 1440N/mm2 |
Technique |
Forging/Casting |
Colors |
yellow or as your requirements |
Certification |
ISO9001-9002 |
FOB Price |
FOB Xiamen USD 50-55/Piece |
MOQ |
10 pieces |
Delivery Time |
Within 30 days after contract establis |
We can supply the following products:
Adaptor of Komatsu(PC55~PC650) Adaptor of Caterpillar(Cat305~Cat385)
Adaptor of Hitachi(EX60~EX400,ZX35~ZX870)Adaptor of Case(CX55~CX460)
Adaptor of Kobelco(SK55~SK480) Adaptor of Sumitomo(SH75~SH460)
Adaptor of Hyundai(R55~R505) Adaptor of Volvo(EC55~EC700)
Model available:
| Grader blade | |||
| Part No. | Dimension (mm) | Holes | Hole Dia. |
| 5D9553 | 1828X152X16 | 13 | 5/8" |
| 5D9554 | 2133X152X16 | 15 | 5/8" |
| 5D9556 | 1828X152X19 | 13 | 3/4" |
| 5D9557 | 2133X152X19 | 15 | 3/4" |
| 5D9558 | 1828X203X19 | 13 | 3/4" |
| 5D9559 | 2133X203X19 | 15 | 3/4" |
| 5D9561 | 2133X203X16 | 15 | 5/8" |
| 5D9562 | 1828X203X16 | 13 | 5/8" |
| 7D1577 | 2133X203X19 | 15 | 3/4" |
| 7D1949 | 2438X203X19 | 17 | 3/4" |
| 7D1158 | 2133x203x16 | 15 | 5/8" |
| 4T2244 | 1828x203x25 | 13 | 5/8" |
| 4T2242 | 2133x203x25 | 15 | 5/8" |
| 4T2231 | 1828x203x25 | 13 | 3/4" |
| 4T2233 | 2133x203x25 | 15 | 3/4" |
| 8J9821 | 2438x203x16 | 17 | 3/4" |
| 5B5561 | 2133x152x16 | 9 | 5/8" |
| 5B5562 | |||
| 5B5564 | 1828x152x16 | 8 | 5/8" |
| 9W2297 | 1828x152x13 | 8 | 5/8" |
| 9W2299 | 2133x152x13 | 9 | 5/8" |
| 9W2301 | 2438x152x13 | 10 | 5/8" |
| 232-70-12143 | 1828x152x16 | 13 | 5/8" |
| 234-70-12193 | 2133x152x16 | 15 | 5/8" |
| 234-70-12550 | 2133x203x16 | 9 | 3/4" |
| 234-70-12710 | 2133x203x16 | 15 | 3/4" |
| 232-70-52850 | 1828X203X19 | 13 | 5/8" |
| 234-70-12670 | 2133X203X19 | 15 | 5/8" |
| 235-70-12140 | 2438X203X19 | 17 | 3/4" |
Note: the above part number shown are for referrence purpose only.

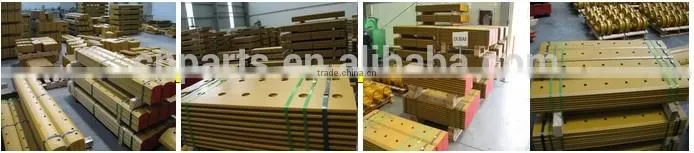

Product Process:
Why Choose Us:
1. Experience QC department. 2.Top one-stop after-sale service.
3.Advance automatic imported machines 4.Outstanding and professional team
5.The better favourable price with top quality 6.custom-design according to your favour.
Our Certifications:
We Are In 2012 Bauma Fair:
