Home > Industrial Equipment & Components > Fastener & Fitting > Bolts > Hot Sell Excavator Track Decorative Nut and Bolt
Hot Sell Excavator Track Decorative Nut and Bolt
Negotiable
MOQ: 200 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
excavator track bolt and nut
Model Number:
excavator track bolt and nut
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Factory Supply Cheap Metal Bolt BinsNegotiableMOQ: 200 Sets -
Wholesale Different Kinds All Types Screw BoltNegotiableMOQ: 200 Sets
-
China High Quality Manufacturer Pin BoltNegotiableMOQ: 200 Sets
-
Factory Special Custom Cheap Round Head BoltNegotiableMOQ: 200 Sets
-
Factory Price Special Types of Decorative BoltNegotiableMOQ: 200 Sets
Place of Origin
Fujian, China
Brand Name
excavator track bolt and nut
Model Number
excavator track bolt and nut
Hot sell excavator track decorative nut and bolt
Products Information
Application: |
plow Bolt |
MOQ: |
100PCS |
Delivery Time: |
Within 30 Days After Contracted |
Material: |
40Cr |
Technique: |
Heat Treatment, Bluing, Hot Forging |
Grade: |
8.8-12.9 |
Surface Hardness: |
HRC38-43 |
Certification: |
ISO9001:2008 |

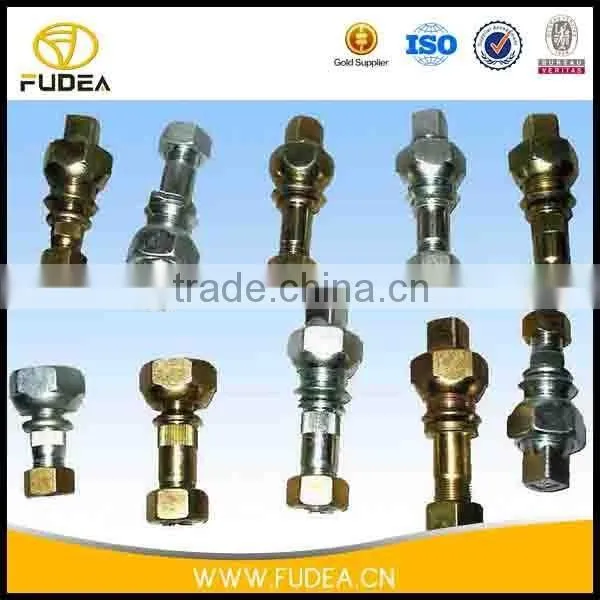

Products show:
3.Advantages / Features:
Plow bolt testing results:
| NAME OF SAMPLE | PLOW BOLT | DESCRIPTION | DIAMETER >16 | ||||||
| MARKS | RAW MATERIAL | 40Cr | |||||||
| GRADE | GRADE:12.9 | QUANTITY | 4 | ||||||
| NBIS | JB/T 5932.5-1991THE BOLT IS USED TO THE CUTTING TIP of Bulldozer,Scooptram and Grader | ||||||||
| RESULTS | Chemical Composition | The Chemical Composition of Raw Material% | |||||||
| Name | C | Si | Mn | Cr | RESULT | ||||
| Standard Value | min | 0.37 | 0.17 | 0.5 | 0.8 | ||||
| max | 0.44 | 0.37 | 0.8 | 1.1 | |||||
| Measured Value | 0.39 | 0.23 | 0.68 | 0.92 | Qualified | ||||
| HARDNESS | Standard Value | HRC38-42 | |||||||
| Measured Value | 1# | 2# | 3# | 4# | RESULT | ||||
| 39 | 40 | 42 | 41 | Qualified | |||||
| TEST DATE | REPORT DATE | ||||||||
Workshop Products
Why Choose Us:
1. Experience QC department.
2.Top one-stop after-sale service.
3.Advance automatic imported machines
4.Outstanding and professional team
5.The better favourable price with top quality
6.custom-design according to your favour.
Our Certifications
We Are In Bauma Fair
Track link bolt & nut_bolt & nut
| Description | STYLE | Unit | Net W.T. | OEM No. | Size For Nut | |
| Kg/Unit | ||||||
| Bolt | Nut | |||||
| M14X1.5X40 | A | a | Set | 0.128 | ||
| M14X1.5X48 | A | a | Set | 0.128 | 110-32-11411 | |
| /01803-01415 | ||||||
| M16X1.5X48 | A | a | Set | 0.176 | ||
| M16X1.5X54 | A | a | Set | 0.18 | ||
| M16X1.5X57 | A | b | Set | 0.196 | 130-32-05001 | |
| M18X1.5X54 | A | a | Set | 0.24 | ||
| M18X1.5X55F | B | a | Set | 0.24 | ||
| M18X1.5X57 | A | a | Set | 0.246 | 2420P1513 | M18X1.5X22 |
| /2420T4443 | ||||||
| M18X1.5X57 | A | a | Set | 0.246 | 205-32-51210 | |
| M18X1.5X57 | A | b | Set | 0.246 | 135-34-11211 | |
| M18X1.5X58 | A | a | Set | 0.242 | ||
| M19X1.5X60 | A | b | Set | 0.31 | 150-32-21321 | |
| M19X1.5X65 | A | b | Set | 0.32 | 156-32-11210 | |
| M20X1.5X55 | A | a | Set | 0.31 | 14X-32-11210 | |
| /154-32-11230 | ||||||
| M20X1.5X56 | A | a | Set | 0.32 | ||
| M20X1.5X56F | D | a | Set | 0.286 | 20Y-32-11210 | |
| /154-32-11230 | ||||||
| M20X1.5X60 | Set | 0.32 | 2420Z1292 | M20X1.5X27.5 | ||
| /2420Z1293 | ||||||
| M20X1.5X60 | A | b | Set | 0.33 | 201-32-11210 | |
| M20X1.5X63 | A | a | Set | 0.326 | ||
| M20X1.5X65 | A | a | Set | 0.328 | ||
| M20X1.5X65 | A | b | Set | 0.34 | 156-32-21321 | |
| M22X56 | A | b | Set | 0.384 | ||
| M22X1.5X72 | A | a | Set | 0.47 | ||
| M24X1.5X75 | A | a | Set | 0.57 | ||
| M24X1.5X76.2 | A | a | Set | 0.57 | 175-32-11210 | M24X1.5X24 |
| /178-32-11220 | ||||||
| 9/16"-18UNFX1 5/8" | A | a | Set | 0.128 | 4K7038/7K2017 | 9/16"-18UNFX3/4" |
| 9/16"-18UNFX1 13/16" | A | a | Set | T126931 | 9/16"-18UNFX3/4" | |
| 9/16"-18UNFX1 7/8" | A | a | Set | 0.31 | ||
| 9/16"-18UNFX1 7/8" | A | a | Set | R153099 | 9/16"-18UNFX3/4" | |
| 9/16"-18UNFX1 15/16" | A | a | Set | 0.138 | 7H3596/7K2017 | 9/16"-18UNFX3/4" |
| 9/16"-18UNFX2 3/16" | A | a | Set | 616199C1 | ||
| 9/16"-18UNFX2 1/2" | A | a | Set | 0.156 | ||
| 5/8"-18UNFX1 7/8" | A | a | Set | 0.176 | ||
| 5/8"-18UNFX2 3/32" | A | a | Set | 0.182 | 097282/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX2 3/32" | A | a | Set | 0.182 | 7H3597/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX2 1/8" | A | a | Set | 0.182 | R27166/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX65 | A | a | Set | 0.2 | ||
| 5/8"-18UNFX3" | A | a | Set | 0.21 | ||
| 5/8"-18UNFX3 3/8" | A | a | Set | 0.22 | 5A4104/1M1408 | 5/8"-18UNFX3/4" |
| 3/4"-16UNFX2 1/8" | A | a | Set | 0.276 | ||
| 3/4"-16UNFX2 5/32" | A | a | Set | 0.276 | 1S1859/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX2 3/8" | A | a | Set | 7H3598/1S1860 | 3/4"-16UNFX3/4" | |
| 3/4"-16UNFX2 13/32" | A | a | Set | 0.296 | 6V1792/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX4" | A | a | Set | 0.326 | 5A7524/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX4 1/8" | A | Pc. | 0.33 | 9S1838 | ||
| 3/4"-16UNFX4 3/8" | A | Pc. | 0.33 | 2P9670 | ||
| 7/8"-14UNFX2 21/32" | A | a | Set | 0.43 | 7H3599/2S2190 | |
| 7/8"-14UNFX2 21/32" | A | a | Set | 0.424 | 7H3599/2S2140 | |
| 1"-14UNSX3" | A | a | Set | 0.656 | 9M7445/1S6421 | |
| 1"-14UNSX3 1/2" | A | a | Set | 0.78 | 9M7445/1S6421 | |
Any Question,Please Feel Free To Contact Me Anytime.
MS. Michelle Chen
Mobile:86 15880208980
Cell Phone:86 0592-5161837
Fax Number:86 0592-5970601
Web:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
