3F-5108 Track Shoe Bolt / Excavator Bolts / Chain Bolt
US$ 0.1 - 0.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
track shoe bolt
Model Number:
3F-5108
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9S - 1838 Track Shoe Bolt / Excavator Bolts / Chain BoltUS$ 0.1 - 0.5MOQ: 100 Pieces -
Track Bolt 135-32-11211& Nut 79039445/ Track Nut and Bolt/ Track Bolt and NutUS$ 0.1 - 0.5MOQ: 100 Pieces
-
Track Bolt207-32-51210& Nut 51220/ Track Nut and Bolt/ Track Bolt and NutUS$ 0.1 - 0.5MOQ: 100 Pieces
-
Track Bolt 14X-32-11210 & Nut 134-32-61221/ Track Nut and Bolt/ Track Bolt and NutUS$ 0.1 - 0.5MOQ: 100 Pieces
-
Track Bolt 6Y9024& Nut 9W4381/ Track Nut and Bolt/ Track Bolt and NutUS$ 0.1 - 0.5MOQ: 100 Pieces
Place of Origin
Fujian, China
Brand Name
track shoe bolt
Model Number
3F-5108
1. Products Information
Application: |
track shoe bolt |
MOQ: |
100PCS |
Delivery Time: |
Within 30 Days After Contracted |
Material: |
40Cr |
Technique: |
Heat Treatment, Bluing, Hot Forging |
Grade: |
8.8-12.9 |
Surface Hardness: |
HRC38-43 |
Certification: |
ISO9001:2008 |

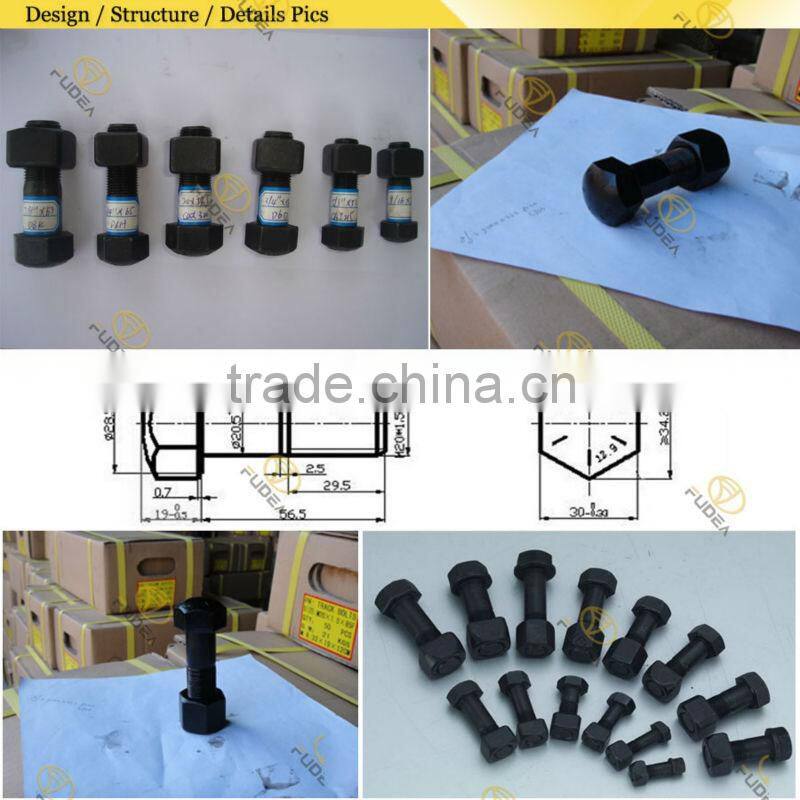

2.Products show:
3.Advantages / Features:

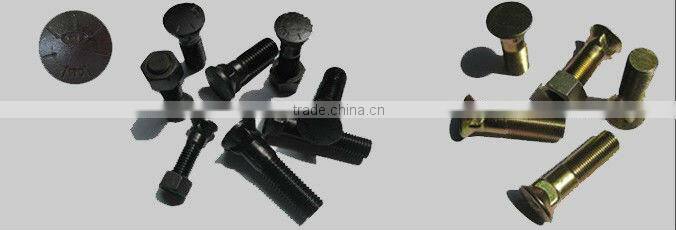

Plow bolt testing results:
| NAME OF SAMPLE | PLOW BOLT | DESCRIPTION | DIAMETER >16 | ||||||
| MARKS | RAW MATERIAL | 40Cr | |||||||
| GRADE | GRADE:12.9 | QUANTITY | 4 | ||||||
| NBIS | JB/T 5932.5-1991THE BOLT IS USED TO THE CUTTING TIP of Bulldozer,Scooptram and Grader | ||||||||
| RESULTS | Chemical Composition | The Chemical Composition of Raw Material% | |||||||
| Name | C | Si | Mn | Cr | RESULT | ||||
| Standard Value | min | 0.37 | 0.17 | 0.5 | 0.8 | ||||
| max | 0.44 | 0.37 | 0.8 | 1.1 | |||||
| Measured Value | 0.39 | 0.23 | 0.68 | 0.92 | Qualified | ||||
| HARDNESS | Standard Value | HRC38-42 | |||||||
| Measured Value | 1# | 2# | 3# | 4# | RESULT | ||||
| 39 | 40 | 42 | 41 | Qualified | |||||
| TEST DATE | REPORT DATE | ||||||||
Workshop Products
Track link bolt & nut_bolt & nut
| Description | STYLE | Unit | Net W.T. | OEM No. | Size For Nut | |
| Kg/Unit | ||||||
| Bolt | Nut | |||||
| M14X1.5X40 | A | a | Set | 0.128 | ||
| M14X1.5X48 | A | a | Set | 0.128 | 110-32-11411 | |
| /01803-01415 | ||||||
| M16X1.5X48 | A | a | Set | 0.176 | ||
| M16X1.5X54 | A | a | Set | 0.18 | ||
| M16X1.5X57 | A | b | Set | 0.196 | 130-32-05001 | |
| M18X1.5X54 | A | a | Set | 0.24 | ||
| M18X1.5X55F | B | a | Set | 0.24 | ||
| M18X1.5X57 | A | a | Set | 0.246 | 2420P1513 | M18X1.5X22 |
| /2420T4443 | ||||||
| M18X1.5X57 | A | a | Set | 0.246 | 205-32-51210 | |
| M18X1.5X57 | A | b | Set | 0.246 | 135-34-11211 | |
| M18X1.5X58 | A | a | Set | 0.242 | ||
| M19X1.5X60 | A | b | Set | 0.31 | 150-32-21321 | |
| M19X1.5X65 | A | b | Set | 0.32 | 156-32-11210 | |
| M20X1.5X55 | A | a | Set | 0.31 | 14X-32-11210 | |
| /154-32-11230 | ||||||
| M20X1.5X56 | A | a | Set | 0.32 | ||
| M20X1.5X56F | D | a | Set | 0.286 | 20Y-32-11210 | |
| /154-32-11230 | ||||||
| M20X1.5X60 | Set | 0.32 | 2420Z1292 | M20X1.5X27.5 | ||
| /2420Z1293 | ||||||
| M20X1.5X60 | A | b | Set | 0.33 | 201-32-11210 | |
| M20X1.5X63 | A | a | Set | 0.326 | ||
| M20X1.5X65 | A | a | Set | 0.328 | ||
| M20X1.5X65 | A | b | Set | 0.34 | 156-32-21321 | |
| M22X56 | A | b | Set | 0.384 | ||
| M22X1.5X72 | A | a | Set | 0.47 | ||
| M24X1.5X75 | A | a | Set | 0.57 | ||
| M24X1.5X76.2 | A | a | Set | 0.57 | 175-32-11210 | M24X1.5X24 |
| /178-32-11220 | ||||||
| 9/16"-18UNFX1 5/8" | A | a | Set | 0.128 | 4K7038/7K2017 | 9/16"-18UNFX3/4" |
| 9/16"-18UNFX1 13/16" | A | a | Set | T126931 | 9/16"-18UNFX3/4" | |
| 9/16"-18UNFX1 7/8" | A | a | Set | 0.31 | ||
| 9/16"-18UNFX1 7/8" | A | a | Set | R153099 | 9/16"-18UNFX3/4" | |
| 9/16"-18UNFX1 15/16" | A | a | Set | 0.138 | 7H3596/7K2017 | 9/16"-18UNFX3/4" |
| 9/16"-18UNFX2 3/16" | A | a | Set | 616199C1 | ||
| 9/16"-18UNFX2 1/2" | A | a | Set | 0.156 | ||
| 5/8"-18UNFX1 7/8" | A | a | Set | 0.176 | ||
| 5/8"-18UNFX2 3/32" | A | a | Set | 0.182 | 097282/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX2 3/32" | A | a | Set | 0.182 | 7H3597/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX2 1/8" | A | a | Set | 0.182 | R27166/1M1408 | 5/8"-18UNFX3/4" |
| 5/8"-18UNFX65 | A | a | Set | 0.2 | ||
| 5/8"-18UNFX3" | A | a | Set | 0.21 | ||
| 5/8"-18UNFX3 3/8" | A | a | Set | 0.22 | 5A4104/1M1408 | 5/8"-18UNFX3/4" |
| 3/4"-16UNFX2 1/8" | A | a | Set | 0.276 | ||
| 3/4"-16UNFX2 5/32" | A | a | Set | 0.276 | 1S1859/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX2 3/8" | A | a | Set | 7H3598/1S1860 | 3/4"-16UNFX3/4" | |
| 3/4"-16UNFX2 13/32" | A | a | Set | 0.296 | 6V1792/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX4" | A | a | Set | 0.326 | 5A7524/1S1860 | 3/4"-16UNFX3/4" |
| 3/4"-16UNFX4 1/8" | A | Pc. | 0.33 | 9S1838 | ||
| 3/4"-16UNFX4 3/8" | A | Pc. | 0.33 | 2P9670 | ||
| 7/8"-14UNFX2 21/32" | A | a | Set | 0.43 | 7H3599/2S2190 | |
| 7/8"-14UNFX2 21/32" | A | a | Set | 0.424 | 7H3599/2S2140 | |
| 1"-14UNSX3" | A | a | Set | 0.656 | 9M7445/1S6421 | |
| 1"-14UNSX3 1/2" | A | a | Set | 0.78 | 9M7445/1S6421 | |
