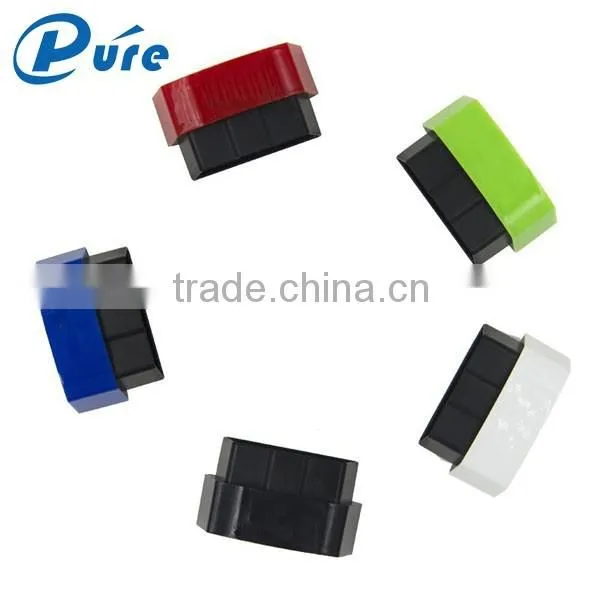

Bluetooth iCar 3 Scanner OBD2 Protocol Automatic Scanner Diagnostic Bluetooth Reader Scanner
Functions:
Function:
1.Read, erase and display code descriptions problems - both standard and
spetskodov manufacturers.
2.Measure the fuel consumption.
3.Display real-time operating performance of the car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load, intake manifold
pressure, throttle position, the values of oxygen sensors, air intake
temperature, and more.
4.Turn off the MIL (signal Check Engine).
5.Download data to external media in a variety of formats for later printing.
6.Record various parameters, display graphics in real time, and more.
Support Cars:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Features:
1.Supply voltage(VDD):12V
2.Work temperature range: -20 ~ +70
3.Storage temperature range: -40 ~ +125
4.RF sensitivity(Basic Rate): -85db
5.Modulation Mode: GFSK
6.Frequency Range:2402 ~ 2480MHZ
7.Transmission Range:10M
8.Bluetooth Profile:SPP
9.UART Params:38400,8,n,1
10.Small size, compact structure. Plug and never unplug
11.Stable wireless connection
12.No wires or batteries (adapter is powered by the diagnosis size sockets)
13.Stop communication, wait half an hour, auto sleep
14.Supports all OBDII protocols
15.The adapter uses the fastest and most reliable ARM chips
Specification:
Model No. |
ELM327 |
Application |
OBD-II compliant vehicles |
Certificates |
CE FCC ROHS |
Warranry |
12 months |
Sample |
Support |
MOQ |
20 pcs |
Payment Terms |
T/T, Western Union, PayPal .etc |
Shipping |
DHL,UPS,FEDEX and etc. SEA and AIR shipping |
1. Reply your enquiry in 12 working hours.
2. Experienced staff reply all your questions in fluent English.
3. Special discount and protection of sales area provided to our distributor.
4. Specialized in chargers and adapters over 5 years
5. A team of designers and engineers are capable to create new items according to personal request.
6. Customized design is avalibale.
7. Welcome OEM and ODM.
If you give us your business, we will not let you down! We will do our best to serve every customer with the utmost care!
