CAN-BUS Diagnostic Scanner Universal OBD2 Scanner Car Remote Scanner

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

Engine RPM;Calculated Load Value;Coolant Temperature;Fuel System Status;Vehicle Speed;Short Term Fuel Trim;Long Term Fuel Trim;Intake Manifold Pressure;Timing Advance;Intake Air Temperature;Air Flow Rate;Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims;Fuel System status;Fuel Pressure;Many others..

4.Upcoming Function:

Data graphing and logging;Freeze Frame data;Continuous and Non-Continuous Oxygen Sensor test results

Specifications:

1.OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM

2.Output protocol:RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA

3.Free software:

1)GM Mode 22 Scan Tool by Terry

2)OBD Gauge for PalmOS and Pocket PC by Dana Peters

3)OBD Logger by Jonathan Senkerik

4)OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

5)OBD2 Scantool by Ivan Andrewjeski

6)OBDII for ELM322 by David Huffman

7)pyOBD by Donour Sizemore for MacOSX and Linux

8)RDDTC by Pete Calinski

9)Real Scan by Brent Harris

10)ScanTest for Pocket PC by Ivan Ganev aka a-ser

11)wOBD by WDT

4.Aavailable cars:

Benz 2001/02/03 W203 C200K (ISO)

B-M-W X5 2002 (ISO) Chevrolet Aveo (ISO)

Citroen C3 2004 (ISO)  Daihatsu YRV 2005 (ISO)

Daihatsu YRV Turbo 2006 (ISO)

Fiat Tipo 2002 (ISO)

Ford New Focus 2006(CAN)

Ho-n-da Accord 2006 JDM (ISO)

Ho-n-da Accord Euro R 2004 JDM (ISO)

Ho-n-da City GD8 (ISO)

Ho-n-da Civic ES 1.6A (ISO)

Ho-n-da Integra Type R DC5 JDM (ISO)

Ho-n-da Jazz 1.4M (ISO)

Hyundai Accent 2004 (ISO)

Hyundai Getz 1.3A 2004 (ISO)

Hyundai Getz 1.6M 2004 (ISO)

Hyundai Matrix 2004 (ISO)

Hyundai Santa Fe 2.4A (ISO)

Hyundai Sonata GLS (ISO)

Hyundai Sonata 2005 (ISO)

Hyundai Tuscani FX (ISO)

Kia Carens 2005 (ISO)

Kia Magentis 2005 (ISO)

Kia Rio LS (ISO)

Kia Sorento SUV 2005 (ISO)

Lexus es300 Mazda 2 (CAN)

Mazda 5 (CAN)

Mazda 6 (CAN)

Mazda Premacy 2001 (ISO)

Mazda RX8 (CAN)

Mitsubishi Colt 2003 (ISO)

Mitsubishi Colt Plus 2005 (ISO)

Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000,RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)

Mitsubishi Lancer Evolution IX 2006 (ISO)

Mitsubishi Pajero 3.5 V6 2006 (ISO)

Nissan Sunny B14 (ISO)

Nissan Sunny VIP FB15 (ISO)

Nissan X-Trail 2.0L 2004 (ISO)

Nissan X-Trail 2.5L 2004 (ISO)

Peugeot 206 2001 –Only can show RPM

Peugeot 206 (ISO)

Peugeot 307 (ISO)

Peugeot 407 (ISO)

Renault Megane II 2005 (ISO)

Renault Kangoo 2006 (ISO)

Subaru Impreza 1.6TS 2002 (ISO)

Subaru Impreza WRX 2005 (ISO)

Toyota Camry 2.0A 2004 (ISO)

Toyota Camry 2.4A 2005 (ISO)

Toyota Corolla Altis 1.6A 2005 (ISO)

Toyota Corolla GLXi G8 1999 (ISO)

Toyota Corolla G9 2002 (ISO)

Toyota Vios 2004 (ISO)

5.Not available veichles:

Mazda 323 Protege 2003 (OBD-I)

Mitsubishi Lancer 1.6M 2006

Nissan Sunny (N16)

Nissan Cefiro (Teana) 2005

Nissan sentra 1.8 2000/2005

Nissan Cefiro (Teana) 2005

Proton Perdana V6

Subaru Legacy GT 2005

Toyota camry 2002

Toyota Wish JDM (Missing Pin 5 in DLC)

Toyota IST JDM (Missing Pin 5 in DLC)

Toyota altis 1.8 2004

Peugeot 206 2000

Suzuki Jimny 1.3 2000

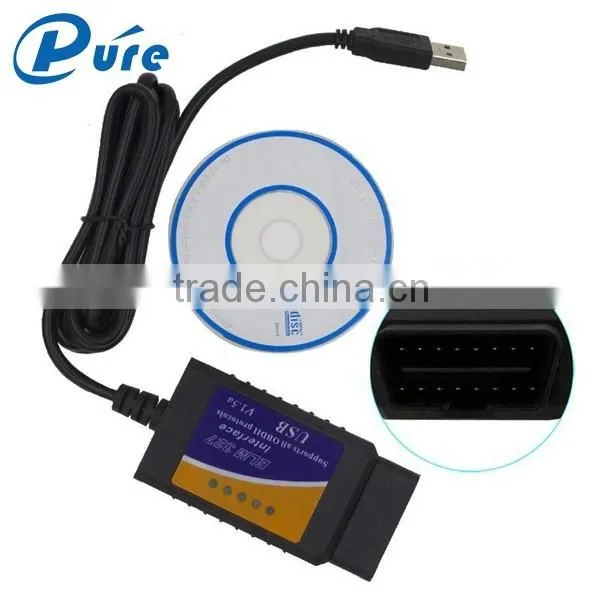

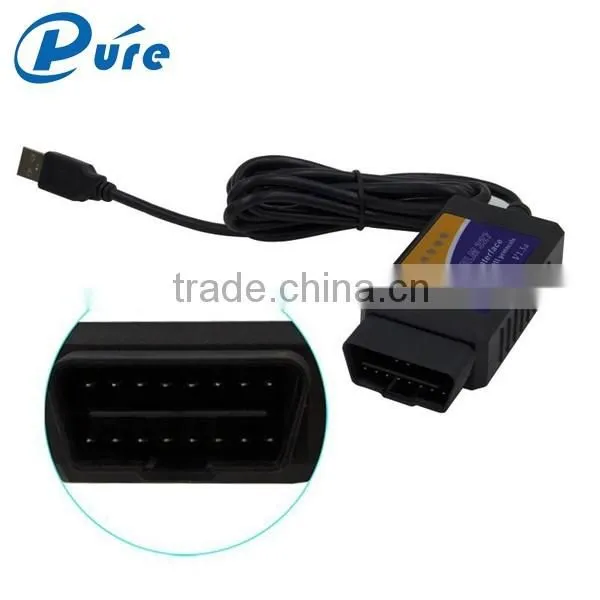

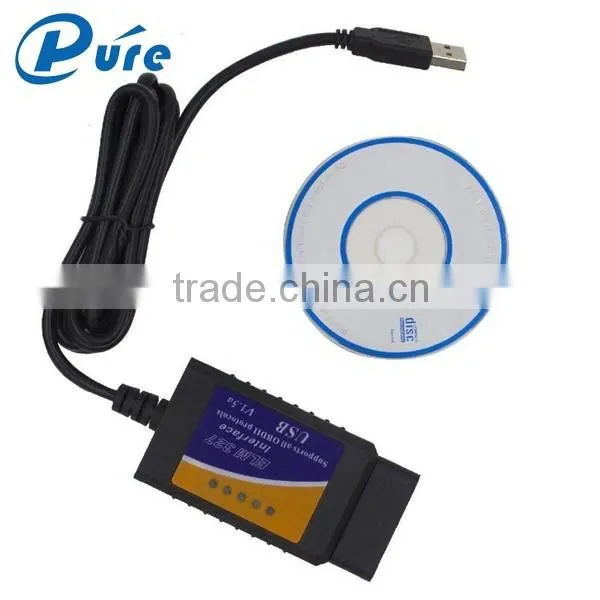

Package includes:

1pc x Elm327 USB interface

1pc x CD software
