Description:

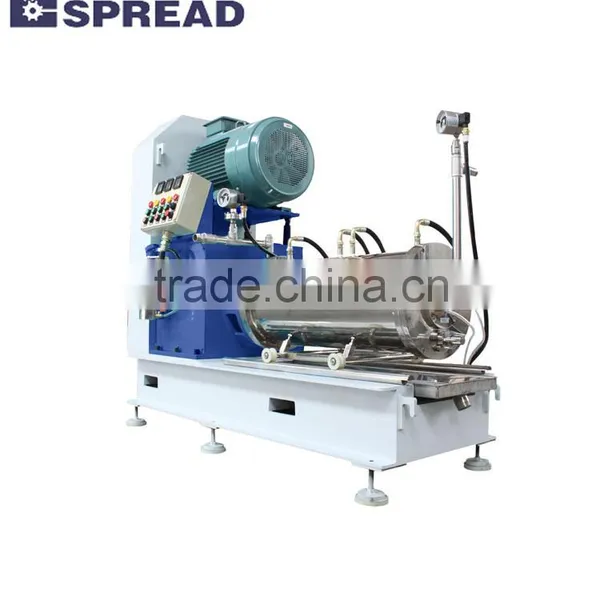

100L Pigment sand mill with high outlet
Model:
ESDF-Type Sand Mill
Characteristics:
-High flux--Germany technology: static centrifugal discharging devices,large discharge area with high output.
-Adopts double mechanical seal, the lubricating liquid dissolved with material, safe and reliable.
Grinding area made of special anti-wearing alloy material ensures long service life.
-Cooling efficiency: the double helix segmented more advantageous to the exchange energy .Cooling efficiency is 2 times than ordinary types.
-Intelligent double mechanical seals: the technology of Germany mechanical, the imported-fluorine sealing rings can be anti-eroded different solvents.
-Grinding efficiency than ordinary type: increased by more than 30%,the distributor can rapidly improving dispersion efficiency. The grinding media can choose superfine grinding medium.
Application area:
Dispersing and milling in the field of coating, paint, printing ink, agricultural chemical, etc.
Technical specification:
|
Parameter Type |
Total Volume L |
Power (Kw) |
Batch L |
Cooling water L/h |
Max line velocity m/s |
ESDF5 |
5 |
5.5 |
50~200 |
500 |
10 |
ESDF30 |
30 |
22 |
200~1000 |
1000 |
10 |
ESDF50 |
50 |
30 |
200~2000 |
1500 |
10 |
ESDF100 |
100 |
55 |
500~3000 |
2500 |
11 |
ESDF260 |
260 |
110 |
1000~8000 |
5000 |
12 |
