Description:

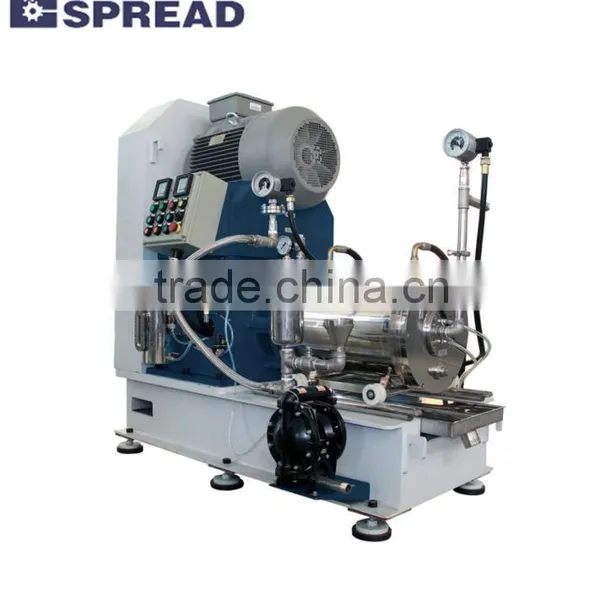

European stand Nano Bead mill for TFT and LCD filter ink
Model:
ESN Type Nano Bead mill
Charasteristics:

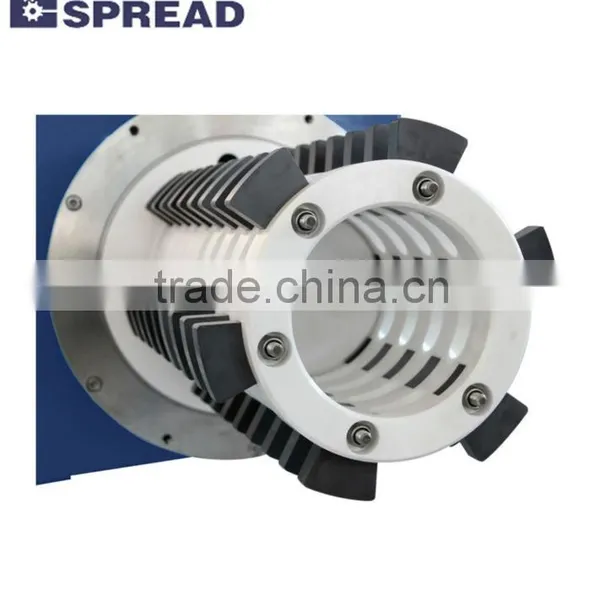

Static centrifugal separation device is a new design; flow is large, smooth discharge;
Can use the grinding media over 0.1mm;

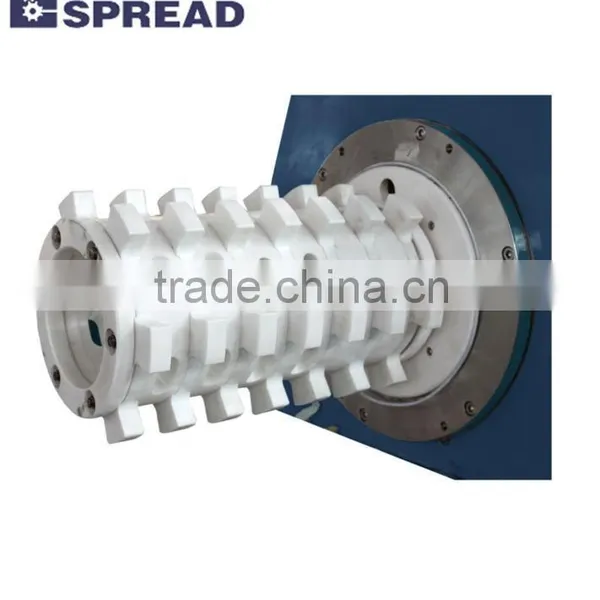

To golden ratio rotor and cylinder arrangement as standard;
Can effectively reduce the wear, increase energy efficiency, and achieve the best
Effect of the use of;
The design will be more optimized, the overall stability of the equipment more reliable;
All imports of mechanical seals, bearings, pumps, the belt, and the pulley and other standard parts;
Double cooling mode, can effectively reduce the grinding heat generation.
Application area:
Series sand mill is widely used in the ceramic ink, ink, color filter separating agent, functional ceramic, lithium battery materials, thermal paper, electronic slurry, nano pigment nano grinding field
Technical specification:
|
Parameter Type |
Total volu volume L |
Working Volume L
|
Power Kw |
Batch L |
Cooling Water L/h |
Max Line velocity m/s |
ESN0.5 |
1 |
0.5 |
1.5 |
1~5 |
100 |
12 |
ESN1 |
1.8 |
1 |
2.2 |
2~10 |
100 |
12 |
ESN2 |
3.6 |
2 |
3 |
3~20 |
100 |
12 |
ESN6 |
11 |
6 |
15 |
200~1000 |
1000 |
14 |
ESN10 |
17 |
10 |
18.5 |
300~1000 |
1500 |
14 |
ESN20 |
35 |
20 |
30 |
500~1500 |
2000 |
14 |
ESN30 |
45 |
30 |
45 |
500~2000 |
2000 |
14 |
ESN60 |
110 |
60 |
75 |
1000~3000 |
2500 |
15 |
ESN150 |
290 |
150 |
160 |
2000~5000 |
4000 |
16 |
