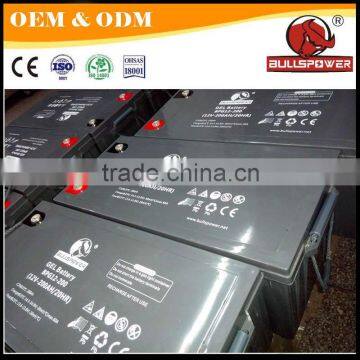

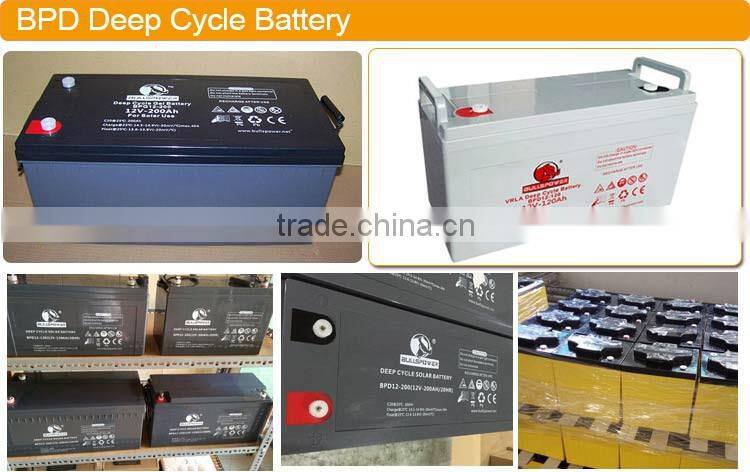

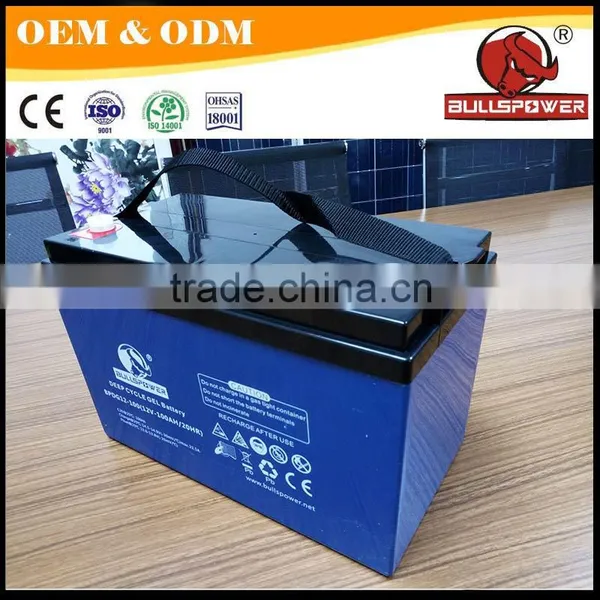

100ah light weight battery 12V 100ah solar power electric accumulator
◊◊All of our products must pass 55 QC inspection points before shipment.
solar energy gel storage battery Range Summary
The Solar series is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel. This series is suited for energy storage for renewable energies such as PV, wind turbine power systems and CATV.
solar energy gel storage battery Features and Benefits
· 12 years float life at 20°C
· Up to 5 years design life at renewable energy applications according to IEC61427
· Wide operating temperature range from -15°C to 60°C
· Nano gel electrolyte eliminate the acid stratification and prolong cycle life
· Round trip efficiency as high as 85%.
· Thick positive flat plate design with high Tin low Calcium alloy and high density paste
· Low self-discharge rate and long shelf life (9 months at 25°C)
· Excellent deep discharge recovery capability
Construction
· Positive plate – Thick high Sn low Ca grid with high density paste
· Negative plate – Over designed capacity to overcome sulphation at low SOC
· Separator – Advanced AGM separator
· Electrolyte – Dilute high purity sulphuric acid with nano gel
· Battery container and cover – ABS
· Pillar seal – 100% factory tested, proven two layers epoxy resin seal
· Relief valve – Complete with integrated flame arrestor

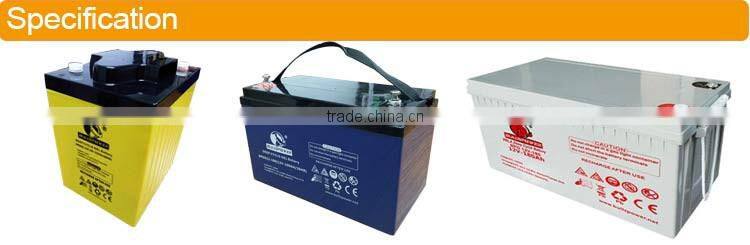

| Type | Nominal Voltage (V) | Rated Capability (Ah) ,20HR | Length (mm) | Width (mm) | Height(mm) | Total Height (mm) | Approx. Weight (Kg) | Terminal type |
| BPD6-200 | 6 | 200 | 306 | 168 | 220 | 225 | 30.5 | T5 |
| BPD6-210 | 6 | 210 | 260 | 180 | 247 | 252 | 30 | T5 |
| BPD6-220 | 6 | 220 | 306 | 168 | 220 | 225 | 32 | T5 |
| BPD6-225 | 6 | 225 | 243 | 187 | 275 | 275 | 31.5 | T5 |
| BPD6-310 | 6 | 310 | 295 | 178 | 354 | 360 | 46 | T5 |
| BPD6-380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | T5 |
| BPD8-200 | 8 | 200 | 260 | 182 | 295 | 301 | 39.5 | T5 |
| BPD12-20T | 12 | 20 | 181 | 77 | 167 | 167 | 6.1 | T1 |
| BPD12-24 | 12 | 26 | 166 | 175 | 126 | 126 | 8.5 | T1 |
| BPD12-26 | 12 | 26 | 165 | 126 | 174 | 179 | 8.7 | T1 |
| BPD12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | T3 |
| BPD12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.3 | T3 |
| BPD12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16.8 | T3 |
| BPD12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.5 | T3 |
| BPD12-75 | 12 | 75 | 260 | 169 | 211 | 215 | 25 | T3 |
| BPD12-85 | 12 | 85 | 260 | 169 | 211 | 215 | 26.1 | T3 |
| BPD12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.5 | T3 |
| BPD12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.5 | T3 |
| BPD12-110 | 12 | 110 | 331 | 176 | 214 | 220 | 33.5 | T4 |
| BPD12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5 |
| BPD12-135 | 12 | 135 | 341 | 173 | 283 | 288 | 41.5 | T5 |
| BPD12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 46 | T4 |
| BPD12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | T4 |
| BPD12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.8 | T4 |
| BPD12-210 | 12 | 210 | 522 | 240 | 219 | 225 | 66 | T5 |
| BPD12-240 | 12 | 240 | 520 | 269 | 203 | 209 | 71 | T5 |
| BPD12-260 | 12 | 260 | 520 | 268 | 220 | 226 | 77 | T5 |
Why choose Bullspower?
1. Professional OEM & ODM service
2. Outstanding design and R&D team
3. Best quality control--55 QC checking points
4. Small quantity order / trial order accepted
5. Excellent quality and 24 hours after-sales service
6. Quality guarantee 1-3 years varies from different series
7. Diversified payment terms TT, L/C, Western Union, Paypal for your selection
8. Protection of your sales area, ideas of design and all your private information
9. Welcome to inquiry, welcome to visit our factory

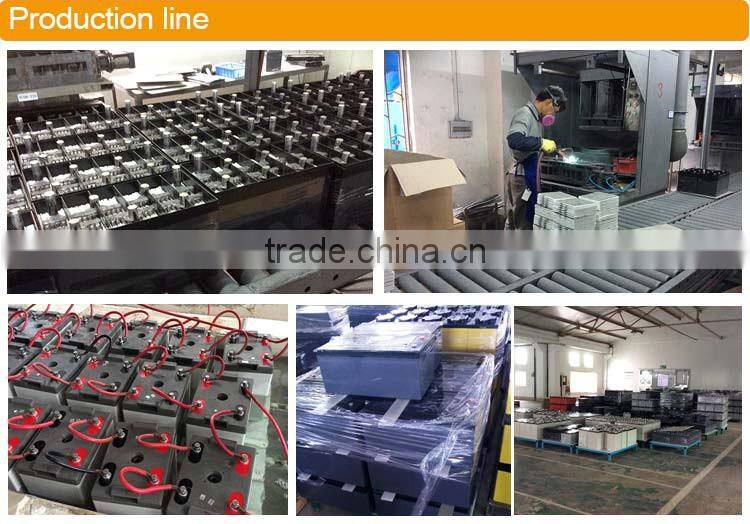

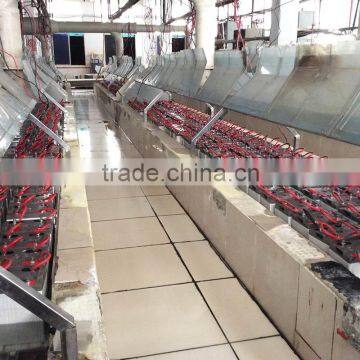

Foshan factory-VRLA battery
.People:500
.Annual production capacity:3.5 million KVAH
.Annual output value:40 Million RMB
.Product range:VRLA battery,AGM battery,Deep cycle battery,Gel battery,Front terminal battery,Long life battery
More products please click
3W-300W Mono Solar panel
3W-300W Poly Solar panel
Please contact us as following contact information.
Contact: Melody Wu
Telephone:86-752-2819469
skype:sales03melody Whatsapp: 0086 13143069669
QQ number: 674004367
Country/Region:China(Mainland)
Province/State:Guangdong
City:Huizhou
