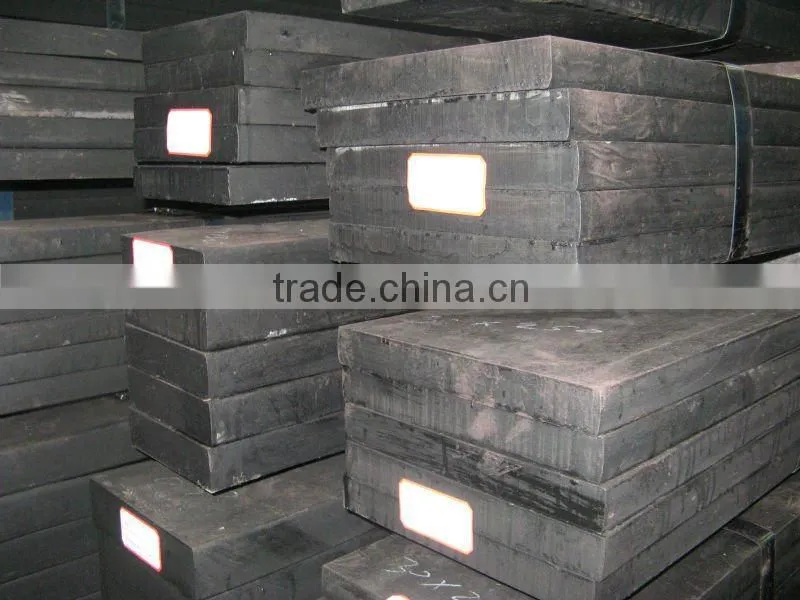

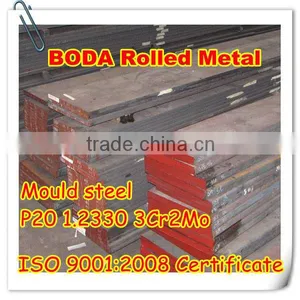

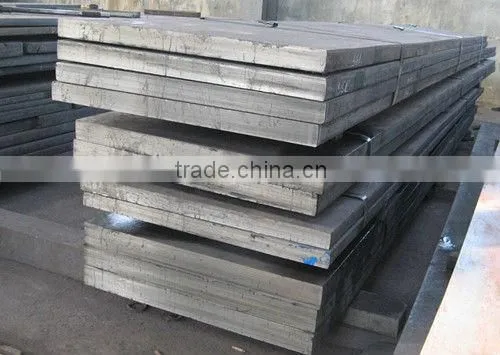

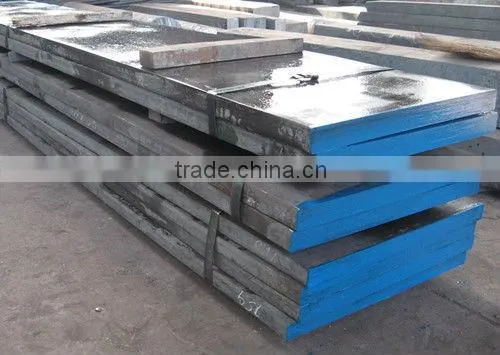

Higher Hardness, Plastic Mould Steel AISI P20
Negotiable
MOQ: 5 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Grade:
plastic mould steel
Standard:
AISI, ASTM, DIN, GB, JIS
Thickness:
12-60mm(rolled)
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Grade
plastic mould steel
Standard
AISI, ASTM, DIN, GB, JIS
Thickness
12-60mm(rolled)
Width
200-610mm
Length
2000mm-6000mm
Place of Origin
Hubei, China
Brand Name
Boda
Model Number
p20
Application
tool steel bar
Technique
Hot Rolled
Special Use
Mold Steel
plastic mould steel AISI P20
1.Chemical Composition(%)
| C | Si | Mn | P | S | Cr | Mo |
| 0.28-0.40 | 0.20-0.80 | 0.60-1.00 | ≤0.03 | ≤0.03 | 1.40-2.00 | 0.30-0.55 |
2. Available sizes
Hot rolled flat bar Thickness 12-60mm width:40-610mm
3 Properties
Supplied in the hardened and tempered condition, no requiring further heat treatment. Good machinability, polishability and hardenability.
4 Applications
it is widely used for manufacture of injection moulding, thermoplastic blow up dies. and die casting industries.
5 Technique
EF or ESR + hot rolled + prehardened or annealed
7. Delivery condition
prehardened:330-280HBS
annealed hardness ≤229HBS
8 Surface
black/peeled/turned/grinding/polishing
9 Process
Furnce material-melting-steel ingot-forging-forging billet-heating-rolling-slow cooling-collecting-annealing-finishing-inspection-package-shipping
