O1 mould steel material1 In stock
2 annealed + black
3 EAF/ERS hot rolled
4 ISO9001:2008 certificate

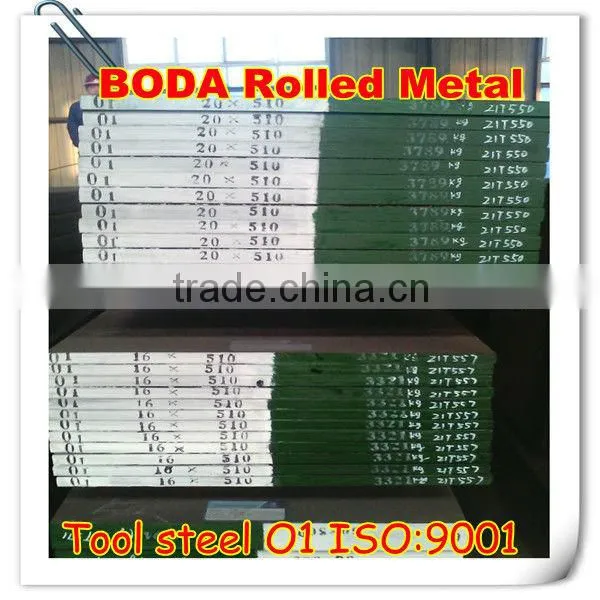

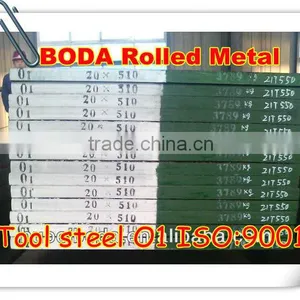

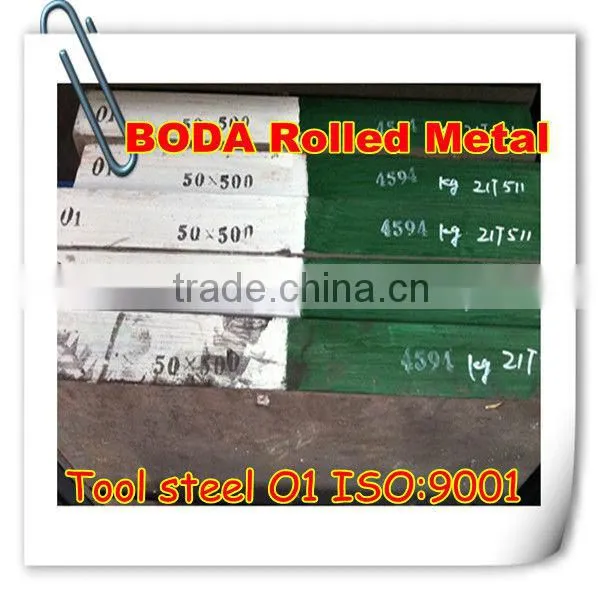

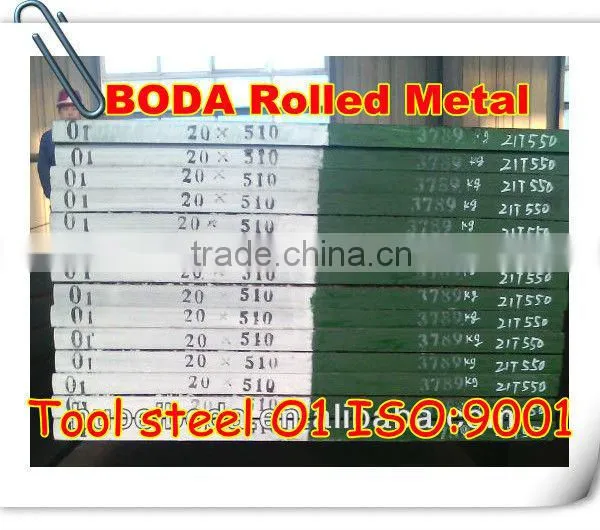

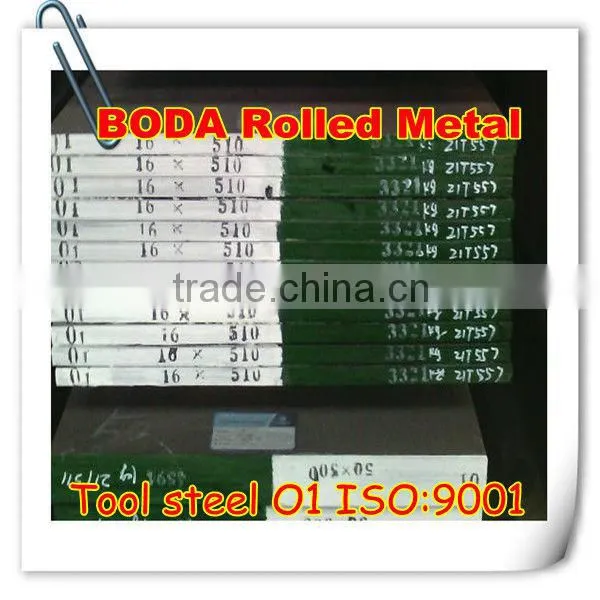

O1 mould steel material
Steel grade: DIN1.2510 GB 9CrWMn AISI O1
1.Chemical Composition(%)
| Steel grade | C | Si | Mn | P | S | Cr | W | V |
| 9CrWMn | 0.85-0.95 | ≤0.40 | 0.90-1.20 | ≤0.03 | ≤0.03 | 0.50-0.80 | 0.50-0.80 | - |
2. Available sizes :
Rolled flat bar Thickness 112-60mm width:200-610mm Rolled Round bar dia. 50-130mm
Forged flat bar Thickness:60-200mm width:100-800mm Forged round bar dia. 50-400mm
3 Annealed.hardness :≤229HBS
4 Properties
• Good wear resistance, and good hardenability
• Resistance to plastic deformation
5 Applications
It is universally used for manufacture of cold punching mould, blanking and stamping dies, etc.
Furnce material-melting-steel ingot-forging-forging billet-heating-rolling -slow cooling-collecting-annealing-finishing-inspection-package-warehousing
8. Delivery condition
Annealed + black/peeled/turned/grinding/polishing surface option, Ultrosonic test accord with SEP 1921-84 class c/c
