Specifications
Alloy Tool steel DIN1.2510/ O1/9CrWMn/SKS31 in stock
2 annealed+black
3 hot rolled
4 ISO9001:2008
Alloy Tool steel DIN1.2510/ O1/9CrWMn/SKS3
steel grade: DIN1.2510 O1 9CrWMn SKS3

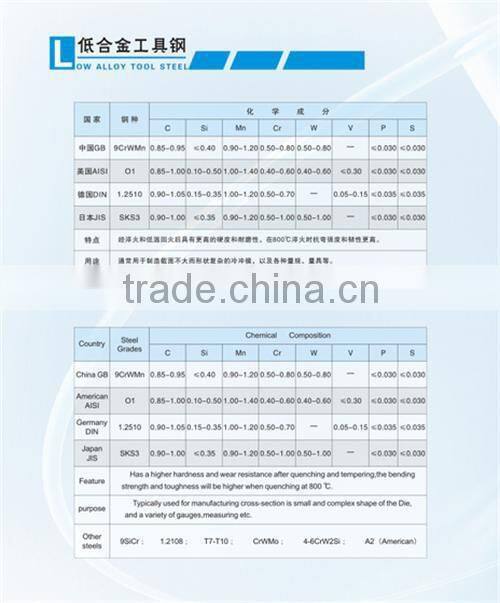

1.Chemical Composition(%)
Standard |
Grade | C | Si | Mn | P≤ | S≤ | Cr | Mo | V | W |
| DIN | 1.2510 | 0.90-1.05 | 0.15-0.35 | 1.00-1.20 | 0.035 | 0.035 | 0.50-0.70 | - | 0.05-0.15 | - |
| GB | 9CrWMn | 0.85-0.95 | ≤0.40 | 0.90-1.20 | 0.030 | 0.030 | 0.50-0.80 | - | 0.50-0.80 | |
| AISI | O1 | 0.85-1.00 | 0.10-0.50 | 1.00-1.40 | 0.030 | 0.030 | 0.40-0.60 | - | ≤0.30 | - |
| JIS | SKS3 | 0.90-1.00 | ≤0.35 | 0.90-1.20 | 0.030 | 0.030 | 0.50-1.00 | - | - |
0.50-1.00 |
2.Size availability:
Rolled flat bar Thickness 12-60mm width:200-610mm
3 Annealed hardness :≤255HBS
4 Characteristic
• higher hardness and wear resistance after quenching and tempering
• the bending strength and toughness will be higher when quenching at 800• high termperature anti-oxidation
• after quenching and polishing anti-corrosion ability is very good and heat deformation small
5 Applications
Suitable for manufacture various requirements of high-precision, long life cold work mould,knives tool and measuring tools,like shape of the punching die,cold extrusion die,roll threaded wheel,twist thread board,cold shear knives and precision mearuring tools
7 Process
Furnce material-melting-steel ingot-forging-forging billet- heating-rolling-slow cooling-collecting-annealing-finishing(straightening-scouring-surface conditioning)-inspection-packing-shipping
Melting and rolling
Annealed + black/peeled/turned/grinding/polishing surface upon customers' special request, Ultrosonic test accord with SEP 1921-84 class c/c
In stock
Annealed+black
