Specifications
2344 forged alloy tool steel1 In stock
2 annealed + black
3 EAF/ERS hot rolled
4 ISO9001:2008 certificate

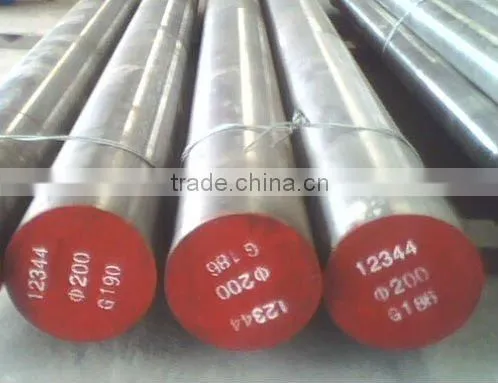

2344 forged alloy tool steel
Steel grade: GB4Cr5MoSiV DIN 1.2344 AISI H13 JIS SKD61
1.Chemical Composition(%)
| Steel Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13/ 4Cr5MoSiV1/1.2344 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.03 | ≤0.03 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
2.Size availability:
Rolled flat bar Thickness 12-60mm width:200-610mm Rolled Round bar dia. 50-130mm
Forged flat bar Thickness:60-200mm width:100-800mm Forged round bar dia. 50-400mm
3.Hardness after annealed:≤235HBS
4 Properties
1 excellent high temp. Strength and thermal fatigue resistance
2 High ductility and toughness
3 good resistance to heat checking, cracking, hot wear and plastic deformation.
5 Applications
It is widely used for manufacture of casting dies, extrusion dies and forging dies.
7 Process
Furnce material-melting-steel ingot-forging-forging billet-forging material-slow cooling-collecting-annealing-finishing-inspection-package-warehousing
8. Delivery condition
Annealed + black/peeled/turned/grinding/polishing surface upon customers' special request, Ultrosonic test accord with SEP1921-84 class c/c
We are professianal manufacturer and supplier of large varieties of alloy and specials steels including cold work tool steel, hot work tool steel, high speed tool steel and plastic mould stee etc. Just let us know your required specifications, it will be our big pleasure to offer you our services.
