Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > Inverter TIG Welding TIG-315A TIG-250A TIG-400A

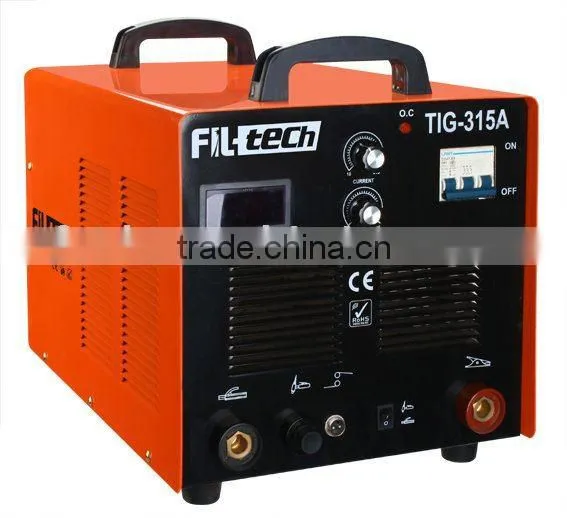

Inverter TIG Welding TIG-315A TIG-250A TIG-400A

Inverter TIG Welding TIG-315A TIG-250A TIG-400A thumbnail-1
Inverter TIG Welding TIG-315A TIG-250A TIG-400A photo-1
US$ 100 - 500 MOQ: 30 Packs
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FIL-TECH
Model Number:
TIG-315A
Contact Supplier Request Quote Chat Now
Taizhou Feida Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FIL-TECH
Model Number TIG-315A
Arc Current 315
Pulse Frequency 50
Pilot Arc Current 315
Rated Duty Cycle 60%
Dimensions 650*450*650
Usage tig mma

Specifications

Inverter TIG Welding
CE ISO9001



Inverter TIG Welding

Detailed Product Description

*with energy-saving MOSFET power switch and advance inverter technology,saving energy efficiently without power frequency noise;

*accurate control of current and characteristic  of excellent constant current by taking  advantage of PWM technology

*perfect functions of over current,over heat,over /under voltage

*excellent design for portable use

*suitable for all kinds of electrodes on carbon steel,stainless steel,alloy steel .etc

*MMA and Argon Arc welding machine



ITEM
 TIG-250A TIG-315A TIG-400A
 Input Voltage 3-380V 3-380V 3-380V
Frequency 50/60Hz 50/60Hz 50/60Hz
Rated Input Capacity 9.5KVA 13KVA 18.2KVA
Power Factor cosφ0.93 cosφ0.93 cosφ0.93
Max No-load Voltage 60V 60V 60V
Current Range 20-250A 20-315A 20-400A
Rated Duty Cycle 60% 60% 60%
Usable Electrode 2.5-4.0mm(MMA) 2.5-4.0mm(MMA) 2.5-5.0mm(MMA)

Insulation Class		 F F F
Protection Degree IP21S IP21S IP21S
Dimension 55.5×23.5×39CM 59.5×39.5×50.5CM 62.5×39.5×53.5CM
Weight 15KG 24KG 28KG



 Inverter TIG Welding TIG-315A TIG-250A TIG-400A
