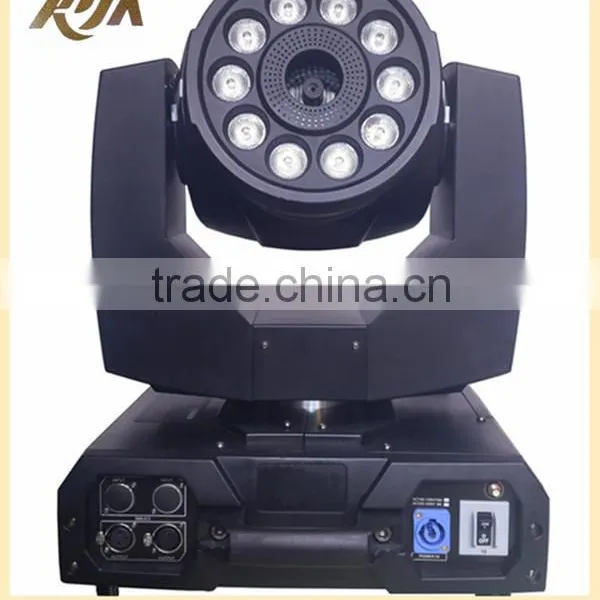

Powerful Party Effect Light 1500w LED Moving Head Smoke Fog Machine

1. Voltage: AC 220V-240V 50-60HZ

2. Electric Current: 8A/250V

3. Power: 1500W

4. Pre-Heating Time: 4Min

5. Smoke Output: 20000cuft/min

6. Tank Capacity: 1.3L

7. DMX Channel: 10CHs

8. LED Quantity: 10x 8W LEDs RGBW

9. Spraying ways: Vertically and horizontally

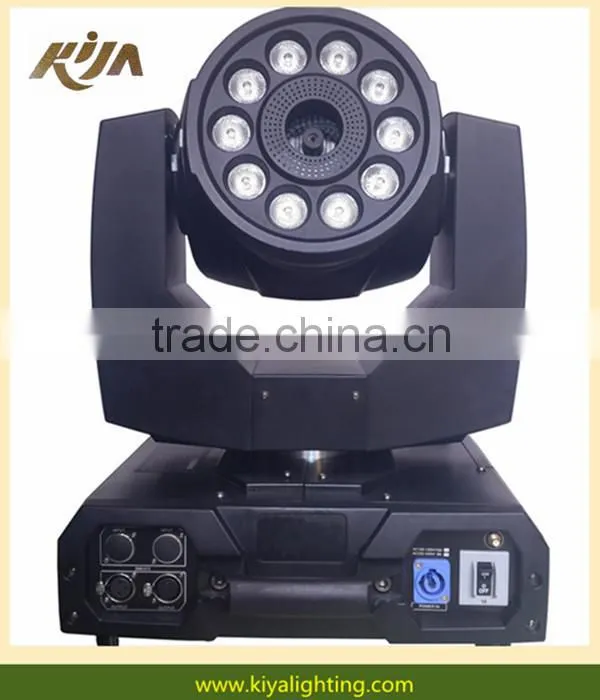

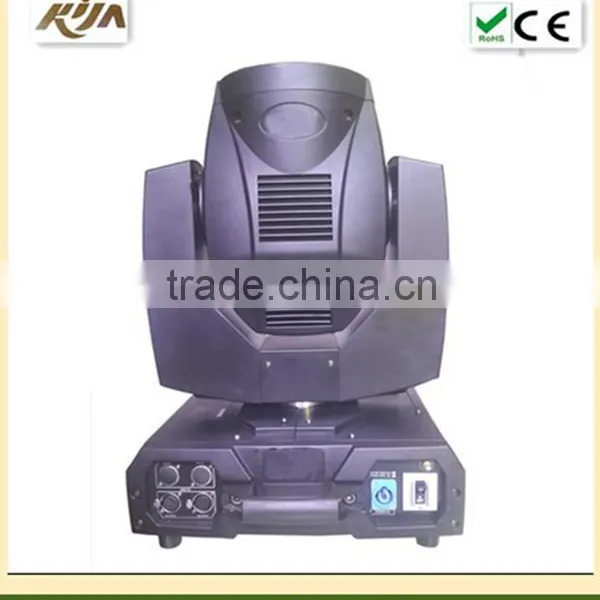

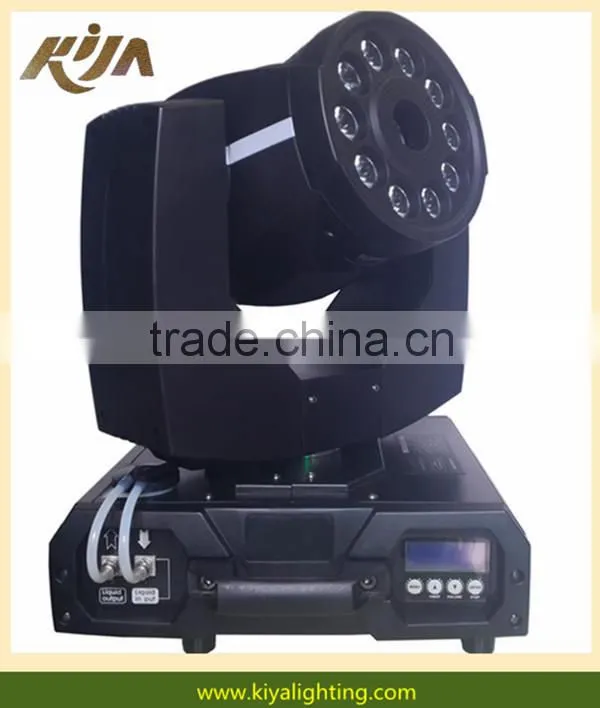

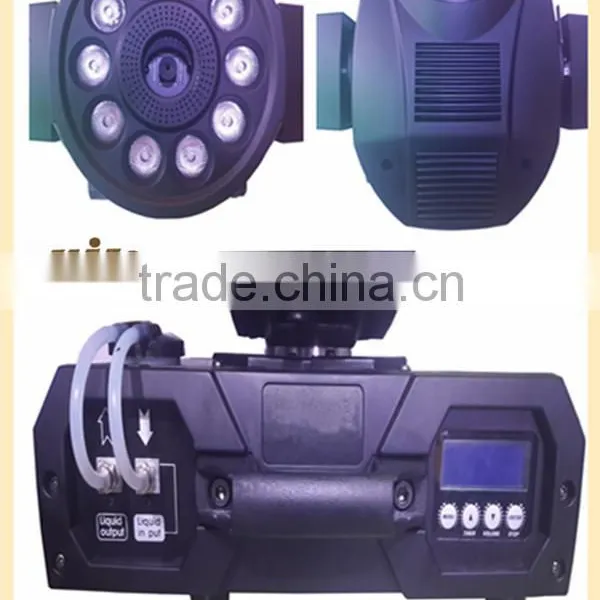

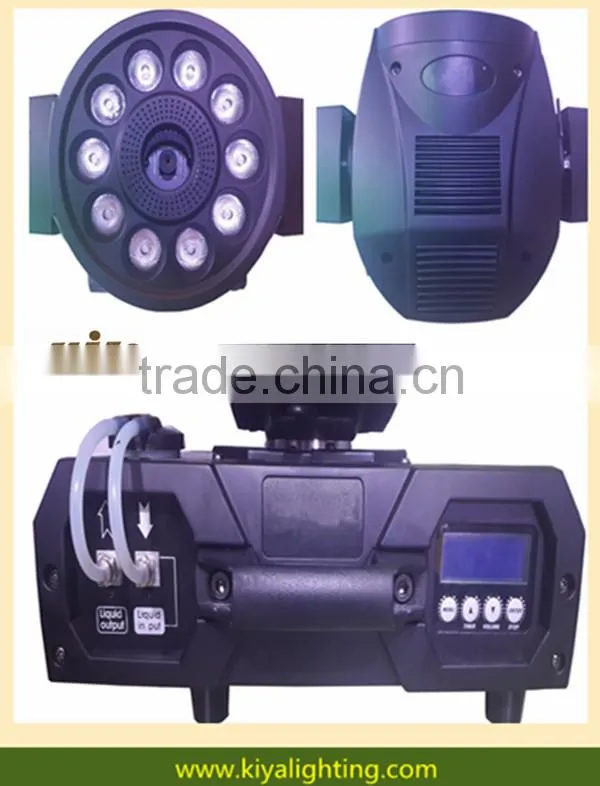

Product show

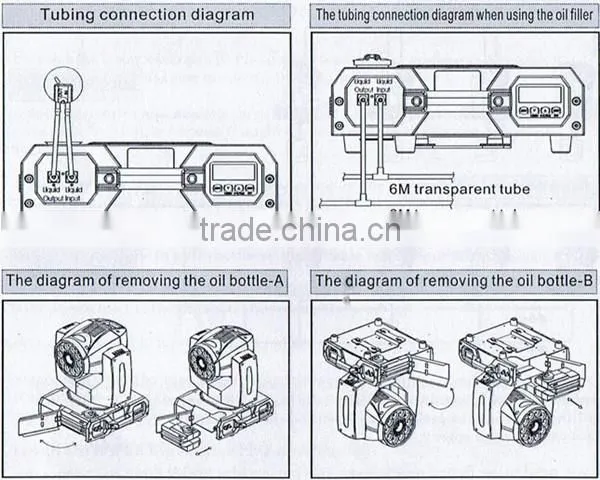

1.Connect the DMX controlling line ,open the base of the fixture ,and remove the oil tank to add fluid ,carefully not to exceed the mark on the tank to prevent oil from spilling out,and then press the cap down and check tightly ,finally place the oil tank back carefully and cover it .

2. If you need to use fixture upside down, just put machine upside down and remove the tank ,put the tank upside down and then re-inserted into the base.

3. Plug in the power cord ,turn on the power switch ,then oil bottles displaying in red is in heating ,set address code, waiting for about seven minutes ,When the machine is well heated ,oil bottles will be displayed in blue ,the LCD display can also be observed to understand the heating state of the machine .

4.Promote push rod of the console ,the machine will begin to spray, the pump may emit shaking sound in the first smoke slowly ,Which is a normal phenomenon.

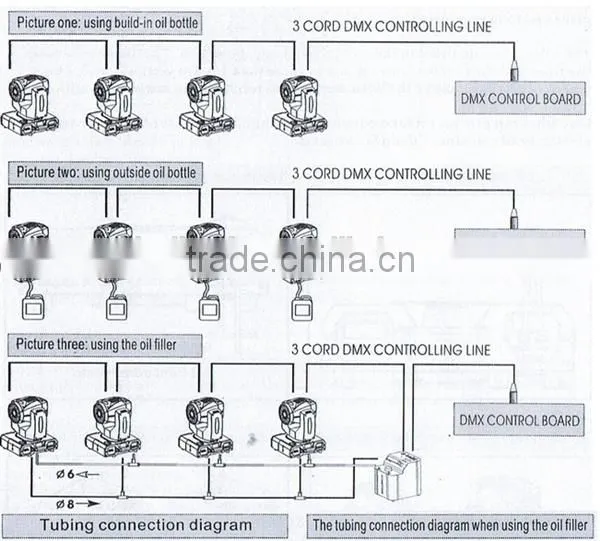

5. Different ways of using several pieces together :picture one :using build-in oil bottle ;picture two :connect the machine with any outside oil bottle ;picture three :using the oil filler ;no need to fill the fluid in the height ,suitable for being used in the high place and long-term using .

6. The oil can be supported in the vertical height of about 10m.The distance between the filler and the first machine can not be more than 15 m(in vertical state).The length of oil pipes among the latter fixtures can reach 20m in horizontal state .

7.  One filler can provide oil for 4-6fixtures and the address code of the filler and other moving head machine should be the same.

Factory Picture

Production Line

Exhibition and Our Team

 1) Conventional packaging: Export package or with flight case.

 2) Customized packaging: We could offer the design packaging service if you have your special request.

 DHL, UPS, Fedex, EMS ... as your require.
