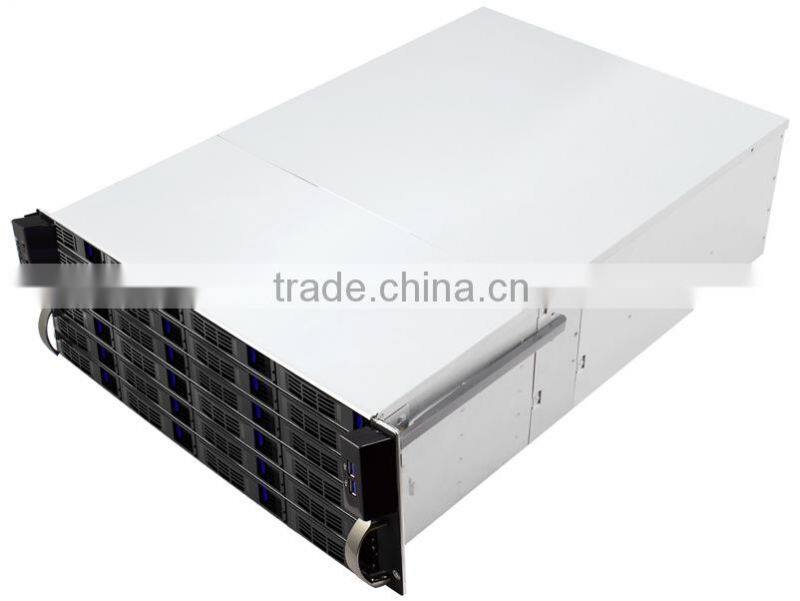

ED424H65-T3 4U Rackmount Server Case with 24 Hot-Swappable SATA/SAS Drive Bays
Features:
. ED424H65-T3 4U Rackmount Server Case with 24 Hot-Swappable SATA/SAS Drive Bays
. Hot Swappable
. Low profile slots
Specification:
1) ED424H65-T3 4U Rackmount Server Case with 24 Hot-Swappable SATA/SAS Drive Bays
2) Details:
Model No.: | ED424H65-T3 | |
Description: | 4U 650mm depth, Hot Swap 24 x 3.5”HDD, 1 x 2.5” HDD | |
Material: | 1.2mm SGCC | |
M/B Form Factor: | 12” x 13”, 12” x 10.5”, 12” x 9.6”, 9.6” x 9.6”, 6.7” x 6.7” | |
Processor: | DP Xeon (Intel), DP Opteron(AMD), Core (Intel) | |
Support Backplane: | Sata III/mini sas | |
Expansion Slots: | 7 | |
System Cooling (Shockproof): | Middle: 4 x 8025mm PWM(hot swap); Rear: 2 x 6026mm | |
Chassis Dimension: | 650mm(D) x 430mm (W) x 176mm (H)/D25.6” x W16.9” x H7.0” | |
Drive Bay: | 3.5” (Hot Swap) | 24 |
2.5” | 1 | |
Power Supply: | Standard 2U Power Supply, ATX power supply, Redundant 2U 1+1 power supply | |
Rear Window: | Standard | |
Front Panel: | ||
Front Control: | Power on/off, System Reset, Alarm Reset | |
Indicator: | Power LED (x1), HDD Activity LED (x1), LAN Activity LED (x2), Fan/Power Failure LED | |
Ports: | USB 3.0 x 2, VGA (option) | |
Products Overview:
All 4U Models (Hot swap):
Model No.: | Size: | Drive Bay: | ||||
ED408H40 | 400mm*430mm*176mm/15.7” x 16.9” x 7.0” | 3.5” (hot swap) | 8 | |||
ED408H65 | 650mm*430mm*176mm/25.6” x 16.9” x 7.0” | 3.5” (hot swap) | 8 | |||
CD-ROM | 3*5.25”CD-ROM | |||||
ED410H65 | 650mm*430mm*176mm/25.6” x 16.9” x 7.0” | 3.5” (hot swap) | 10 | |||
CD-ROM | 3*5.25”CD-ROM | |||||
ED412H40 | 400mm*430mm*176mm/15.7” x 16.9” x 7.0” | 3.5” (hot swap) | 12 | |||
ED416H48-T3 | 480mm*430mm*176mm/18.9” x 16.9” x 7.0” | 3.5” (hot swap) | 16 | |||
CD-ROM | 2*5.25”CD-ROM | |||||
ED416H55-T3 | 550mm*430mm*176mm/21.7” x 16.9” x 7.0” | 3.5” (hot swap) | 16 | |||
CD-ROm | 2*5.25”CD-ROM | |||||
ED416H65-T3 | 650mm*430mm*176mm/21.7” x 16.9” x 7.0” | 3.5” (hot swap) | 16 | |||
CD-ROM | 2*5.25”CD-ROM | |||||
ED420H48-T3 | 480mm*430mm*176mm/18.9” x 16.9” x 7.0” | 3.5” (hot swap) | 20 | |||
2.5” | 2 | |||||
CD-ROM | 1 x slim DVD | |||||
ED420H55-T3 | 550mm*430mm*176mm/21.7” x 16.9” x 7.0” | 3.5” (hot swap) | 20 | |||
2.5” | 2 | |||||
CD-ROM | 1 x slim DVD | |||||
ED420H65-T3 | 650mm*430mm*176mm/25.6” x 16.9” x 7.0” | 3.5” (hot swap) | 20 | |||
2.5” | 2 | |||||
CD-ROM | 1 x slim DVD | |||||
ED424H48-T3 | 480mm*430mm*176mm/18.9” x 16.9” x 7.0” | 3.5” (hot swap) | 24 | |||
ED424H55-T3 | 550mm*430mm*176mm/21.7” x 16.9” x 7.0” | 3.5” (hot swap) | 24 | |||
2.5” | 1 | |||||
ED424H65-T3 | 650mm*430mm*176mm/25.6” x 16.9” x 7.0” | 3.5” (hot swap) | 24 | |||
2.5” | 1 | |||||
Packing: 1pcs/carton, neutral packing+thick EPE
Delivery: 2-4 weeks after order confirmation
Shipping: Oversea, Airway, Express
Products Range:
1) Server Case: 1U, 2U, 3U, 4U, 6U
2) Power Supply: ATX Power supply, Flex power supply, Micro power supply, 1U power supply, 2U power supply, Redundant power supply
3) KVM
4) Riser Card
5) HDD case
6) Rack rail slides
7) RAID
8) Cabinet
DENESE was founded in 2005. Now it is located in international electronics manufacturing city of Dongguan which is including advanced information technology and the facilitated transportation .
EDNSE is the strategy brand in DENESE Group.
As a manufacturer which specializes in server system equipment,we input series of system equipments to the field of servers for 8 years.Especially,the rack-mount chassis have reached the most advanced level in China.
Our company mainly engage in the rack-mount chassis e.g. 1U,2U,3U,4U,5U,blade architecture,ITX and tower chassis.We also operate server related products such as RAID card,expansion card,network storage, KVM,cooling fan,power supply,riser card,HDD support,HDD bracket,CPU cooler and so on.In addition,our company provide hot-swappable and non-hot-swappable solution.We design,customize and produce products base on the needs of clients.(ODM/OEM)
Our products are exported to Southeast Asia,Europe,North America,Middle East,the world’s more than 40 countries and regions.
Our goal is creating the new future by science and technology.Innovation and renovation is our soul .We strive to crate more human,convenient and fast, intelligent products which we focus on providing the best customer experience.Our products will set up strong data information center for you.You will build a better future with our service.
1) What is minimum quantity for your products?
50pcs
2) What is advantage for your products?
Good quality, attractive price, punctual delivery
