EDNSE 4U ED424H65 server chassis server case with lock Features & Benefits 1.4U 650mm depth, ideal for IDC/High Perfromance Computing Server/NAS Server 2.Support Extended (12"x13"),(12"x10.5") ,(12"x9.6") M/B 3.Support Standard ATX power/ Redundant 2+1 power 4.Optional front VGA port for on-site monitoring 5.Modular design in HDD cage/front fan/backplane for easy maintenance 6.Fully utilized space to support 24 x 3.5" HDD |
Specification | |||
Order Code | Generality | ||
ED424H65 | Metal Material | SGCC | |
Description | Metal Thickness | 1.2 mm | |
4U 650mm depth,Hot-swap 24x 3.5"HDD | Metal Material Type | ABS | |
Expansion Slots | |||
M/B Form Factor | FF | 7 | |
(12"x13"),(12"x10.5"),(12"x9.6") | System Cooling(Hot-Swap) | ||
Processor | Middle | 4 x 8025 mm hot-swap | |
DP Xeon(Intel),DP Opteron(AMD) | Rear | 2 x 8025 mm | |
Core(Intel) | Rear Window | ||

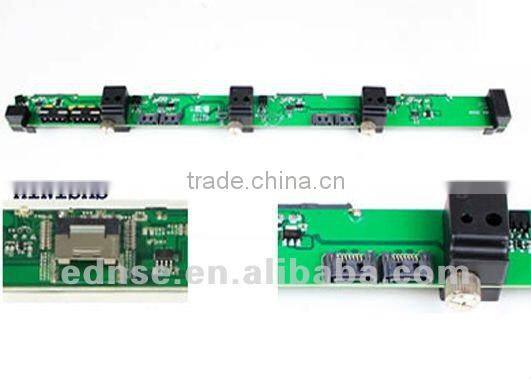

Support Backplane | Standard | ||
MINISAS | Front Panel | ||
Chassis Dimension | Front Control | Power On/Off | |
D x W x H (mm) | 650x430x176 | System Reset | |
D x W x H (inch) | 25.6''x16.9''x7.0'' | Alarm Reset | |
Drive Bay | Indicator | Power LED (x1) | |
Hot-Swap 3.5" and 2.5" | 24 (Mini SAS ) | HDD Activity LED (x1) | |
CD-ROM | LAN Activity LED (x2) | ||
Fan / Power Failure LED | |||
Power Supply | Ports | USB2.0 x 2 | |
Standard ATX power/ Redundant 2+1 power | VGA ( option) | ||
Shipping Information* | |||
Net Weight (Chassis Only) | 15 Kg | ||
Gross Weight (w/Packing) | 16.5 Kg | ||
Cubit Feet | 0.147CBM | ||
Container Information | 20' : 190pcs | ||
40' : 421pcs | |||
40'H : 476pcs | |||

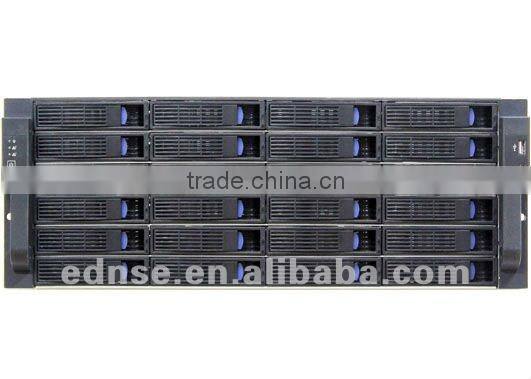

Front elevation
Side view

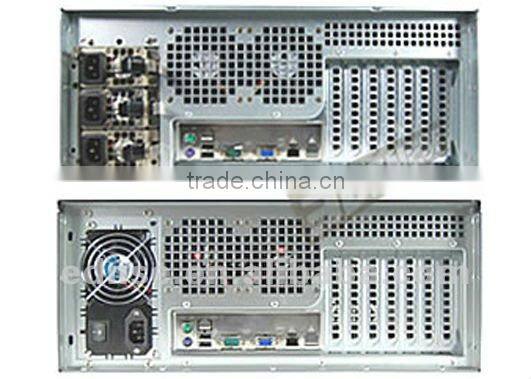

Rear view
Vertical view
1u, 2u, 3u, 4u, server case with lock
We also provide related cases:
Raid card
Power supply
Sliding rails
Cables
EDNSE 4U ED424H65 server chassis server case with lock

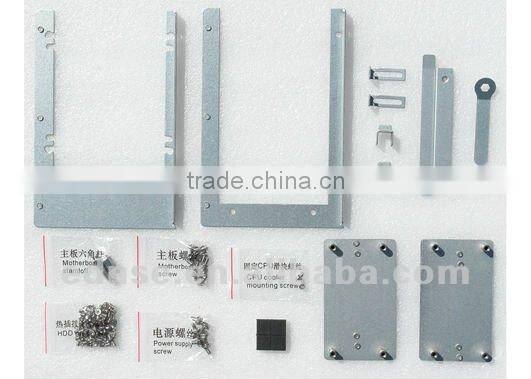

Accessories display chart
