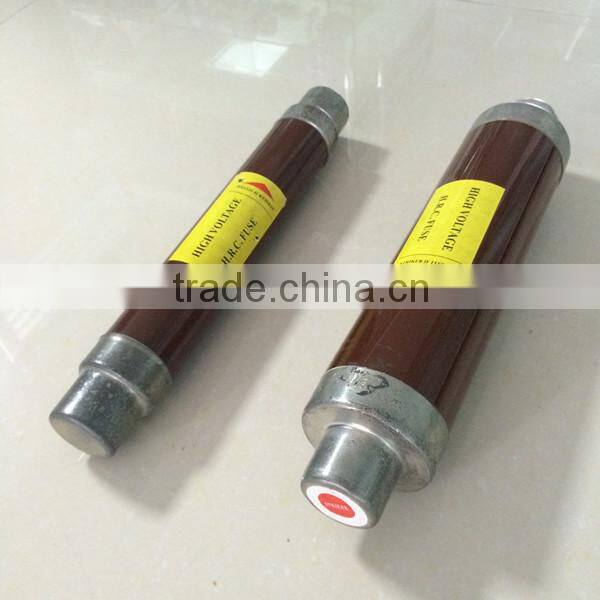

Home > Electrical & Electronics > Breaker & Protector > Fuse > Outdoor High Voltage Fuse/Cut Out Fuse/High Voltage Fuse
US$ 3.5 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Yinda
Model Number:
XRNT
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai Wenzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Yinda
Model Number
XRNT
Usage
High Voltage
Breaking Capacity
High
Safety Standards
IEC
High Voltage Fuses,high-voltage fuse,HV current limiting fuse,medium voltage fuse,drop out fuse
XRNT(SDO.J,SDL.J,FDL.J,SFL.J,SKL.J,SXL.J,SDM.J,SFM.J,SKM.J,SXM.J,SDQ.J,SFQ.J,SXQ.J)
we also have fuse links for use in air and in oil
Model S transformer protection high breaking capability high current limiting is suitable for eleectical power system of AC 50Hz,rated voltage 3.6~40.5kv,the rated current to 200A for protecting transformer and other power equipment from short-circuit overload;it also may use wth load switch,vacuum contact and so on.
This high-voltage fuse conforms to thenational standard GB15166.2standrad and the international electrical committee standard IEC60282 standard as well as the German DIN standard.
other type:
Model W high breaking capability high voltage current limited fuse for protection motor:XRNM1(WDF.O,WDN.O,)
Model F scope protectiom high breaking capability high voltage current limited fuse :FDL
Model XRNP voltage fuse transformer protection high breaking capability high voltage current limited fuse:XRNP
No. | Products model | Rated voltage (V) | Fuse body rated current (A) | Rated dropout current (A) | Overall dimension (mm) | Weight (g) | |||
Home | Abroad | Drawing no. 8.1 | ΦD | L | |||||
0901 | XRNT1 | SDO.J | 3.6 | 6.310,16,20,25,31.5,40 | 31.5 | 9.1 | 51 | 192 | 1.12 |
0902 | XRNT1 | SDL.J | 7.2 | 6.3,10,16,20,25,31.5,40,50,63 | 31.5 | 9.1 | 51 | 292 | 1.47 |
0903 | XRNT1 | SFL.J | 7.2 | 80,100,125,160 | 31.5 | 9.1 | 76 | 292 | 3.15 |
0904 | XRNT1 | SDL.J | 12 | 6.3,10,16,20,25,31.5,40 | 31.5 | 9.1 | 51 | 292 | 1.47 |
0905 | XRNT1 | SFL.J | 12 | 50,63,71,80,100 | 31.5 | 9.1 | 76 | 292 | 3.15 |
0906 | XRNT1 | SKL.J | 12 | 125 | 31.5 | 9.1 | 76 | 292 | 3.15 |
0907 | XRNT1 | SXL.J | 12 | 160200 | 31.5 | 9.1 | 88 | 292 | 4.15 |
0908 | XRNT1 | SDM.J | 24 | 6.31016202531.540 | 31.5 | 9.1 | 51 | 442 | 2.7 |
0909 | XRNT1 | SFM.J | 24 | 50637180100 | 31.5 | 9.1 | 76 | 442 | 4.5 |
0910 | XRNT1 | SKM.J | 24 | 125 | 31.5 | 9.1 | 76 | 442 | 4.5 |
0911 | XRNT1 | SXM.J | 24 | 160 | 31.5 | 9.1 | 88 | 442 | 5.4 |
0912 | XRNT1 | SDQ.J | 40.5 | 3.156.310162025 | 31.5 | 9.1 | 51 | 537 | 2.9 |
0913 | XRNT1 | SFQ.J | 40.5 | 31.540 | 31.5 | 9.1 | 76 | 537 | 5.51 |
0914 | XRNT1 | SXQ.J | 40.5 | 63 | 31.5 | 9.1 | 88 | 537 | 6.5 |
