Home > Products > Moulded case circuit breaker MCCB > 3p 4p 400A MCCB circuit breaker CM1electrical circuit breaker LWM8-630L

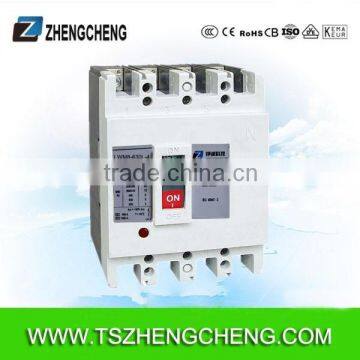

3p 4p 400A MCCB circuit breaker CM1electrical circuit breaker LWM8-630L
- 30000 Piece / Pieces per Month
- Ningbo
- T/T
Product Details
Brand Name: | ZHEGNCHENG | Model Number: | LWM8-630L | Type: | Moulded Case |
Poles Number: | 3 |
Product Description
Applications and functions
- Incoming and outgoing function in distribution systems
- Switching and protection devices for motors, transformers and capacitors
- Disconnect or units with features for stopping and switching off in an emergency mechanisms and terminal covers in conjunction with likable rotary operating.
- Available in the following versions.
- Power protection: the overload and short-circuit releases are designed for the protection of cable, leads and non-motor loads.
- Motor protection: the overload and short-circuit releases are designed for optimized protection and direct-on-line starting of induction squirrel-cage motors. The circuit breakers for motor protection are susceptible to phase failure and feature an adjustable trip class.
Instruction of type code
LWM8- 630L – 400 – 3
Series code
Breaking capacity
L: Standard breaking capacity
M: Medium breaking capacity
H: High breaking capacity
Rated current(A):
10,16,20,25,32,40,50,63(Frame A)
16,20,25,32,40,50,63,80(Frame B)
100,125,160,180,200,225(Frame C)
225,2520,315,350,400(Frame D)
400,500,630(Frame E)
630,700,800(Frame F)
Poles: 3:3P;4:4P
Technical specifications:
LWM8 series product accessory
- Body
- Plug-in connection
- Rear panel connection
- Auxiliary
- Alarm contact
- Shunt release
- Under-voltage release
- Rotary handle operating mechanism
- Rotary handle operating mechanism
- Electromagnetic operating mechanism
- Electric motor operating mechanism
Outline and installation dimensions
Why choose us
1. 9 years: ZhengCheng Group is founded in 2006.
2. cooperating companies: We have over 100 cooperating companies.
3. quality control: our defective products rate is 0.5%
4. economically price, exquisitely made.
5. adequate supply capacity, punctual delivery time.
6. best after sales service are provided.
Our company
Test center
Our certificates
Our workshop
Our warehouse
Customer and us
Quality control
Packing
Payment Methods
We accept 30% payment in advance, 70%balance payment before shipping.
We also accept L/C according to the order amount.
We can accept the payment by T/T, Western Union, Private Account, Cash,and others.
FAQ:
Q: Is sample available and free?
A: Free samples are available with small value; Large amount samples will be charged and the samples costs will be returned in further orders.
Q: What cerficated do you have?
A:We have CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,but specific time should based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for small order and by sea or by air for large quantity.
