Home > Products > Motor protection circuit breaker > 24-32A 3P Motor protection circuit breaker MPCB
24-32A 3P Motor protection circuit breaker MPCB
- 30000 Piece / Pieces per Month
- Ningbo
- T/T
Product Details
Brand Name: | Zhengcheng | Model Number: | LWM7 24-32A | Type: | Other, Motor protection |
Poles Number: | 3 |
Product Description
Application and function
Providing motor overload protection and short-circuit protection.
Instruction of type code
LWM7 - 2 - M 0.16
Series code
Frame code
2: 0.16-32A
3: 40-80A
Push button type
Max. Setting current range
0.1-0.16 0.16-0.25 0.25-0.4 0.4-0.63
0.63-1 1-1.6 1.6-2.5 2.5-4
4-6 6-10 9-14 13-18
17-23 20-25 24-32 25-40
40-63 50-80

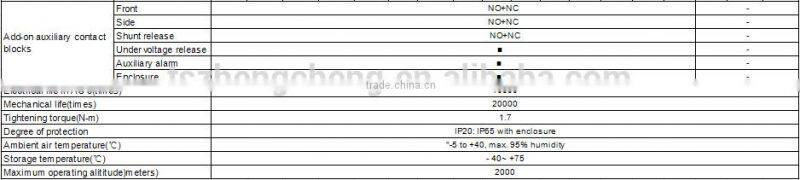

Technical specification
Why choose us
1. 9 years: ZhengCheng Group is founded in 2006.
2. cooperating companies: We have over 100 cooperating companies.
3. quality control: our defective products rate is 0.5%
4. economically price, exquisitely made.
5. adequate supply capacity, punctual delivery time.
6. best after sales service are provided.
Our company
Test center
Our certificates
Our workshop
Our warehouse
Customer and us
Quality control
Packing
Payment Methods
We accept 30% payment in advance, 70%balance payment before shipping.
We also accept L/C according to the order amount.
We can accept the payment by T/T, Western Union, Private Account, Cash,and others.
FAQ:
Q: Is sample available and free?
A: Free samples are available with small value; Large amount samples will be charged and the samples costs will be returned in further orders.
Q: What cerficated do you have?
A:We have CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,but specific time should based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for small order and by sea or by air for large quantity.
