Residual current circuit breaker RCCB 2P
- 50000 Piece / Pieces per Month
- Ningbo
- T/T
Product Details
Brand Name: | Zhengcheng | Model Number: | LWL6 | Type: | Residual Current |
Poles Number: | 2 |
Product Description
Instruction of type code
LWL6 – C 40 /30 – 2
Series code
Residual trip characteristic type
Rated current
Rated residual current
Number of poles: 2,4
Features
1. Electromagnetic type, voltage independent.
2. The handle being sealable or equipped with padlock bracket avoids dangerous operation changes(ON/OFF)
- The handle provides a clear indication of t he contact position
- Adequate printing of all data on the front provides long-term identification
Types
Both RCCBs and RCBOs are further divided into types depending on the operating function:
Type AC :For which tripping!:ensured for residual sinusoidal alternating currents, whether suddenly applied or slowly rising.
Type A:For which tripping is ensured for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowly rising.
Type S:For selectivity, with time-relay
Tripping sensitivity data
RCD with a rated residual current of maximum 30 mA are used for personnel, material and fire
protection, as well as for protection against direct contact.
RCD with a rated residual current of maximum 300 mA are used as preventative fire protection in
case of insulation faults
RCD with a rated residual current of 100mA co-ordinate with the earth system according to
the formula, to provide protection again indirect contacts
RCD with a rated residual current of 10 mA are primarily used in areas that reprent an increased risk for personnel

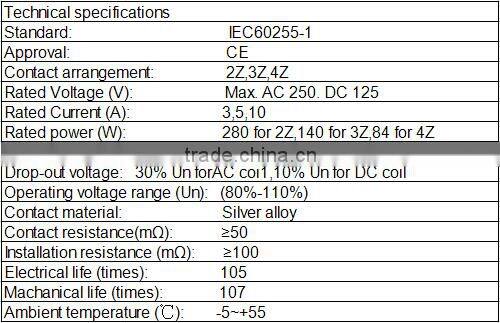

Technical Specifications

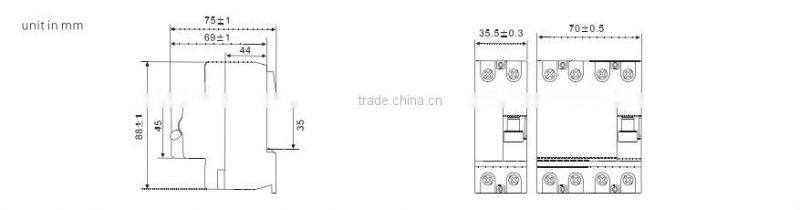

Outline and installation dimensions
Why choose us
1. 9 years: ZhengCheng Group is founded in 2006.
2. cooperating companies: We have over 100 cooperating companies.
3. quality control: our defective products rate is 0.5%
4. economically price, exquisitely made.
5. adequate supply capacity, punctual delivery time.
6. best after sales service are provided.
Our company
Test center
Our certificates
Our workshop
Our warehouse
Customer and us
Quality control
Packing
Payment Methods
We accept 30% payment in advance, 70%balance payment before shipping.
We also accept L/C according to the order amount.
We can accept the payment by T/T, Western Union, Private Account, Cash,and others.
FAQ:
Q: Is sample available and free?
A: Free samples are available with small value; Large amount samples will be charged and the samples costs will be returned in further orders.
Q: What cerficated do you have?
A:We have CE , SAA , RoHS , SGS , ISO...
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: It usually takes 7-25days after we confirm the payment,but specific time should based on the order quantity.
Q: How about the transport ?
A:We usually transport by Express for small order and by sea or by air for large quantity.
