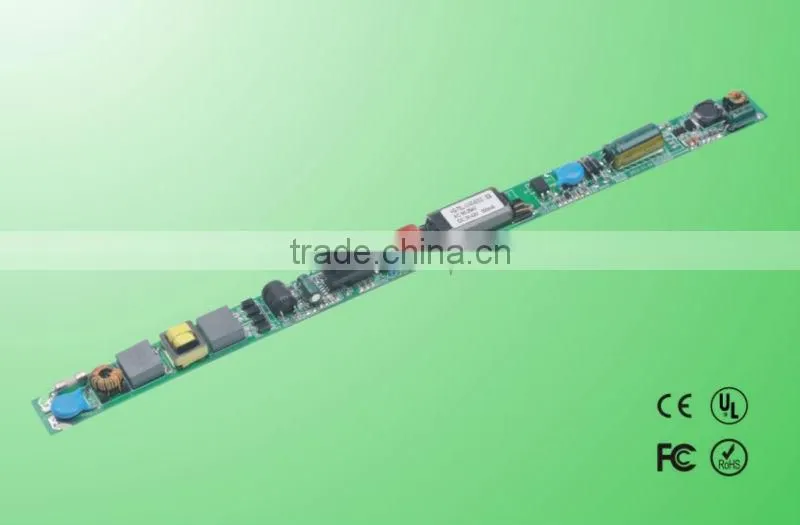

UL EMC 12-20W isolated T8 led tube no flicker driver UL LISTED

Specifications

led tube no flicker driver
1.Constant-current power supply
2.Size;280*17.2*10.5mm
3.PF:0.93
4:Certificate:CE,RoHS,FCC EM

LED Tube Interior Isolating Constant-current Power Series



led tube no flicker driver



Description



1:Constant current output

2.Hight efficiency,low power consumption led light driver

2:Conversion efficiency:>90%

3:Power factor (PF):>0.95

4:Protecting features of short circuit, open circuit, over-heat and overload,

5:Compatible with T8/10 LED tubes.

7.Quick assembly and easy installation led light driver

6:Approved by CE RoHS VDE TUV





Specification



Model	HG-T8L-WI40-500C
Output power	12-20W
Output voltage	DC30-40V
Series connection	10-12series
Output current	560-700mA
Input Voltage	AC100-240V
Frequency	47-63HZ
Conversion efficiency	85%
Power factor	0.93
Size	280*17.2*10.5mm
Application	Apply T8,T10 Interior isolating power supply
Protection	Over-heat,over-load,short-ciruit,open-circuit protection
Certificate	Approve by VDE,TUV,ETL,FCC,CE





Product presention









Product  Features



led tube no flicker driver





HG-T8-WI40-500C is a  flick-free constant current power suply designed for LED fluorescent lamp.





LED flick-free constant current power suply will be provided for the application of the special healthy lighting new lamps and lanterns of core technology power.





Passed the CE, UL, TUV, FCC, CQC, VDE certification.

.
