High quality of drinking water production line
Brief introduction of High quality of drinking water production line
This series of drinking water production line is specially used for water production line, and the whole process is automated, the machine combines the function of washing filling capping into one machine, and the machine adopts the hanging type conveying-bottle structure to make changing bottle model more convenient, faster. The main machine adopts the advanced PLC control technology, and the key electric elements also adopts the international famous brand.
Main technical specifications:
model |
CGF 16-12-6 |
CGF 16-16-6 |
CGF 18-18-6 |
CGF 24-24-8 |
CGF 32-32-8 |
|
production (500/m/bottle/h) |
3000-4000 |
4000-5000 |
5000-6000 |
8000-10000 |
10000-12000 |
filler valves |
12 |
16 |
18 |
24 |
32 |
rinser grippers |
16 |
16 |
18 |
24 |
32 |
capper header |
6 |
6 |
6 |
8 |
10 |
suitable bottle shape |
circular or square |
||||
bottle diameter(mm) |
φ50-φ90 |
||||
bottle height(mm) |
150-310 |
||||
Compressed air pressure(MPa) |
0.3-0.7 |
||||
washing medium |
aseptic water |
||||
washing water's pressure(MPa) |
0.25 |
||||
Total output (KW) |
2.2 |
2.2 |
3 |
4 |
6.2 |
oerall dimensions(mm) |
2350x1610x2250 |
2350x1750x2250 |
2480x1960x2250 |
3010x2180x2400 |
4000x2200x2500 |
(weight kg) |
2200 |
2500 |
2800 |
3500 |
6000 |

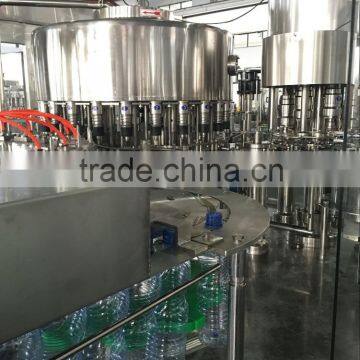

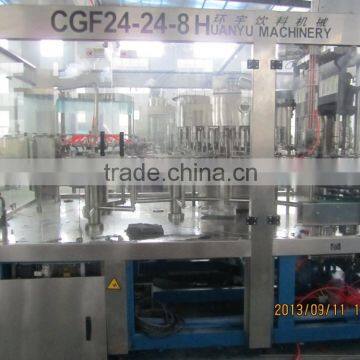

Detailed pictures about the pure water filling machinery
Zhangjiagang Huanyu Beverage Machinery CO.,LTD. is a key production enterprise specializes in producing and researching on foodstuff and beverage facilities. The company treat the market as the guide, technology as the leader, the quality as the main line, and the service as the guarantee, and we have build a perfect quality guarantee system. The company has the import and export right of technical works, and has the right of self-operation. The main lead products: the bottle-filling, barrel-filling and cup-filling of mineral water, juice, fruit juice, tea, various kinds of carbonated drink, wine etc various kinds of ebidle liquid. Among our facilities, the CGF series and DGF series, DCGF series are 3-in-1 machine bottling producing line. QGF series of barrel beverage producing line, and QHS series beverage mixing machine, have digest and absorb the advanced technology of German, Italy and Japan. The products are in good condition, and the quality is good. At the same time, we will provide technology consultation, design for the workshop, installation and testing, technique trainning service for the customers.
We sincerely hope to establish the reliable cooperation relationship with the customers from all over the world.
