Product Details
Condition: | New | Packaging Material: | Other, wooden crate | Automatic Grade: | Automatic |
Driven Type: | Electric | Place of Origin: | Jiangsu, China | Brand Name: | HUANYU |
Model Number: | DCGF |
Product Description
Specifications

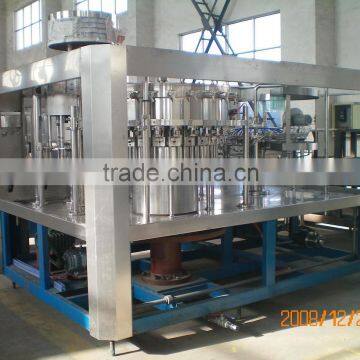

ThisCarbonated drink filling machine was used for carbonated drink, for example coca cola, Pepsi-cola etcCarbonated drink filling machine:
Usage: The Carbonated drink filling machine is used in production of polyester bottle-packing carbonated drink, such as Coca cola, Pepsi-cola, Sprite drink etc.
Characteristics: The carbonated drink filling machine can carry out washing bottle, filling and capping in one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient. The carbonated drink filling machine adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more easy. The main machine adopts advanced PLC control technology. The key electric elements are adopt international famous products.
Main technical parameter:
Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | |
Production capacity(500ml b/h) | 2000-3000 | 3000-4000 | 4000-6000 | 6000-8000 | |
Filling precision | <5mm(liquid level) | ||||
Filling pressure (MPa) | <0.4 | ||||
Gathers the fat bottle specification(mm) | bottle diameter:50-100 height:150-310mm | ||||
suitable cap shape | Plastic screw cap | ||||
Total power(kw) | 1.2 | 3.75 | 5.6 | 6.2 | |
Weight(kg) | 2500 | 3500 | 4500 | 6000 | |
Overall dimensions(mm) | 2250*1700*2300 | 2400*1960*2300 | 3010*2180*2400 | 4000*2250*2500 |
