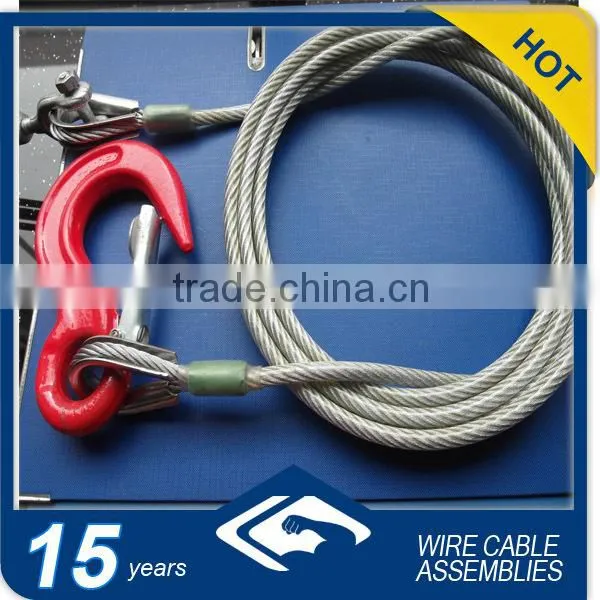

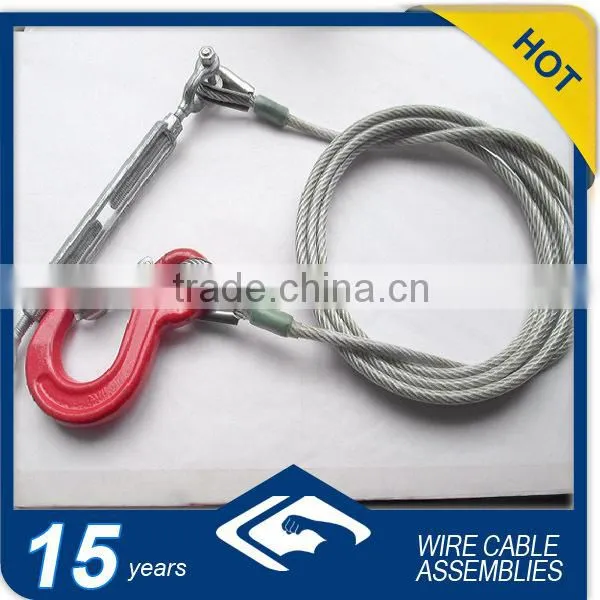

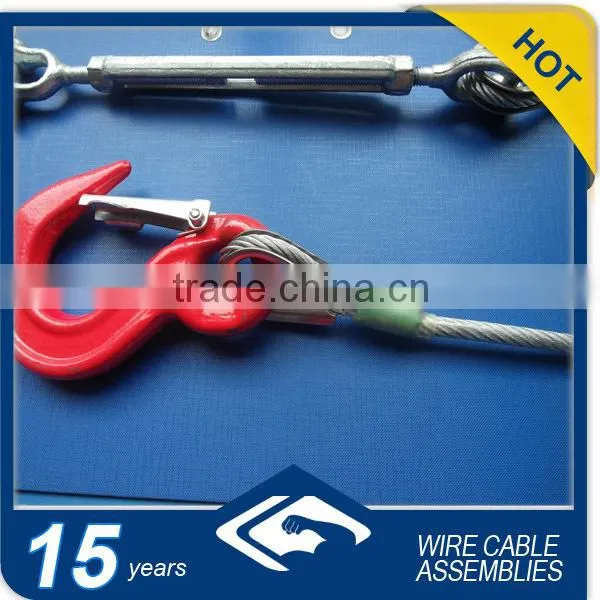

Flexible 316 Stainless Steel Endless Wire Rope Sling / Lifting Ropes Slings
- 10000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | guofeng | Model Number: | Wire Rope Sling |
Type: | Other, Assembly Sling, Endless Wire Rope Sling / Lifting Ropes Slings | Shape: | Endless | Material: | Stainless Steel |
Lifting Capacity: | Other, Less Than 1 Ton, Less Than 1 Ton | Lifting Eye Type: | Flat Eye | Certification: | N/A |
Product Description
Flexible 316 Stainless Steel Endless Wire Rope Sling / Lifting Ropes Slings
1.Diameter | 2.0mm | Custom-made available |
nstruction | 1*7,7*7,1*19,7*19,etc | |
3.material | galvanized/stainless steel | |
4.MOQ | 500pcs | |
5.length | 453mm or other | |
6.eyelet | as requirement | |
ating
| PU up to 3.0mm | |
8.end parts of fittings | a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc | |
9.Lead time | 7days if there were enough material in stock | |
10.sample | Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. | |
application | Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings | |
specification | Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Diameter | construction | weight(100m) | Minimum Breaking load(N) |
1.0mm | 1*19 | 0.495 | 950(95kg) |
| 7*7 | 0.393 | 650 (65kg) |
1.2mm | 1*19 | 0.713 | 1440(144kg) |
| 7*7 | 0.566 | 950(95kg) |
1.5mm | 1*19 | 1.114 | 2200(220kg) |
| 7*7 | 0.884 | 1500(150kg) |
1.8mm | 1*19 | 1.604 | 3200(320kg) |
| 7*7 | 1.273 | 2100(210kg) |
2.0mm | 1*19 | 1.98 | 3900(390kg) |
| 7*7 | 1.527 | 2650(265kg) |
2.4mm | 1*19 | 2.851 | 5650(565kg) |
| 7*7 | 2.264 | 3800(380)kg |
2.5mm | 1*19 | 3.094 | 6100(610kg) |
| 7*7 | 2.381 | 4100(410kg) |
3.2mm | 7*7 | 4.024 | 6850(685kg) |
| 7*19 | 3.901 | 6800(680kg) |
3.8mm | 7*19 | 5.675 | 9650(965kg) |
| 7*7 | 5.502 | 9600(960kg) |
4.0mm | 7*19 | 6.609 | 12500(1250kg) |
4.2mm | 7*7 | 6.933 | 13000(1300kg) |
4.5mm | 7*7 | 7.958 | 13500(1350kg) |
4.8mm | 7*19 | 8.778 | 15300(1530kg) |
6.0mm | 7*19 | 8.716 | 23900(2390kg) |
pany profile:
Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.
Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.
2.Export percentage: 51% - 60%
3.factory information:
factory size:5000.00 square meters
staff number:100-300people
location: the first floor, D Building,NO.10Road. Longyan Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China
production lines:3 lines
R&D:5-10people
QC:5-10people
Endless Wire Rope Sling / Lifting Ropes Slings:
Packaging Detail: 1 plastic bag +carton
2 As the clients’ requirement
Delivery Detail: 20 days (could be adjusted if necessary)
Carton size: 41*41*17 cm
1. How do you design a Endless Wire Rope Sling / Lifting Ropes Sling ?
Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility , cost, When we design the Endless Wire Rope Sling / Lifting Ropes Sling.
2. what’s safety factor does your product use?
General ,use a 5 to 1 or 3 to 1 safety factor when we design it, example :breaking load is (1000N) 100kg ,safety factor is 5:1 (200N) Breaking strength should never be considered the rope's working load.
3. I would get a flexible cable assembly ,how do I choose?
In same diameter of steel wire cable ,the 7X19 construction is more flexible than the 7X7 construction.
Example:1/16’’7X19 steel wire rope more flexible than 1/16’’7X7
4. Which material should I choose?
Stainless steel cable is more corrosion ,but it is expensive than galvanized steel cable and has a slightly less tensile strength. If it is use for general industry ,galvanized steel is ok, if it is use for marine environment ,I recommend in stainless steel wire cable . depend on you application.
5.What’s the lead time of my order?
It was largely depend on the size of your order .normally ,20days . If you are in urgent need of it ,we will try my best to met your requirement.
