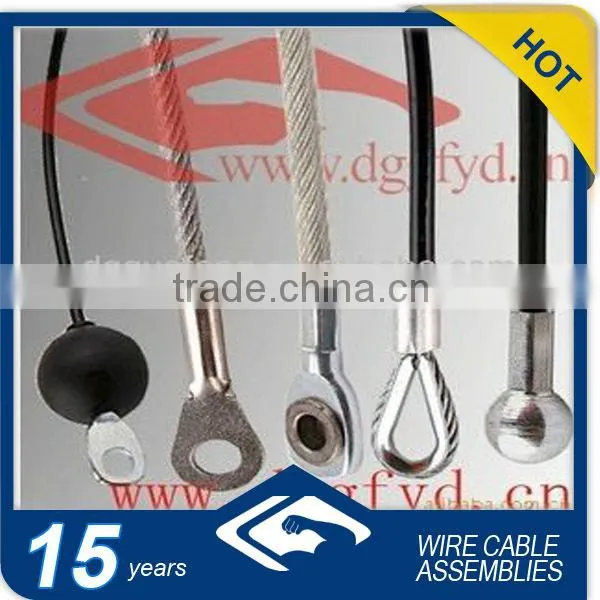

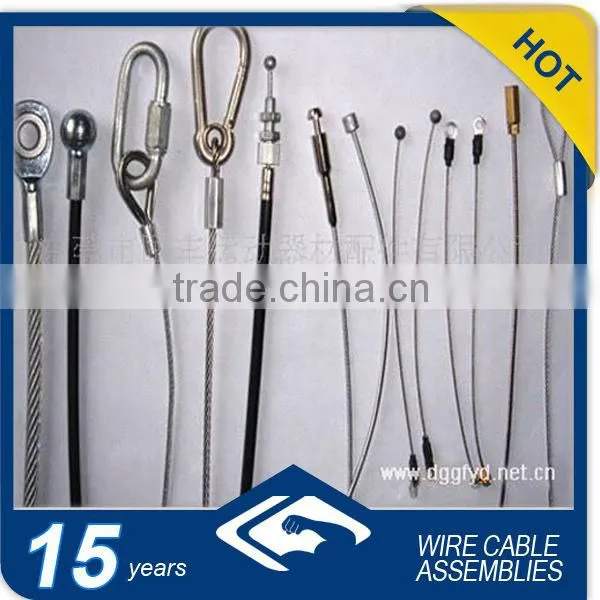

Help CenterAircraft Cable With Ball Thimbel /carabiner/eyelet
Related Products
-
White PVC Coated Cable With TerminalsUS$ 0.65 - 0.65MOQ: 500 Pieces -
Steel Wire Rope With Compress Spring Hooks and Metal TabsUS$ 0.65 - 0.65MOQ: 500 Pieces
-
3.2mm 7*19 Galvanzied Steel Wire Rope With Big TabsUS$ 0.65 - 0.65MOQ: 500 Pieces
-
Stainless Steel Cable Luggage Straps With CoatingUS$ 0.3 - 0.3MOQ: 500 Pieces
-
Metal Wire Circle Keychain Stainless Steel Rope Key CableUS$ 0.45 - 0.45MOQ: 500 Pieces
1.Diameter |
0.3-11mm |
Custom-made available |
nstruction |
7X7,etc |
|
3.material |
stainless steel |
|
4.MOQ |
500pcs |
|
| 5.length | 1.5m-5m | |
| 6.place of origin | china | |
|
ating
|
as requirement |
|

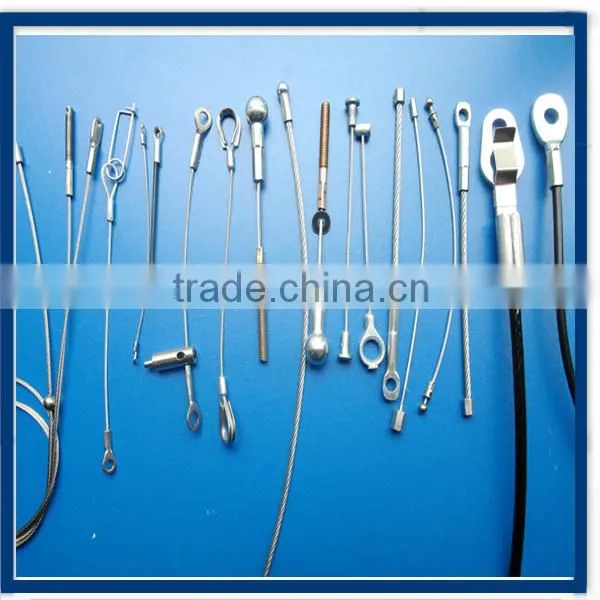

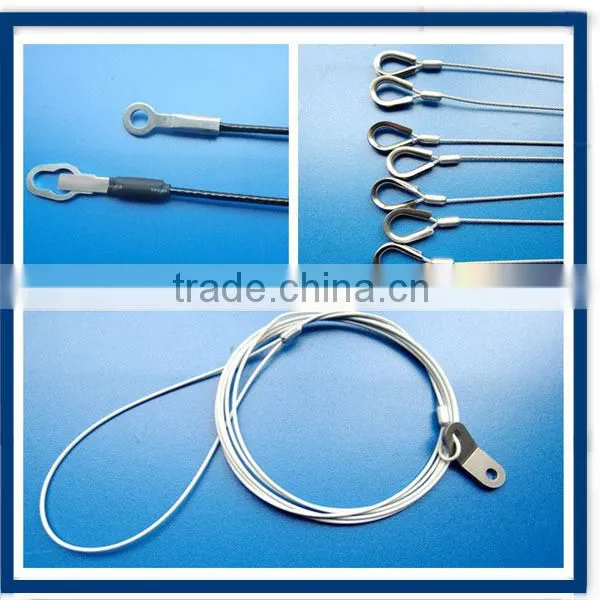

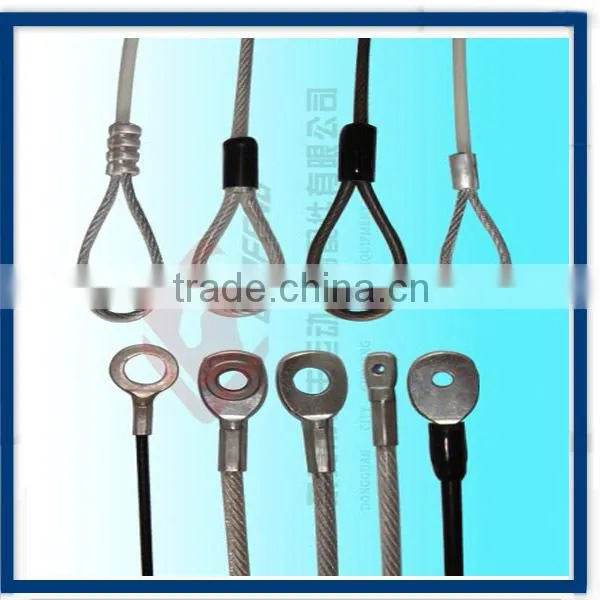

8.end parts of fittings |
a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc |
|
9.Lead time |
7days if there were enough material in stock |
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
application |
Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings |
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
|
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
7*7 |
0.393 |
650 (65kg) |
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
7*7 |
0.566 |
950(95kg) |
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
7*7 |
0.884 |
1500(150kg) |
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
7*7 |
1.273 |
2100(210kg) |
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
7*7 |
1.527 |
2650(265kg) |
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
7*7 |
2.264 |
3800(380)kg |
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
7*7 |
2.381 |
4100(410kg) |
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
7*19 |
3.901 |
6800(680kg) |
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
7*7 |
5.502 |
9600(960kg) |
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
pany profile:
Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.
Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.
2.Export percentage: 51% - 60%
3.factory information:
factory size:5000.00 square meters
staff number:100-300people
location: the first floor, D Building,NO.10Road. Longyan Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China
production lines:3 lines
R&D:5-10people
QC:5-10people
