HDPE Coated Flexible Metal Conduit

HDPE Coated Flexible Metal Conduit thumbnail-1
HDPE Coated Flexible Metal Conduit thumbnail-2
HDPE Coated Flexible Metal Conduit photo-1
HDPE Coated Flexible Metal Conduit photo-2
Negotiable MOQ: 2000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
metal conduit
Contact Supplier Request Quote Chat Now
Dongguan City Guofeng Sports Equipment Fitting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number metal conduit
Material PP
Specification Custom
Length As request
Thickness 0.5mm-5mm
Standard cable conduit






Product Description



1.Diameter

3.0mm-9.0mm

Custom-made available

2.jacket

HDPE

3.material

HDPE,POM,PP

4.MOQ

500pcs
5.length  as requirement
6.type Metal conduits
7.liner



HDPE,PP

8.end parts of fittings

a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc

9.Lead  time

7days if there were enough material in stock

10.sample

Free sample available if  all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.

application

Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden

Etc. When designing a cable assembly, a number of factors need to be considered such as,  work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be.

WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings

specification

Refer to the drawing as below:

All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.









how to choose material:1stain1.1.1.



1.stainless steel :



providing good corrosion resistance and strength comparable to galvanized carbon steel grades.



 2.galvanized steel:



Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.







Diameter

construction

weight(100m)

  Minimum Breaking load(N)

1.0mm

  1*19

 0.495

     950(95kg)



    7*7

 0.393

     650 (65kg)

 1.2mm

    1*19

0.713

   1440(144kg)



    7*7

 0.566

    950(95kg)

 1.5mm

    1*19

 1.114

   2200(220kg)



    7*7

 0.884

   1500(150kg)

 1.8mm

    1*19

 1.604

   3200(320kg)



    7*7

 1.273

   2100(210kg)

 2.0mm

    1*19

 1.98

   3900(390kg)



    7*7

 1.527

   2650(265kg)

 2.4mm

    1*19

 2.851

   5650(565kg)



    7*7

 2.264

   3800(380)kg

2.5mm

    1*19

 3.094

   6100(610kg)



    7*7

 2.381

   4100(410kg)

 3.2mm

    7*7

 4.024

   6850(685kg)



   7*19

 3.901

   6800(680kg)

3.8mm

   7*19

 5.675

   9650(965kg)



    7*7

 5.502

   9600(960kg)

4.0mm

   7*19

6.609

  12500(1250kg)

4.2mm

   7*7

6.933

  13000(1300kg)

4.5mm

   7*7

7.958

  13500(1350kg)

4.8mm

   7*19

8.778

  15300(1530kg)

6.0mm

   7*19

8.716

  23900(2390kg)

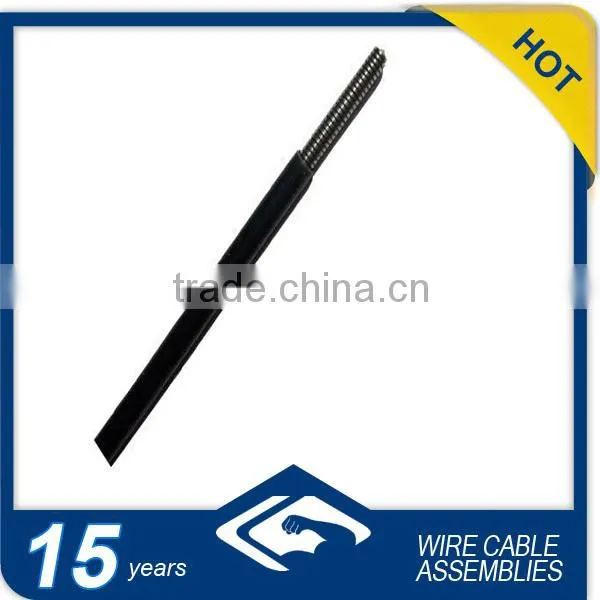

 HDPE coated flexible metal conduit



















our service and FAQ

HDPE coated flexible metal conduit







Company Information

pany profile:

Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.

Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.

2.Export percentage: 51% - 60%

3.factory information:

 factory size:5000.00 square meters

 staff number:100-300people

 location: the first floor, D Building,NO.10Road.   Longyan Industrial Zone, Humen Town, Dongguan City,  Guangdong Province, China

production lines:3 lines

R&D:5-10people

QC:5-10people



 HDPE coated flexible metal conduitHDPE coated flexible metal conduit







 HDPE coated flexible metal conduit



 HDPE coated flexible metal conduit







HDPE coated flexible metal conduit



Packaging & Shipping





HDPE coated flexible metal conduit
