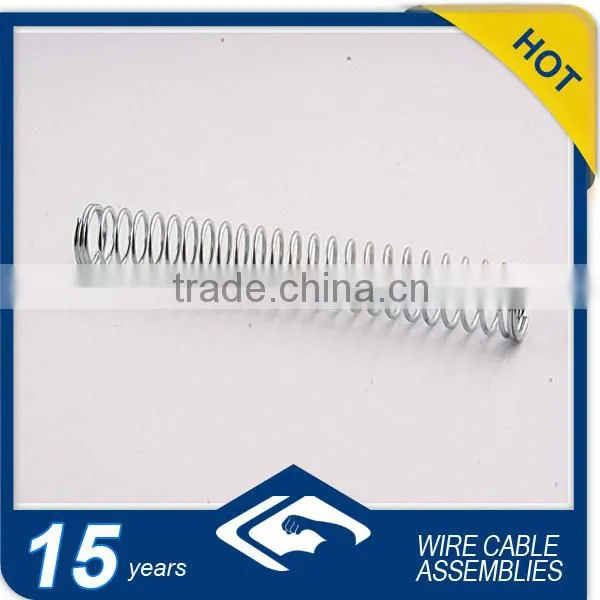

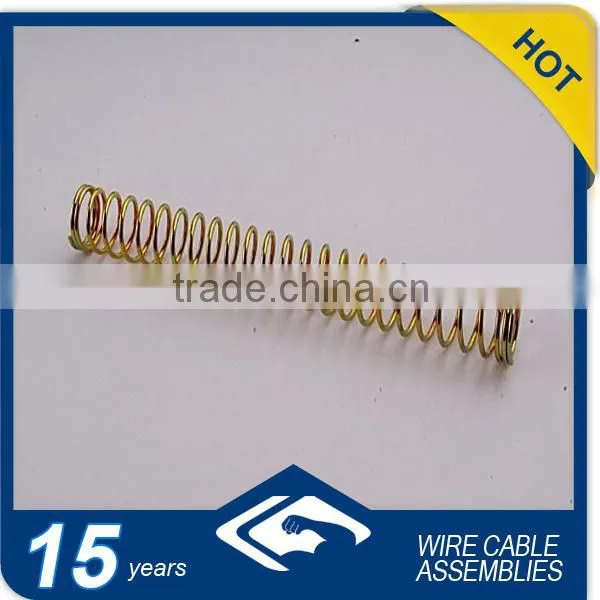

Help CenterStainless Steel Small Compression Springs
Related Products
-
High Quality Wire Rope Cable TerminalNegotiableMOQ: 5000 Pieces -
Standard Cable Clamps Components/hardware FittingsUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
High Quality Hot Galvanizing Duplex Wire Rope ClipNegotiableMOQ: 5000 Pieces
-
High Quality Pear Shaped Carabiner HooksNegotiableMOQ: 5000 Pieces
-
Stainless Steel 316 Simplex Wire Rope ClipNegotiableMOQ: 5000 Pieces
1.Diameter |
0.3-6mmmm |
Custom-made available |
nstruction |
7X7,etc |
|
3.material |
stainless steel or galvanized steel or other |
|
4.MOQ |
500pcs |
|
| 5.length | nature length can be 80-110cm or as requirement | |
| 6.diameter of coil | 30-50mm or as requirement | |
|
7.type
|
compression spring/extension spring |
|
8.end parts of fittings |
a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc |
|
9.Lead time |
7days if there were enough material in stock |
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
application |
Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings |
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
|
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
7*7 |
0.393 |
650 (65kg) |
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
7*7 |
0.566 |
950(95kg) |
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
7*7 |
0.884 |
1500(150kg) |
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
7*7 |
1.273 |
2100(210kg) |
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
7*7 |
1.527 |
2650(265kg) |
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
7*7 |
2.264 |
3800(380)kg |
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
7*7 |
2.381 |
4100(410kg) |
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
7*19 |
3.901 |
6800(680kg) |
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
7*7 |
5.502 |
9600(960kg) |
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
- 1. How do you design a brake cable ?
- Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion,
- environment ,cycle life, flexibility, cost, When we design the spring .
- 2.How to place an order?
- We produce according to customers’specifications So You’d better give us complete information as specified below:
- Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks
- 3.Are your products of good quality? How can I trust you?
- Yes. We are a professional manufacturer of wire assemblies with 15 years producing experience in China .We have always been
- cooperating with domestic and overseas customers and partners with the first-class quality and service to make great achievements.
- If this is your first time to contact us, please trust us, we’ll not let you down.
- 4. What’s the lead time of my order?
- It was largely depend on the size of your order .normally ,15days .
if you are in urgent need of it ,we will try my best to met your requirement.
pany profile:
Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.
Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.
2.Export percentage: 51% - 60%
3.factory information:
factory size:5000.00 square meters
staff number:100-300people
location: the first floor, D Building,NO.10Road. Longyan Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China
production lines:3 lines
R&D:5-10people
QC:5-10people
