office panel
Pictures and specifications
Part NO. |
Hole Size (mm) |
Illuminance (Flux) |
LED Qty |
lm |
(UL) Standard |
(CE) Standard |
CRI |
PF |
||
|
|
Output voltage/current |
Input voltage |
Input voltage/current |
Input voltage |
|||||
LX-7W(3.5inch) |
Φ115mm*18mm 120mm |
1m 120lux 2m 60lux 3m 30lux |
36 |
400 |
DC:27-42V,230MA |
AC100-277V |
DC18-22V, 300mA |
AC100-240V |
>80 |
>0.9 |
LX-10W (4 inch ) |
Φ145mm*18mm
140mm
|
1m 200lux 2m 60lux 3m 38lux |
48 |
565 |
DC24-30V,350mA |
>80
|
>0.9 |
|||
LX-15W (6 inch) |
Φ180mm*18mm 170mm |
1m 260lux 2m 70lux 3m 40lux |
72 |
966 |
DC:27-42V,460MA |
DC24-30V,500mA |
>80 |
>0.9 |
||
LX-18W (8 inch) |
Φ240mm*18mm 230mm |
1m 380lux 2m 100lux 3m 50ux |
96 |
1300 |
DC24-30V,630mA |
>80 |
>0.9 |
|||
LX-24W(10 inch) |
Φ300mm *24mm 290mm |
1m 440lux 2m 116ux 3m 52lux |
112 |
1704 |
DC:27-42V,550MA |
DC24-30V,800mA |
>80 |
>0.9 |
||
Specification:
Item |
specificaions |
| product name | square led panel light |
| Model No. | led light panel -08 |
| Input voltage | AC85-265V 50-60HZ |
| Output current | 350mA-700mA |
Power Choice |
3w/4w/6w/9w/12w/15w/18w/24w |
| Dimension | 2"-8" |
| Beam angle | 120degree |
| Color range | white/cool white/warm white |
| Life span | >50000hrs |
| Work temperature | -20~50 degrees |
| Fixture material | Aluminium |
| surface color | Sliver/Shining white / Brass /Matt white |
| Beam color | red, blue, white, yellow, alternative |
| protaction rate | IP33 |
| certification | CE , ROHS |
| Lumen flux | 1100~6300LM |
| color temperature | 2700k-7000K |
| Color Render Index | 74-90 Ra |
| Power factor | 0.85-0.99 |
| Lumens Decline | 3% in the fiirst 1000hours |
| Feature |
· Long life >50000hrs · Economical · Easily and fastly installl or replace traditional lamp · Good color and luster · Power saving and low cost · Applicability · Green environmental protection · Shake proof |
| Application |
· Home and office lighting · Shopping mall lighting · Display case lighting · Under cabinet lighting · Art lighting · Board lighting . Back lighting, step lighting, light boxes . Cabinet and under counter lighting |

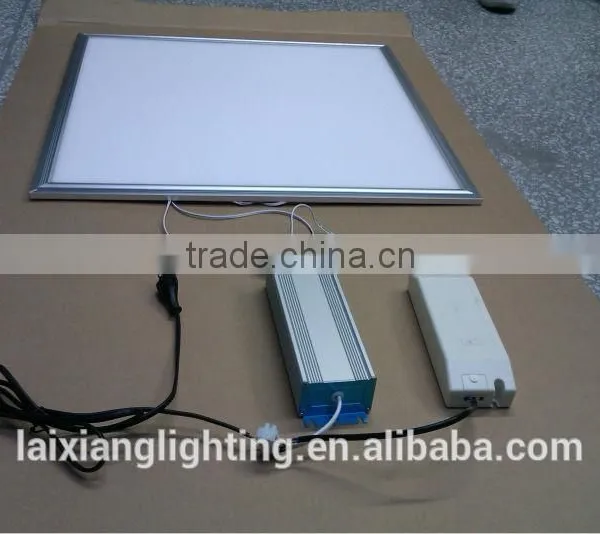

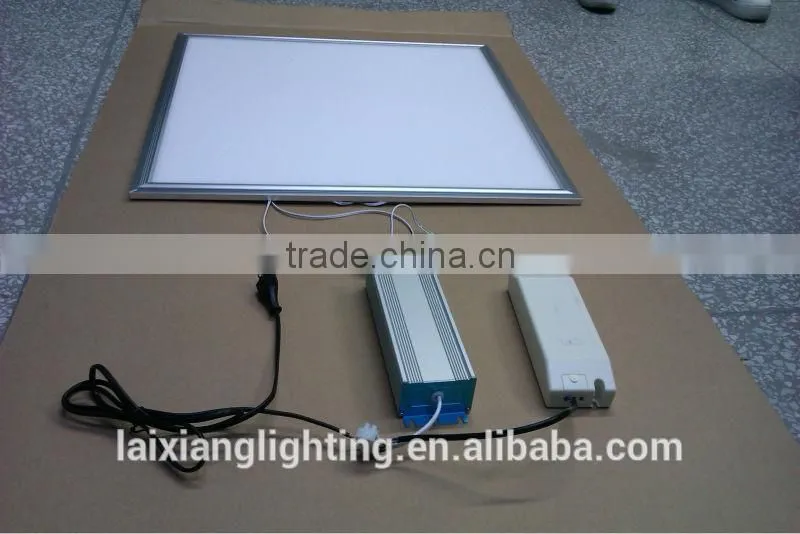

Features of led square panel :
1.lifespan:more than 50000hours.
2.Material:made of Aluminum alloy frame and organic guide tabula rase and well light film.
3.Super bright LED light source, energy saving more than 80% and eco-friendly for our eyes.
4.The outer type constant current power supply ,instantly start ,no noise ,the input voltage AC85-265V.
5.Easy installation :insert the ceiling or hanging on the roof .
6.Lighting angle :120degree ,12000LUX.
7.Size:300*300mm,600*600mm,1200*300mm,1200*600mm.
Effect:
Factory:
Export Market Distribution:
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| Western Europe | confidential | 25.0 |
| Southern Europe | confidential | 6.0 |
| South Asia | confidential | 1.0 |
| Domestic Market | confidential | 50.0 |
| North America | confidential | 6.0 |
| South America | confidential | 1.0 |
| Eastern Europe | confidential | 2.0 |
| Southeast Asia | confidential | 3.0 |
| Africa | confidential | 1.0 |
| Oceania | confidential | 3.0 |
| Mid East | confidential | 2.0 |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| SMT Machine | SAMSUNG | 2 | 6.0 | Acceptable |
| Chip Bonding Machine | JINGCHI300 | 3 | 6.0 | Acceptable |
| Automatic Wire Welding Machine | BAU6100 | 8 | 6.0 | Acceptable |
| Dispensing Machine | LAMPDA | 3 | 6.0 | Acceptable |
| Oven | LED-2 | 6 | 4.0 | Acceptable |
| Auto Glue Injection Machine | HONHYANG | 1 | 6.0 | Acceptable |
| Semi Auto Glue Injection Machine | No Information | 1 | 6.0 | Acceptable |
| Hydraulic Pressing Machine | XYQ-08 | 3 | 6.0 | Acceptable |
| Color Selection Machine | ZY-850 | 3 | 6.0 | Acceptable |
| SMD Chip Bonding Machine | JINGCHI | 6 | 2.0 | Acceptable |
| SMD Automatic Wire Welding Machine | CONXLED | 8 | 2.0 | Acceptable |
| SMD Dispensing Machine | XUANSHUO | 4 | 2.0 | Acceptable |
| SMD LED Oven | YIHE | 6 | 3.0 | Acceptable |
| SMD Auto Glue Injection Machine | LAMPDA | 1 | 1.0 | Acceptable |
| SMD Semi Auto Glue Injection Machine | MUSASHI | 3 | 2.0 | Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| DC Power Supply | TPR-3010D | 7 | 5.0 | Acceptable |
| Withstand Voltage Tester | CC2671A | 1 | 5.0 | Acceptable |
| Ageing Test Line | No Information | 1 | 4.0 | Acceptable |
| Oscilloscope | PDS7102T | 1 | 2.0 | Acceptable |
| DC Magnetization Power | BF-SB-100T | 1 | 1.0 | Acceptable |
Packing:
