Specifications
1 temperature control set2. for mixing the primary supply water with the underfloor heating return water

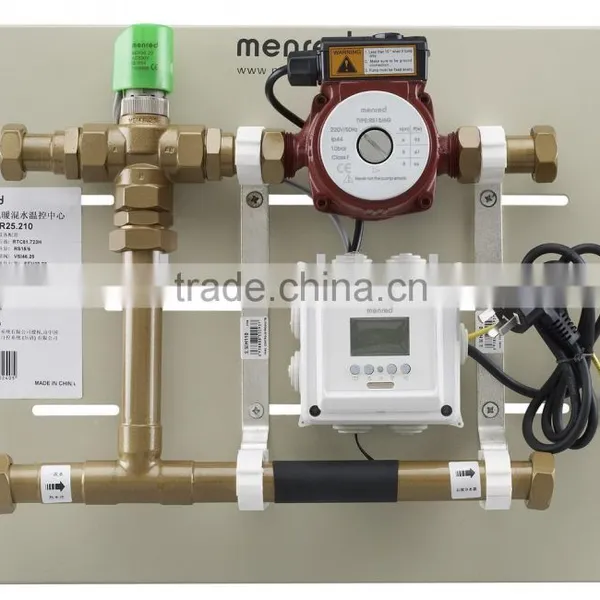

Water Mixing Center
Introduction
This control center is designed for mixing the primary supply water with the underfloor heating return water.
It is appropriate for the heating area no more than 200m²
Main Components:
One special programmable thermostat
One electro-thermal actuator
One 3-port valve
One 3-speed water pump
One wiring box with LED indicating the supply water temperature
External sensor
Features
Special programmable thermostat can control both room temperature and supply water temperature
Thermostat temperature limitation function (with a temperature range of +5'C~+65'C) can protect the water pump when there is no water flow
LED thermometer for indicating the supply water temperature
Technical data
Operating pressure : PN10
Voltage : AC230V
Pump head : 6m
Max. power consumption : 100W (when pump running)
Room temperature setting range : +5'C~+50'C (±1K)
Water-mixing temperate range : +5'C~70'C (factory setting: +40'C~+45'C)
