European Standard Menred Water Heating Manifold Equipment System
US$ 33.65 - 93.5
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
menred
Model Number:
A7....
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Floor Heating DistributeNegotiableMOQ: 300 Sets -
2015 Menred Brass Water Manifold for Underfloor Heating Water ManifoldUS$ 33.65 - 93.5MOQ: 10 Sets
-
Menred Brass Water Manifold for HeatingUS$ 43 - 275MOQ: 10 Pieces
-
2015 Menred A9 Good Performance Underfloor Heating Brass Manifold SystemUS$ 43.5 - 213.5MOQ: 1 Piece
-
Water Heating Manifolds for Floor Underfloor Heating System, High Quality Brass Manifold,Brass Water ManifoldUS$ 33.65 - 93.5MOQ: 10 Sets
Place of Origin
Zhejiang, China
Brand Name
menred
Model Number
A7....
Type
HVAC Systems
Specifications
manifoldWith balancing valves & shut-off valve
Water Heating Manifold Equipment System
Introduction

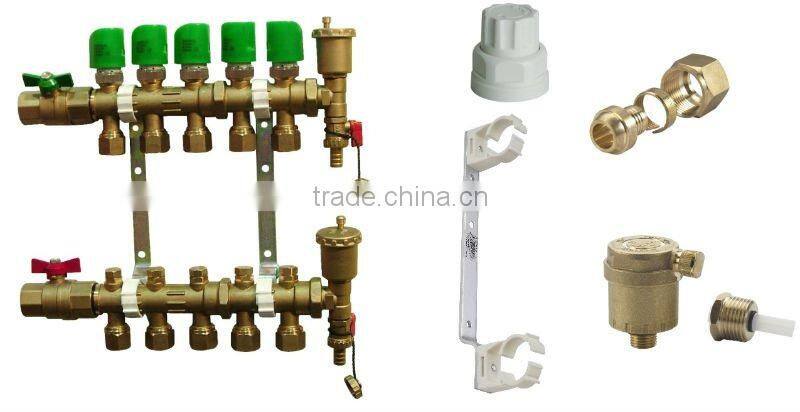

The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature
Features
Hot-stamped brass body
Nature color, surface anticorrosion processing
Outlets in composite with the main body to exterminate the leakage possibility of manifolds
Axial static seal technology
No O-ring for pipe fittings
Freestyle combination for multi-loops
Technical data
Connection : 1'' or 1-1/4''
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM
Selection table
Model No. |
Description |
No. |
Outlets |
Composition |
702 |
1''or 1-1/4'' |
2-loop |
3/4'M |
702*1 |
703 |
1'' or 1-1/4'' |
3-loop |
3/4'M |
703*1 |
704 |
1'' or 1-1/4'' |
4-loop |
3/4'M |
704*1 |
705 |
1'' or 1-1/4'' |
5-loop |
3/4'M |
702*1+703*1 |
706 |
1'' or 1-1/4'' |
6-loop |
3/4'M |
703*2 |
707 |
1'' or 1-1/4'' |
7-loop |
3/4'M |
703*1+704*1 |
708 |
1'' or 1-1/4'' |
8-loop |
3/4'M |
704*2 |
709 |
1'' or 1-1/4'' |
9-loop |
3/4'M |
703*3 |
710 |
1'' or 1-1/4'' |
10-loop |
3/4'M |
703*2+704*1 |
711 |
1'' or 1-1/4'' |
11-loop |
3/4'M |
703*1+704*2 |
712 |
1'' or 1-1/4'' |
12-loop |
3/4'M |
704*3 |
................................................................................................... | ||||

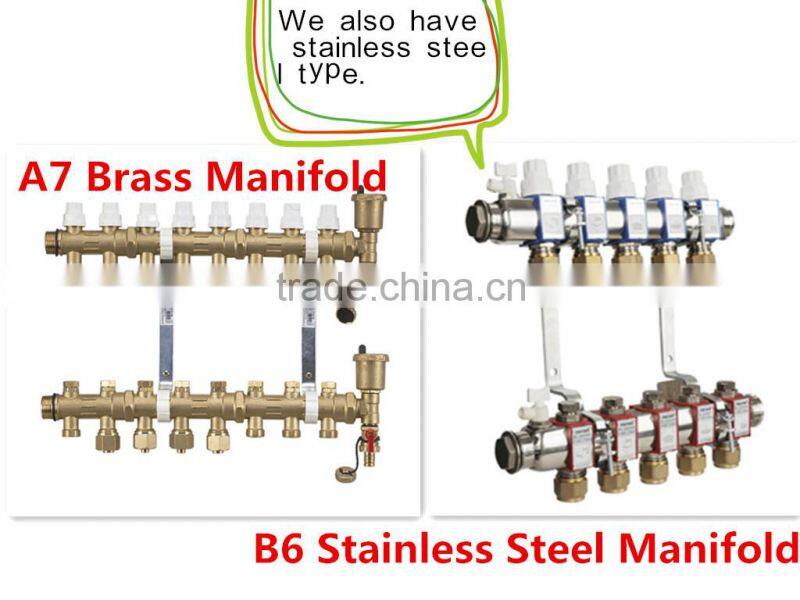

A7...Manifold Standard Access List:
