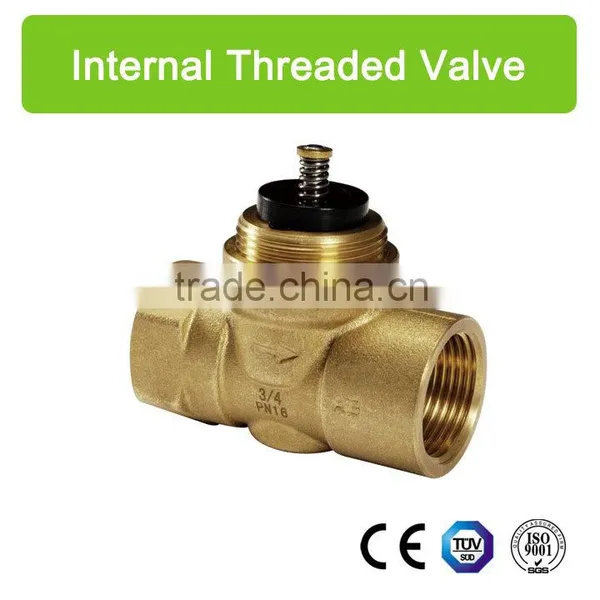

Menred VEI46 2-port Internal Threaded Brass Valve Fit With Motorized Actuator
US$ 7.32 - 7.32
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2005
Factory Size:
30,000-50,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VEI 46 , 3-port Internal Threaded Valve, High Quality Valve,3 Way Valve,Brass Valve for Ventilation and Air-conditioning SystemUS$ 11.4 - 15.6MOQ: 500 Pieces -
VEI 46 , 2-port Internal Threaded Valve, High Quality Valve,2 Way Valve,Brass Valve for Ventilation and Air-conditioning SystemUS$ 7.85 - 15.6MOQ: 500 Pieces
-
Copper ValvesNegotiableMOQ: 300 Pieces
-
VEI46 3-port Motorized ValveUS$ 7.32 - 7.32MOQ: 100 Pieces
-
Vacuums/cleaner/Central Vacuum(CVS) CleanerNegotiableMOQ: 128 Sets
menred VEI46 2-port internal threaded brass valve fit with motorized actuator
Introduction
The VEI46... 2-port small valve is assembled with an electric or electro-thermal actuator used in ventilation and air-conditioning systems for terminal unit control.
The VEI46... 2-port small valve is assembled with an electric or electro-thermal actuator used in ventilation and air-conditioning systems for terminal unit control.
Application
For the on/off control of water flow in water-based air-conditioning system, especially for FCU systems as zone valve used in Commercial buildings, Residential buildings, Light industrial buildings
For the on/off control of water flow in water-based air-conditioning system, especially for FCU systems as zone valve used in Commercial buildings, Residential buildings, Light industrial buildings
Features
Hot-forging brass valve body
Internally threaded connections
Hard sealing disc
Manual adjuster
Can be fitted with motorized actuator (SEA21) or electro-thermal actuators (SEH30)
Hot-forging brass valve body
Internally threaded connections
Hard sealing disc
Manual adjuster
Can be fitted with motorized actuator (SEA21) or electro-thermal actuators (SEH30)
Technical data
Operating pressure : PN16
Valve characteristic : linear
Stroke : 2.5mm
Leakage rate :(2-port) path A→AB 0...0.05% of Kvs
Medium temperature : 0'C...+110'C
Valve body : brass
Stem : stainless steel
Plug, seat, gland : brass
Stem seal : EPDM O-ring
Valve characteristic : linear
Stroke : 2.5mm
Leakage rate :(2-port) path A→AB 0...0.05% of Kvs
Medium temperature : 0'C...+110'C
Valve body : brass
Stem : stainless steel
Plug, seat, gland : brass
Stem seal : EPDM O-ring
Selection table
|
