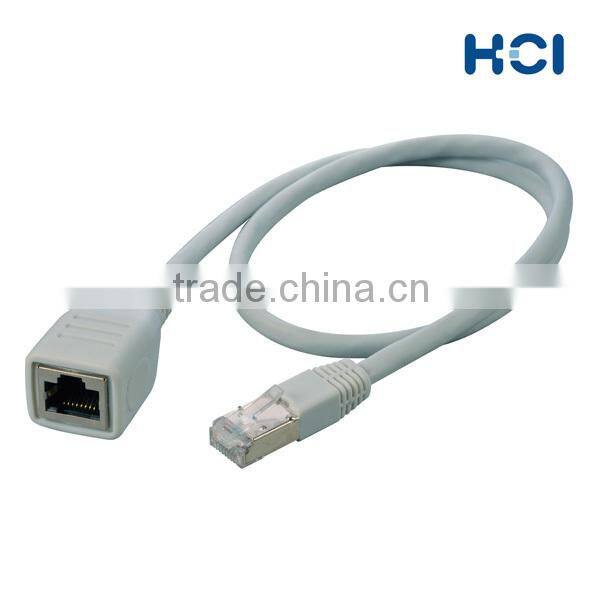

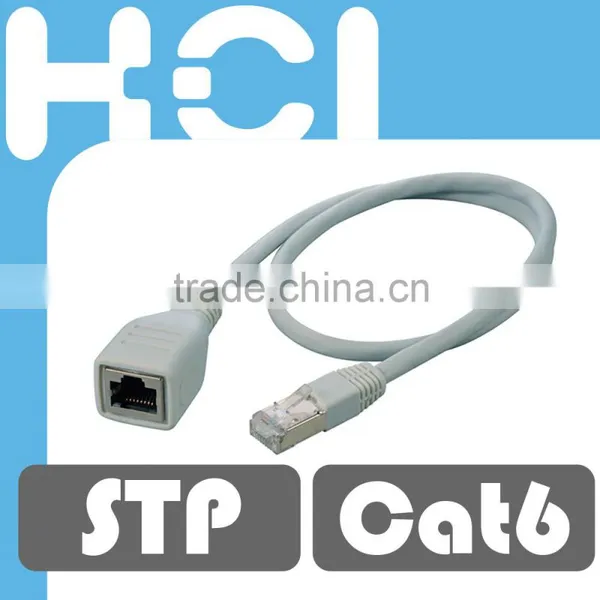

Taiwan Manufacturer RJ45 Cat6 Shielded F/STP Female to Male Consolidation Point Coupler Cable
Taiwan Manufacturer RJ45 Cat6 Shielded S/UTP Female to Male Consolidation Point Coupler Cable
CPS Series

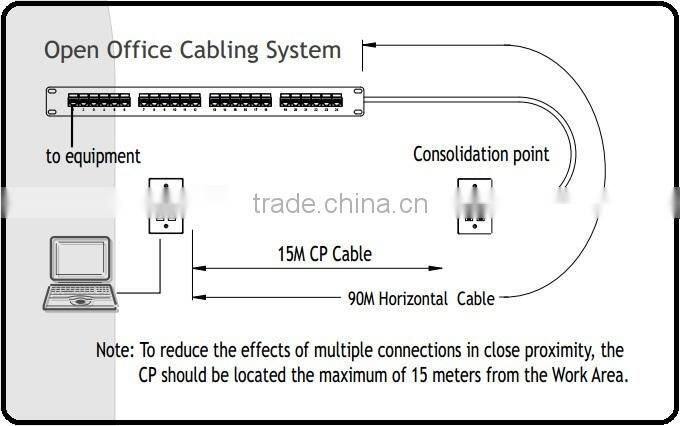

§ What is Consolidation Point Cable (CP Cable) ?
The consolidation point function as an interconnection between two sections of the horizontal cabling: the main cabling from the telecommunications rooms and the shorter distribution cables (CP Cable) which serve outlets in the work area. Typically it is mounted on the ceiling or under the access flooring.

§ PRODUCT FACTS
• To provide increased flexibility and economical for installations with open office work
spaces that require frequent recofiguration.
• They connect dedicated Telecommunications Outlets to individual work areas and do not
require provisions for extended cord lengths.
§ ORDERING INFORMATION
| PART NO. | DESCRIPTION |
| CPS7.5B6 | Cat 6 F/STP LSZH CP Cable, T568B, L=7.5m |
| CPS7.5B5e | Cat 5e F/STP LSZH CP Cable, T568B, L=7.5m |
| CPS15B6 | Cat 6 F/STP LSZH CP Cable, T568B, L=15m |
| CPS15B5e | Cat 5e F/STP LSZH CP Cable, T568B, L=15m |
§ IMPLEMENTING PL SYSTEM
First of all, a patch cord is used to connect the switch & PL patch panel in Telecommunications Room. Secondly, connect PL patch panel & PL outlet by patch cord (Solid Wire Type) within 90m. Lastly, utilize a patch cord within 5m to connect PL outlet and computer. This simple process is called “PL (Plug-and-Link) System”.
PL system saves the time needed for installation. With the high demand of wage and production-cost to develop network systems in some countries (ex: Japan, Germany and Switzerland), the PL system is particularly ideal for your design in Horizontal Cabling.
Installations are as simple as you can imagine. After primary setup in Telecommunications Room is done, the patch cord is utilized for the connection of PL patch panel and PL outlets through ceiling, floor or raceway to complete the cabling. As an installer, you will find it to be the easiest, most timesaving, and of course, the most-saving installation you will ever experience!
PL system contains UTP&STP applications. This simple “Plug-and-Link” method offers a defaults-free installation. It is trustworthy and reliable!
TWISTED-PAIR MULTIMEDIA OPTICAL FIBER OEM/ODM
OEM & ODM: Why HCI?
One of Taiwan’s leading supplier oftelecommunications structured cabling system.
Provide total solution, from design to production with fast turn around time and the best price.
Founded in 1975 and over 25 years experience in OEM/ODM projects.
Your reliable global partner!
