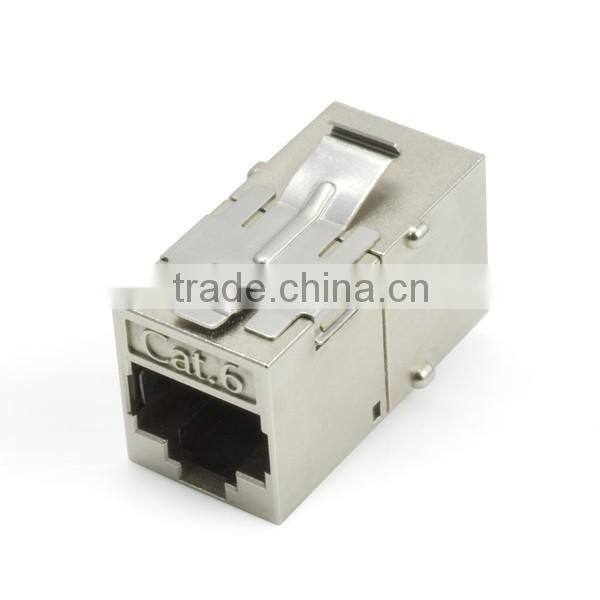

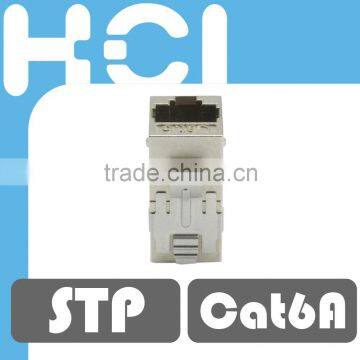

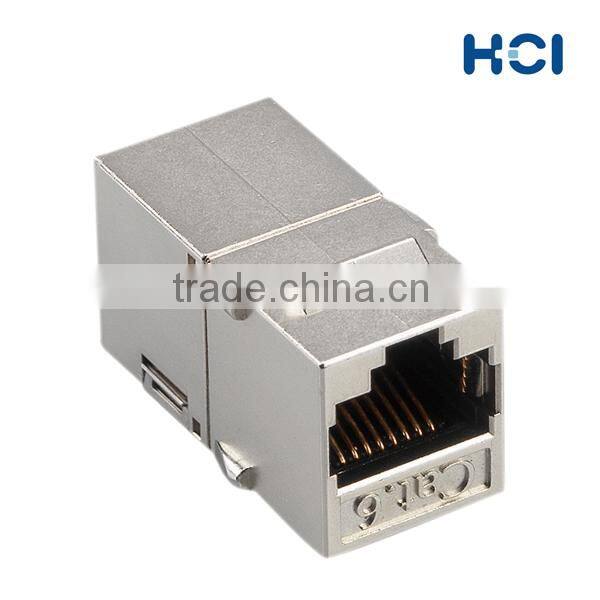

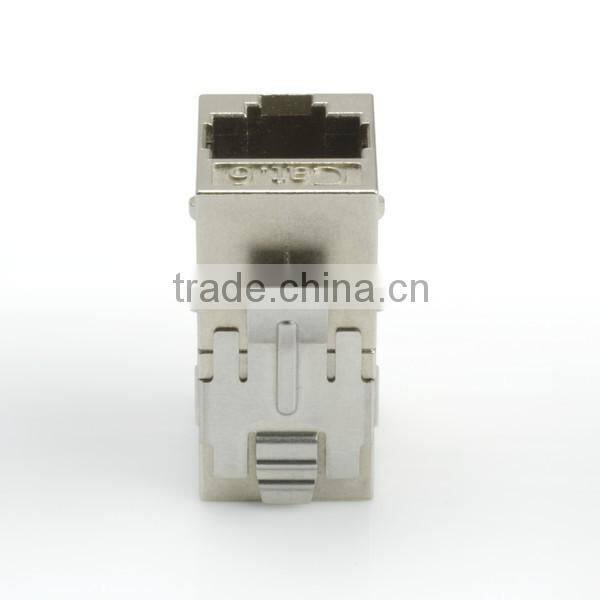

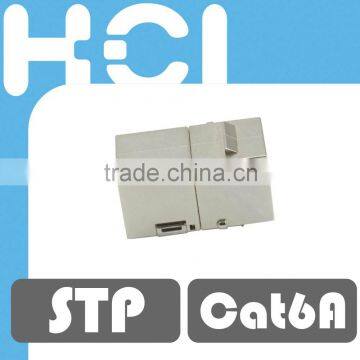

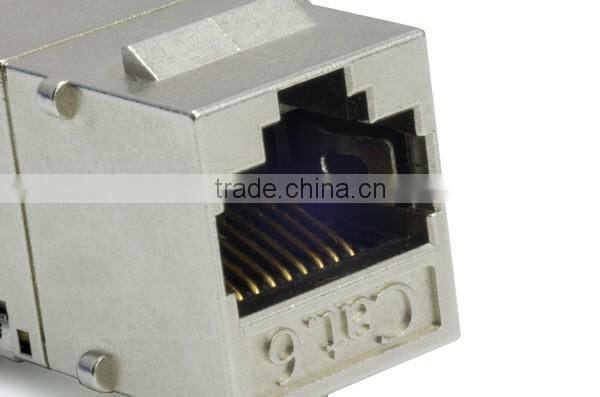

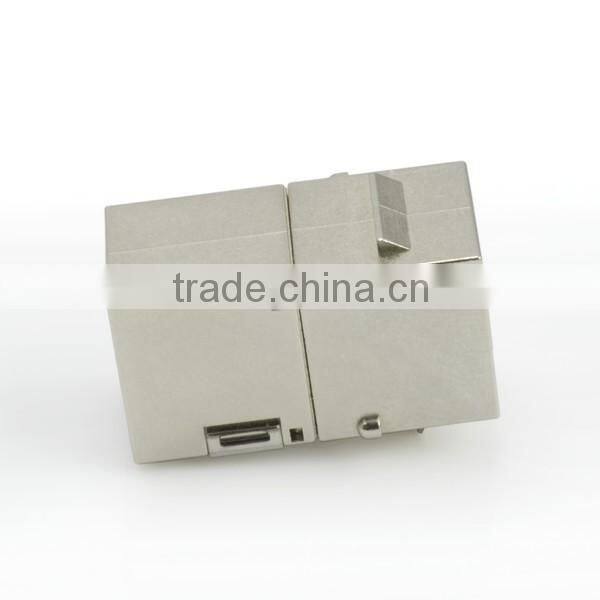

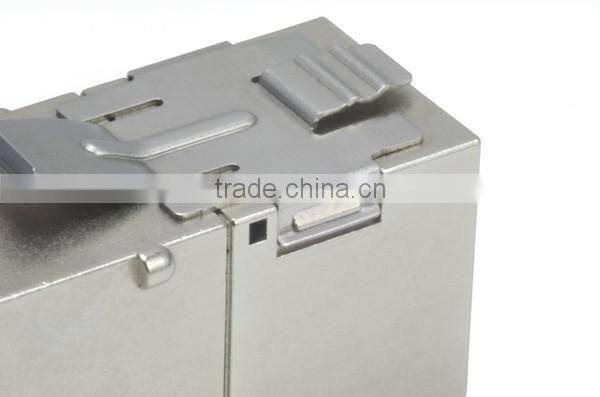

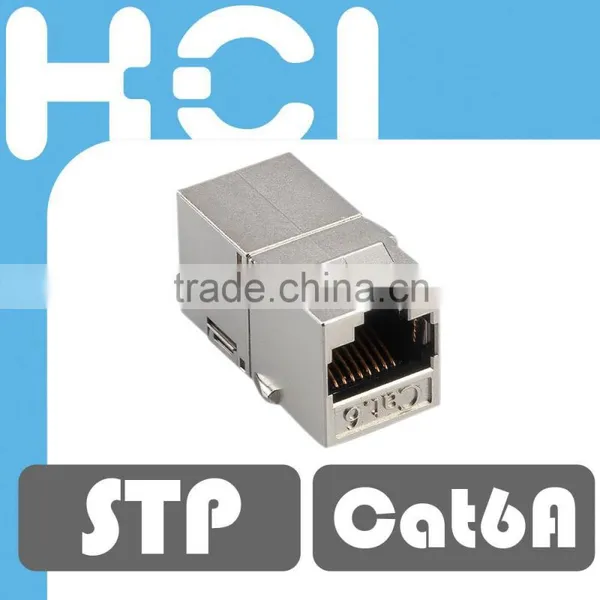

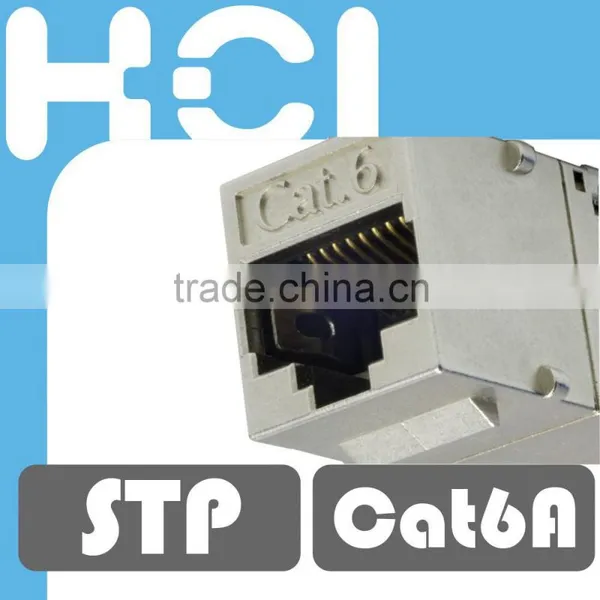

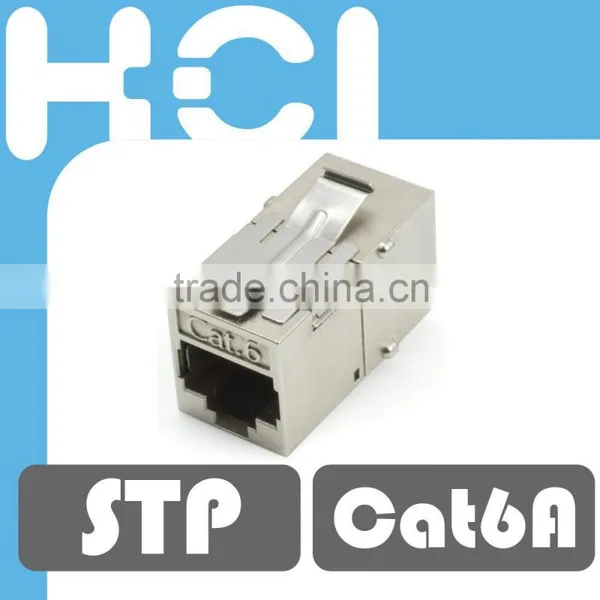

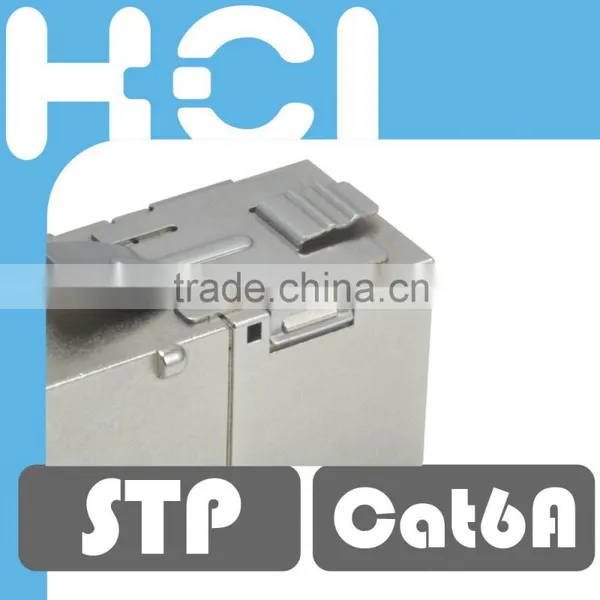

RJ45 Cat6A 180 Degree Shielded STP Straight Keystone Coupler
J2CS Series
§ PRODUCT FACTS
The keystone coupler is designed for quick installations. It’s easy to snap into the outlets and patch panels. When requirements are changed, simply disconnect the patch cord and snap out the unneeded keystone coupler. Then snap is a new one and connect the patch cord.
§ SPECIFICATION
1. REACH & RoHS2 compliant.
2. Meets the ANSI/TIA-568-C.2 transmission requirements for Augmented Category 6
Channel and Permanent Link.
3. Meets Amendment 1 to ISO/IEC 11801 2nd edition and CENELEC EN 50173-1
transmission requirements for Augmented Class E Channel and Permanent Link.
4. Meets ANSI/TIA-1096-A (FCC Part 68) and IEC 60603-7-5 requirements for RJ45
8-way connector.
5. Meets UL-1863 Safety Standard.
6. Fully automatic production of PCB assembly to ensure production consistency.
§ ORDERING INFORMATION
| PART NO. | DESCRIPTION |
| 3013AJ2CS6A | 180 Degree Cat6A Shielded Straight Keystone Coupler |
| 3013AJ2CS6 | 180 Degree Cat6 Shielded Straight Keystone Coupler |
| 3013AJ2CS5e | 180 Degree Cat5e Shielded Straight Keystone Coupler |
§ IMPLEMENTING PL SYSTEM
First of all, a patch cord is used to connect the switch & PL patch panel in Telecommunications Room. Secondly, connect PL patch panel & PL outlet by patch cord (Solid Wire Type) within 90m. Lastly, utilize a patch cord within 5m to connect PL outlet and computer. This simple process is called “PL (Plug-and-Link) System”.
PL system saves the time needed for installation. With the high demand of wage and production-cost to develop network systems in some countries (ex: Japan, Germany and Switzerland), the PL system is particularly ideal for your design in Horizontal Cabling.
Installations are as simple as you can imagine. After primary setup in Telecommunications Room is done, the patch cord is utilized for the connection of PL patch panel and PL outlets through ceiling, floor or raceway to complete the cabling. As an installer, you will find it to be the easiest, most timesaving, and of course, the most-saving installation you will ever experience!
PL system contains UTP&STP applications. This simple “Plug-and-Link” method offers a defaults-free installation. It is trustworthy and reliable!
TWISTED-PAIR MULTIMEDIA OPTICAL FIBER OEM/ODM
OEM & ODM: Why HCI?
One of Taiwan’s leading supplier oftelecommunications structured cabling system.
Provide total solution, from design to production with fast turn around time and the best price.
Founded in 1975 and over 25 years experience in OEM/ODM projects.
Your reliable global partner!
