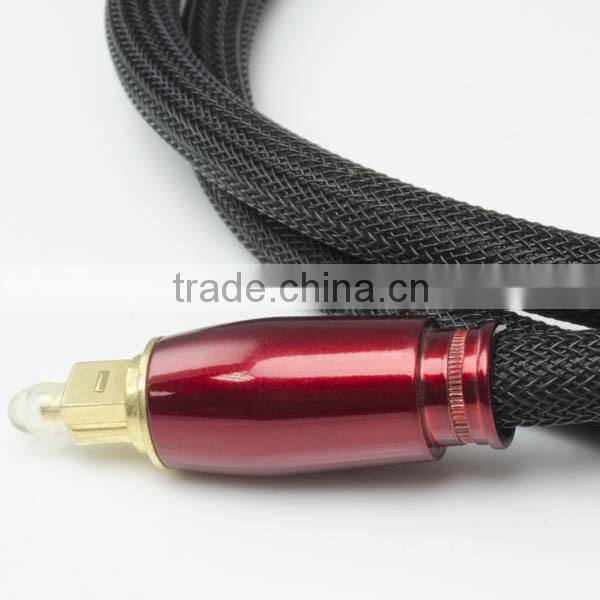

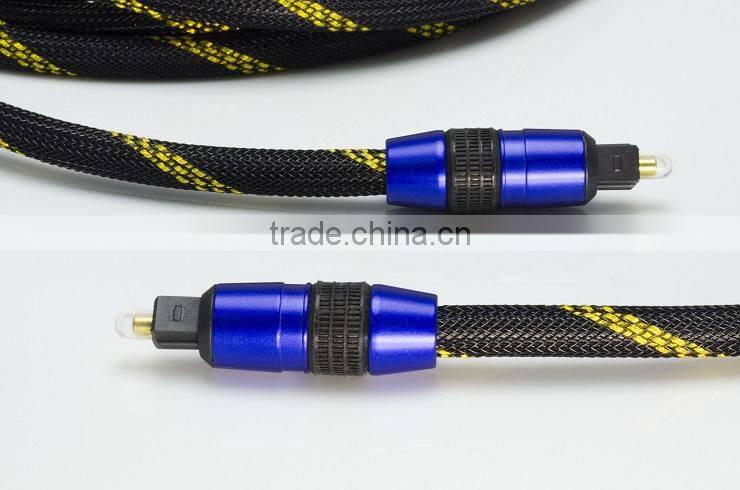

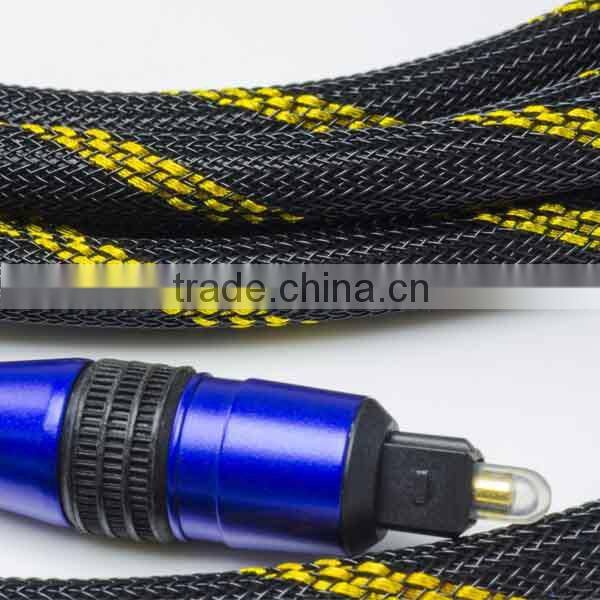

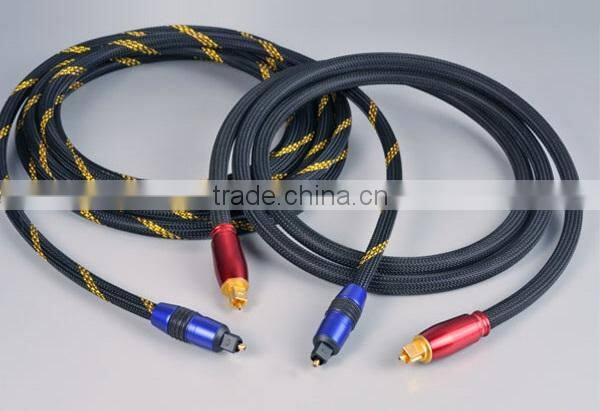

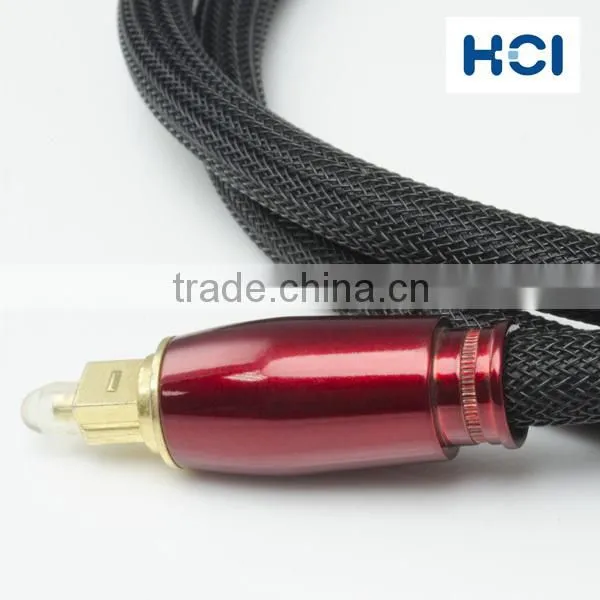

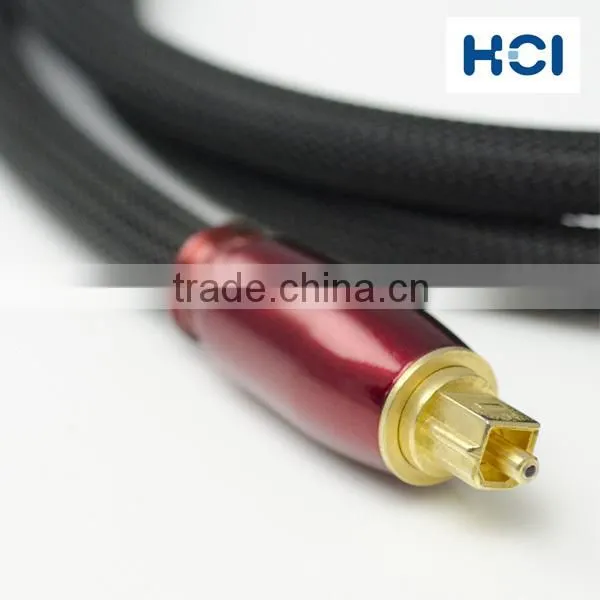

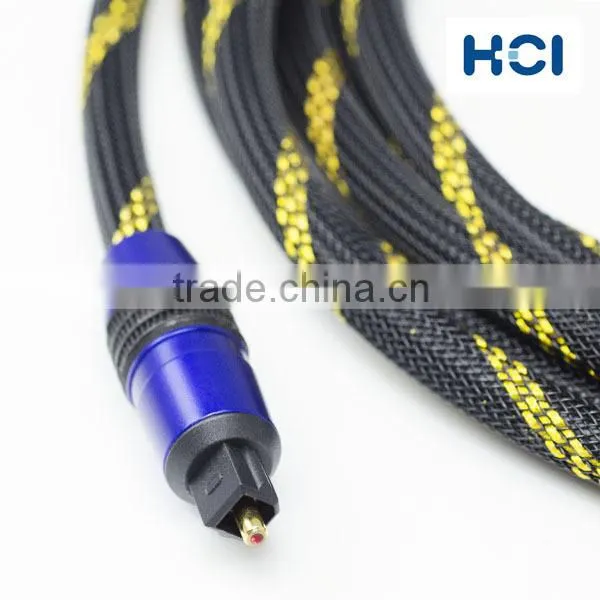

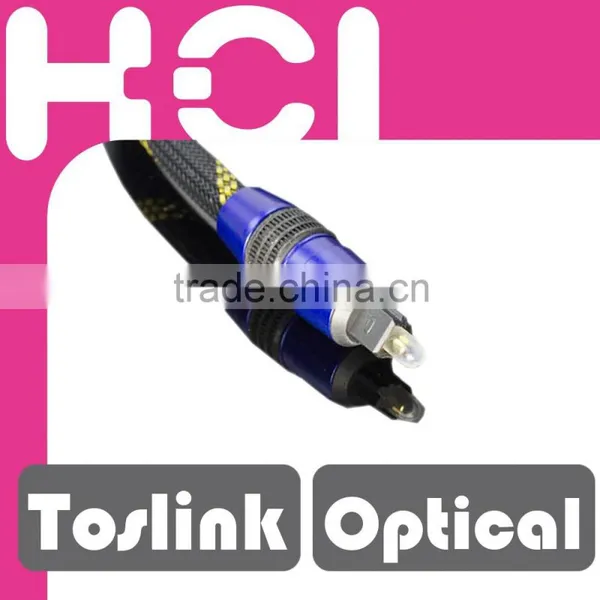

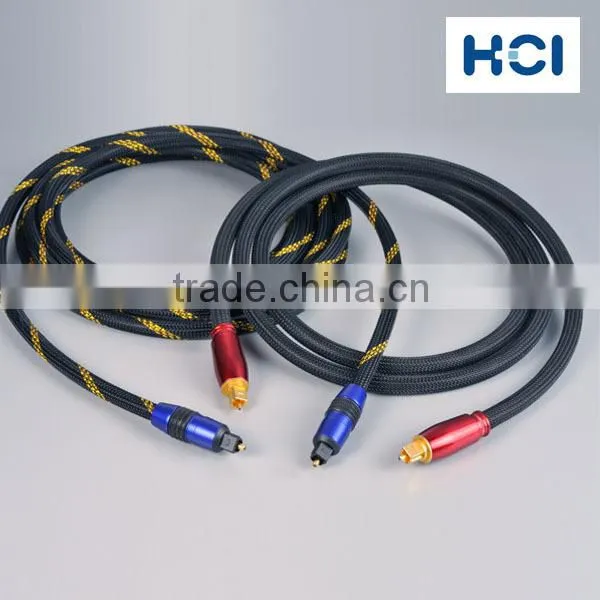

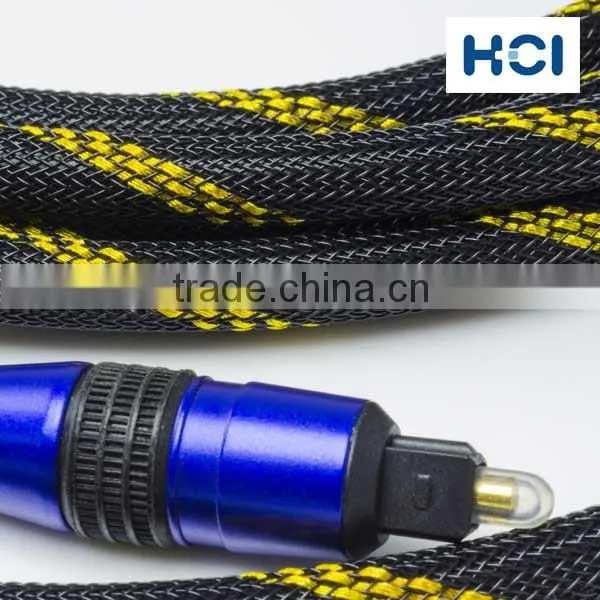

Digital Audio Quartz Glass Optical Fiber Toslink Cable
OGTMPBK101xx / OGTMMRG102xx
(*xx=Length)
§ FEATURE
• Improve attenuation and enhance quality.
• Enhance speed of transmission between user and internet.
• Attenuation Value under 2dB / m
• Superior Durability & Flexibility
• Ease of Handling, Connection and Safe.
• Free of Electric Magnetic Interference (EMI) Problem.
• SPDIF with higher bandwidth for digital signal transmission.
• RoHS compliance.
§ APPLICATION
• DVD Player
• Amplifier
• X-BOX
• Set Top Box
• Internet Hub
• CATV
• TV Game

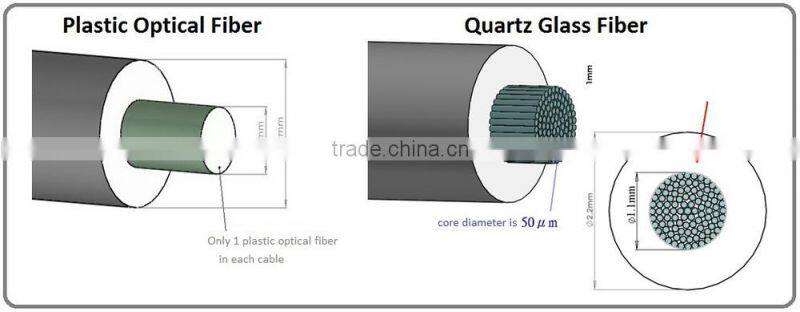

§ COMPARISON OF CABLE STRUCTURE
§ POF & QUARTZ GLASS FIBER CABLE PROPERTIES
| ITEM | POF FIBER CABLE | QUARTZ GLASS FIBER CABLE |
| Unit Fiber O.D. | 1.0mm | 0.05mm |
| Fiber #per Buffer | 1 | ~ 300 |
Bundle Fiber O.D. |
1.0mm | 1.0mm~1.2mm |
| Buffer Fiber O.D. | 2.2mm | 2.2mm |
Cable Jacket O.D. |
4.0mm~8.0mm | 4.0mm~8.0mm |
Fiber Material |
PMMA | Glass |
Cable Bending Ability |
Normal | Great |
Frequency Response |
Normal | Broadband |
Smallest Bending Radius |
20D | 10D |
High Frequency Response |
Normal | Great |
Signal Transmission Response |
Normal | Great |
Cable Flexibility Test |
Normal | Great |
Temperature Stability |
Normal | Great |
Operating Temperature |
-20~70°c | -20~70°c |

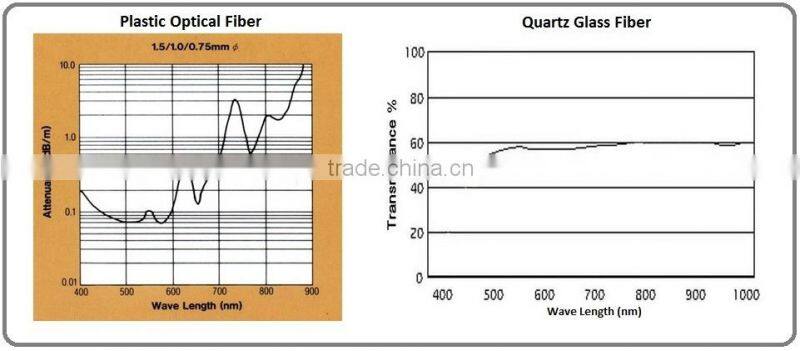

§ POF & QUARTZ GLASS FIBER CABLE TRANSMITTANCE
§ FIBER CABLE COMPARISON OF PHYSICALITY FOR PERFORMANCE
| # | ITEM | PLASTIC OPTICAL FIBER CABLE | QUARTZ GLASS FIBER CABLE |
| 1 | High Frequency response | Bad | Great |
| 2 | Signal Transmission Response | Normal | Great |
| 3 | Smallest Bending Radius | 20D | 10D |
| 4 | Acceptable Angel Degree | 60° | 65° |
| 5 | Optical Transmission Rate (Typical value at λ=650nm ) | 50% | 60% |
§ PRODUCT DETAIL
♣ What is Toslink?
Toslink cable (also known as an SPDIF Digital Optical cable) is composed of an optical fiber cable with an SPDIF connector at either end. The name TOSLINK comes about simply from the conjunction of the two words “TOShiba-LINK” and is a registered trademark of the Toshiba Corporation. Generically a Toslink cable is called an SPDIF Optical Cable.
TOSLINK technology is commonly found in video and audio equipment. With the recent improvement to this technology this can also increasingly be found on a range of newer Dolby Digital surround sound receivers.
♣ What can make a difference in the sound of digital signal?
The sonic differences among digital audio cables are caused by jitter (also known as clock phase noise), which occurs as digital processors intermittently lose track of the digital bitstream. Jitter spreads the digital data out over time, smearing or blurring of the sound after the digital-to-analog reconstruction. In short, jitter degrades sound quality by losing parts of the signal and replacing them with noise and distortion.
♣ Why quartz glass fiber is better than plastic fiber?
As we know, Plastic fiber Toslink is more common than quartz glass fiber Toslink in audio market. Due to insufficient clarity, plastic fiber is high attenuation of light, high dispersion, and is not enough bandwidth to create an inherently superior connection.
Data grade quartzglass optical fiber provides ultimate purity than plastic fiber, and will not haze or discolor over time like plastic will. Thus ensures an uninterfered signal transmission channel to deliver the most accurate digital audio data.
HCI quartz glass optical fiber Toslink cable is constructed from 400 individual strands of 0.05mm data grade broadband quartz glass optical fibers to minimize jitter, providing sharper, cleaner leading edges on the digital waveform.

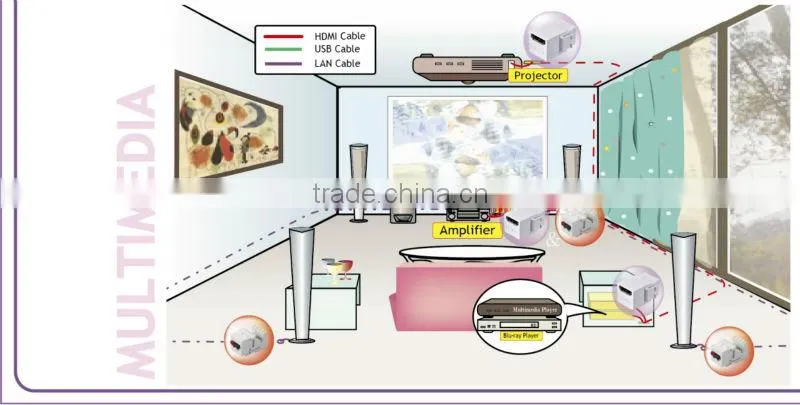

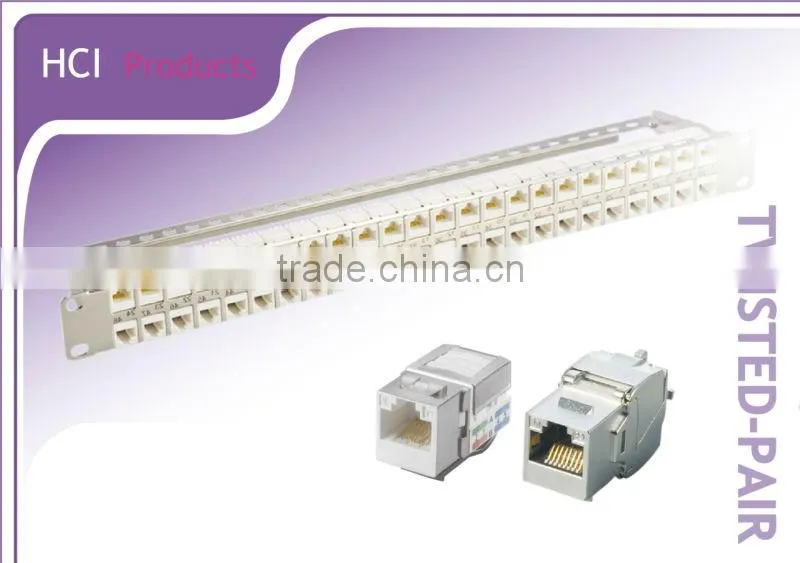

TWISTED-PAIR MULTIMEDIA OPTICAL FIBER OEM / ODM
OEM & ODM: Why HCI?
One of Taiwan’s leading supplier oftelecommunications structured cabling system.
Provide total solution, from design to production with fast turn around time and the best price.
Founded in 1975 and over 25 years experience in OEM/ODM projects.
Your reliable global partner!
