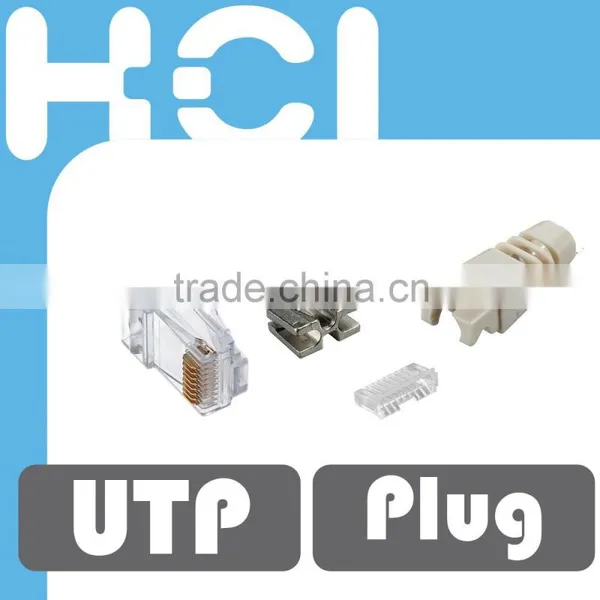

RJ45 Unshielded 8P8C Connector Modular Plug
0028BR3502
§ SPECIFICATIONS
- Patented.
- RoHS Compliant.
- Meet FCC CFR 47 part 68 and IEC 60603-7.
§ PHYSICAL
-Housing: Polycarbonate (PC), UL 94V-0 Rated.
-Contact Blade: Phosphor bronze, selective Gold over Nickel plating.
§ MECHANICAL
- Plug Mating Life: 750-Cycle.
- Cable to Plug Tensile Force: 20 lbs (89N).
- Temperature: -40°F~158°F (40°C~70°C).
- Type of Contact Blade: 2-Prong for stranded wires, Angled 2-Prong for solid wires,
3-Prong for both stranded & solid wires.
§ ELECTRICAL
-Current Rating: 1.5Amps.
-Insulation Resistance: 500 megohms minimum.
-Contact Resistance: 20 milliohms maximum.
-Dielectric Strength Voltage: 1000V AC (RMS 60Hz).
