Aluminum Housing IP67 Waterproof 5000K 70W Modular LED Street Light
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Nichia High Power LED
Input Voltage(V):
90~264
Lamp Power(W):
145
Payment & Shipping
Payment Methods:
Port of Shipment:
TAIWAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Housing IP67 5000K 35W Module Type LED Street LightNegotiableMOQ: 10 Pieces -
Easy Installation 3000K 70W Module Type LED Street LightNegotiableMOQ: 10 Pieces
-
Aluminum IP67 IP Rating Outdoor 5000K 100W Modular LED Street LightNegotiableMOQ: 10 Pieces
-
Intelligent Modular LED Street LightNegotiableMOQ: 10 Pieces
-
Easy Maintenance Outdoor 5000K 130W Modular LED Street LightNegotiableMOQ: 10 Pieces
LED Light Source
Nichia High Power LED
Input Voltage(V)
90~264
Lamp Power(W)
145
Lamp Luminous Flux(lm)
8000~19200
Lamp Luminous Efficiency(lm/w)
130
Color Temperature(CCT)
Pure White
Working Temperature(℃)
-40, 70
Lamp Body Material
Aluminum
IP Rating
IP67
Place of Origin
Taiwan, China
Brand Name
Private Labeling
Model Number
LED Lighting series
Product Description

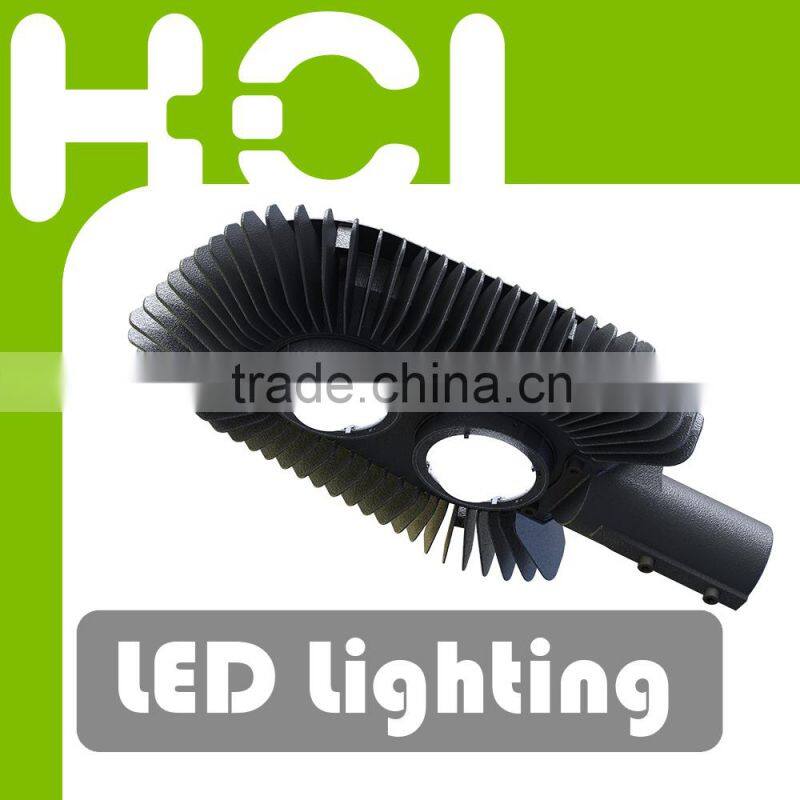

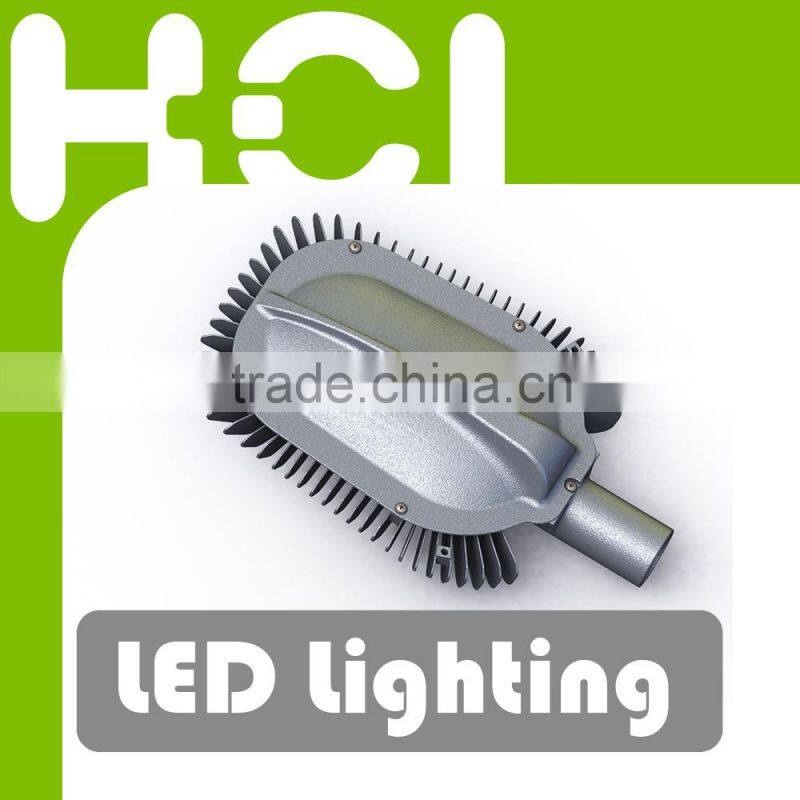

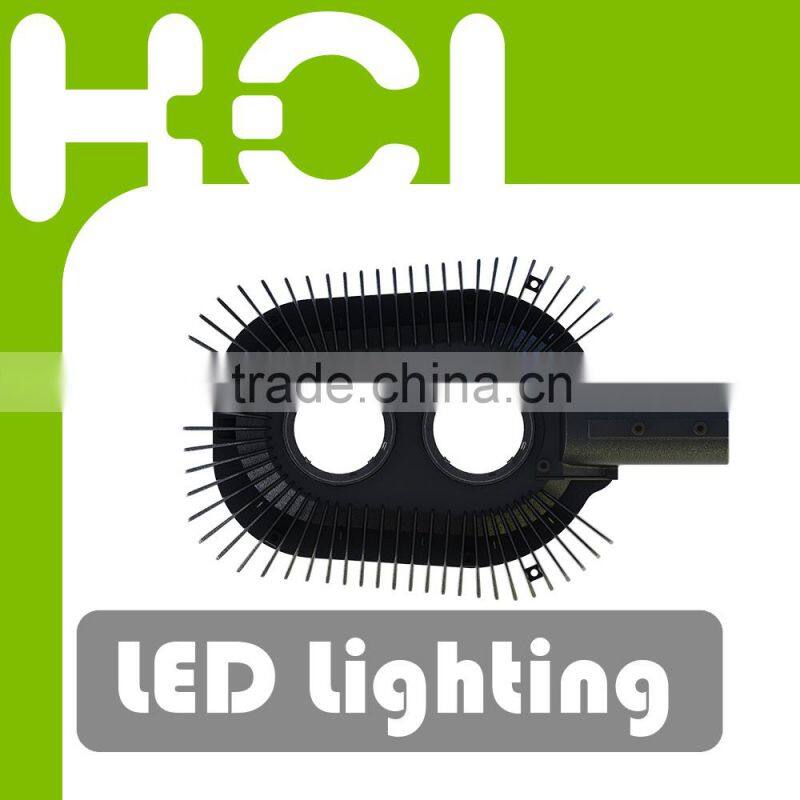

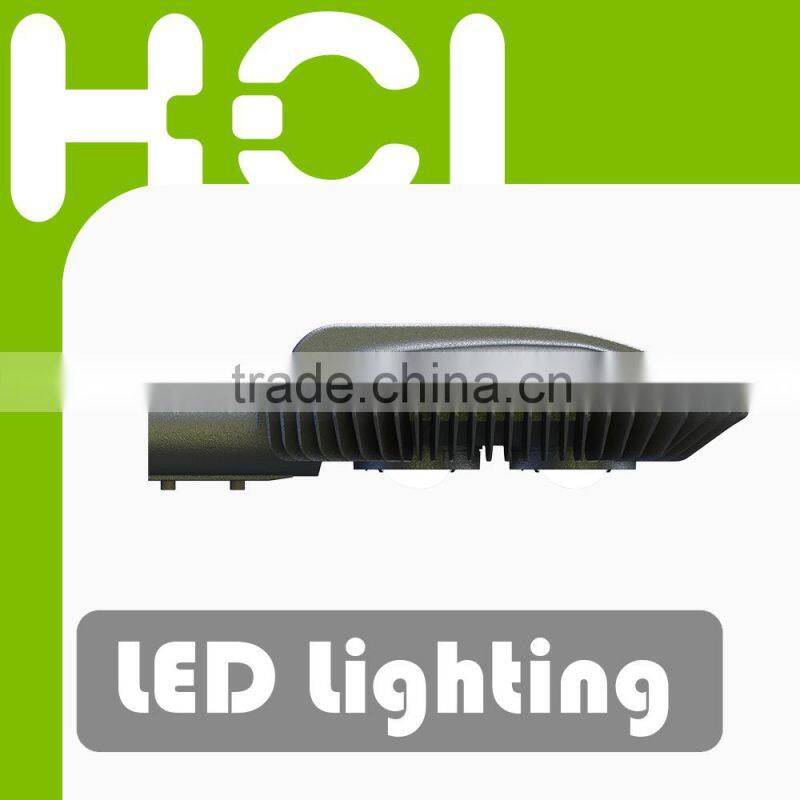

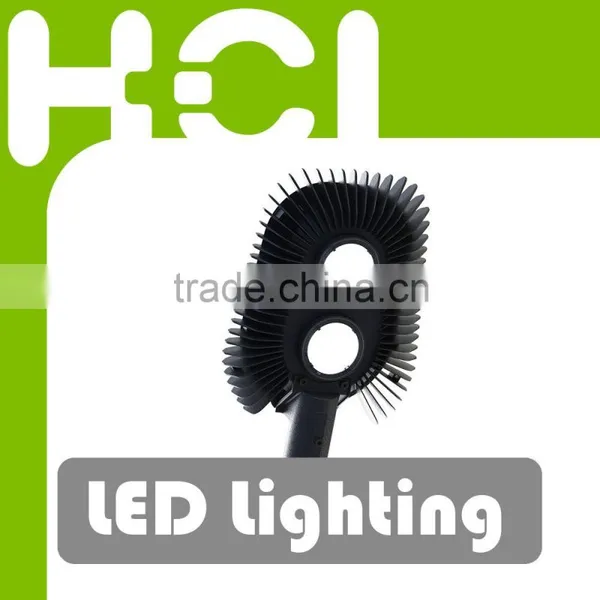

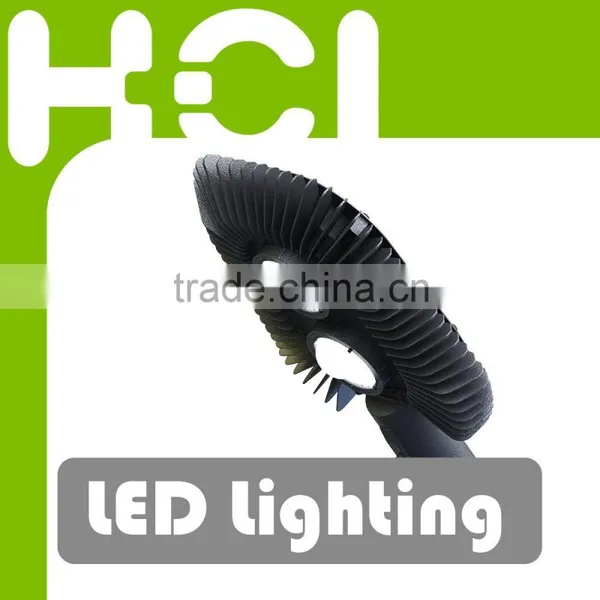

Aluminum Housing IP67 Waterproof 5000K 70W Modular LED Street Light
LED Lighting series
§ FEATURE
- Detachable Modules
- Tool-Free Hot-Swap
- Upgradeable
- Multi-Function Expandable
- Hot-Swappable via Robotic Arm
- Quick Maintenance
- Thermal Optimal Design
- Self-Diagnosis
- Intelligent Illumination Management System
§ OVERALL ADVANTAGES
- Complete luminaire modularization. Easy to assamble. High production yield rate. Easy to maintain and reduces storage/distribution costs.
- Standardized connectors. Allows many companies to collaborate together and share the market.
- Standard: Standardization allows official standards to be created. Buyers won't have to worry about running out of replacements.
- Environmental: Only failed component needs to be replaced. Other parts of the luminaire can continue to be used.
- Intelligent: Smart controls improves product performance.
- Effective: Integrated sensors to reach maximum maintenance efficiency.
- Multi-Purpose: Use in roadway, projection, high bay, interior, medical, naval, sportfield, argricultural, etc.
- Multi-Feature: Combine with latest technologies to provide advanced features, such as surveillance.
- All modules can be replaced using a robot or mechanical tool.
- Integrate with Internet to provide the sensor backbone for a smart city.
§ LUMINAIRE FIXTURE
- Standardized connectors.
- Easy to assemble and maintain.
- Design useful in both interior and exterior fixtures.
- Stanrdarized components are easier to be accepted by the market.
- Light weight, low manufacturing costs.
- Can be disassembled to lower import tax.
- Assemble locally at exported countries.
- All components are replaceable, decreasing maintenance costs
- Easy integration with smart controls.
- Luminaire manufacture cost is only 75% compared to other companies.
- Modularized slots can install multi-purpose mechanisms(Modules).

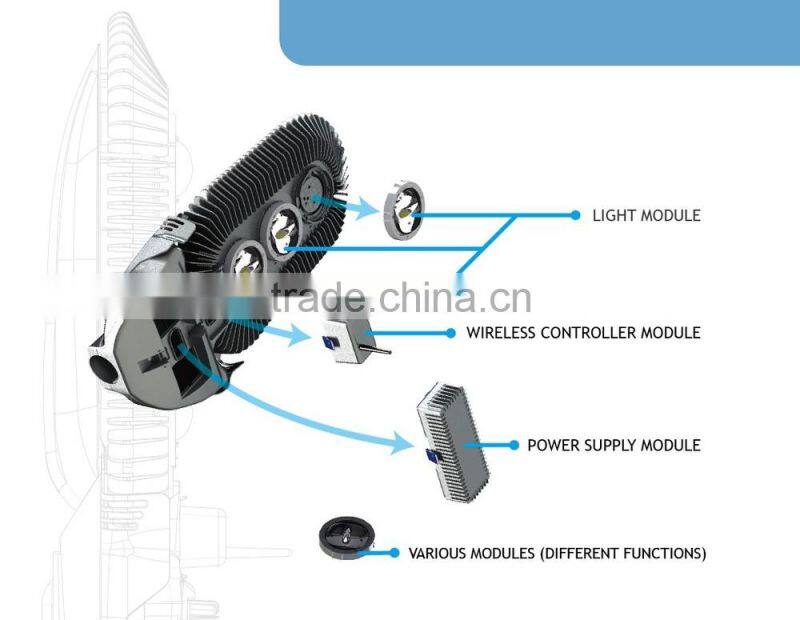

§ LED / SENSOR / CAMERA MODULE
- COB LED light source. Low cost and long life.
- Glass LENS with high lumen efficiency.
- Easy to remove and maintain. Best in industry.
- Innovative design allowing automated production.
- Usable in both interior and exterior luminaires.
- Upgrade to better modules simply through replacement.
- Pins connection prevents misplugged modules.
- Multi pin allows smart sensors to be implemented.
- Multi-purpose module can be used as a sensor or a surveillance camera.
- Module swappable using a robot or mechanical tools.
§ POWER SUPPLY
- External module design, getting optimum heat dissipation.
- Estimated module life 8~10 years.
- Standard connector allowing other companies to joint manufacture items.
- Easy to remove and maintain.
- Usable with other luminaires.
- Hot swappble using a robot or a mechanical tool.
§ SMART CONTROLLER
- External modules prevent heat transfers.
- Esetimated modul life 6~8 years.
- Standard connector allowing joint production with other companies.
- Easy to remove and maintain. High stability.
- Energy saving. Power consumption of less than 1W.
- Safe circuit design. When controller fails, luminaire will stay lighted.
- integrates sensor, control, and communication features.
- Hot swappable using a robot or mechanical tools.
§ SMART CONTROL SYSTEM FEATURE
- System can choose between different OS and database servers depending on different depolyment requirements, such as: Win xp/7/8, Win server2008, Data Base-MS SQL, My SQL, Oracle, etc.
- Control remote modules through wired and wireless networks.
- Combination of GUI and maps to provide accurate positioning and grouping of operational equipment.
- Database capable of accurately record power consumption, status reports, and maintenance records for single, group or all modules available.
- System can generate reports depending on user's needs, allowing better maintenance applications.
- System can predict/display the wellbeing of network equipment using sensor report data.
- System can adjust settings and controls in real time to cope with dynamic environments or events.
- General public can report broken streetlights using WEB/APP/GIS.
- Maintenance Repair: System can issue repair tickets using APP/Mail/Fax to inform maintenance personnel to carry out system checks or repairs.
- Immediate reports can be made using APPs after a maintenance repair has been carreid out.
- Dimming: Control lights to turn on, off, dimming, or flash in different magnitudes (single, group, or all lights).
- Scheduling: User can adjust module dimming schedules. It allows adaptation to seasonal daytime and climate changes.
- APP enables on-site control of single or grouped lightings.
- System can be combined with other intelligent systems to provide better applications in a smar city setting.
§ SPECIFICATION
| SPECIFICATION | DESCRIPTION |
| Lighting Total Power Consumption | 70W |
| LED Power Consumption | 54W / 92W / 125W / 145W |
| Input Voltage Range | 90~264V |
| Rated Current | ≤0.3 A |
| Power Factor | >0.95 |
| Light Source | Nichia High Power LED |
| Optical Design | Special Batwing & Asymmetrical Light Patterns |
| LED Luminous Efficiency | ≥ 130 lm/W(AC) / 131 lm/W(AC) / 125 lm/W(AC) / 120 lm/W(AC) |
| Initial Luminaire Light Output | 8000 lm~19200 lm(±5%) |
| Color Rendering Index | >70 |
| Color Temperature | 5000K |
| Housing | Aluminum with Anti-Corrosive Metallic Lacquer |
| Housing’s Dimension | 720(L) × 340(W) × 180(H)mm |
| Installation Tube Diameter | 60mm(2.36”) |
| IP Rating | ≥ 65(Light Engine 67 / Power Supply : IP67) |
| Anti-Static Temperature | ≥40KV |
| Operating Temperature | -40~+70℃ |
| Storage Temperature | -50~+100℃ |
| Illumination Management System | Timing Setting (ON/OFF/Dimming /Flashing), Energy Statistics, Error Notification |
