ceiling grids
1.Material:hot dipped galvanized steel coil
Zinc coating: >120g/m2
Print coating:Double Face
2.Product feature:
Rust and corrosion free ceiling,high durability and tensile strength.
Anti-oxidization,wear resistant.
Bearing demands of various ceiling systems and particular project requirement.
For lay in ceiling tiles,mineral fiber board and metal tiles
Specification:ceiling grids
Name | Type | Dimension(mm) | Width(mm) | Length(mm) | Unit |
Main tee
| 38T FUT | 38×24 | 24 | 3600 | Piece |
32T FUT | 32×24 | 24 | 3600 | Piece | |
32T FUT | 32×24 | 24 | 3600 | Piece | |
Cross tee | 38T FUT | 38×24 | 24 | 600 /1200 | Piece |
32T FUT | 32×24 | 24 | 600 /1200 | Piece | |
26T FUT | 24×24 | 24 | 600/1200 | Piece | |
Wall angle | L-shaped | 22×22 |
| 3000 | Piece |
L-shaped | 20×20 |
| 3000 | Piece | |
L-shaped | 24 X 24 |
| 3000 | Piece | |
Other sizes are available on customer’s requirement | |||||
ceiling grids
FUT !CKM!exposed ceiling t grid
Advantage:
1. Convenience in installation, it shortens working time and labor fees.
2. Neither air nor environment pollution while installing. With good effect for space dividing and beautifying.
3. Using fire proof material to assure living safety.
4. Can be installed according to practical demands.
5. The physical coefficient of all kinds Suspension Ceiling T bar are ready for customer and designers' reference and request.
Install:
1. The Suspension Ceiling T-grid is the light style. It is hung according to strict requirements. Then put the sound absorption board on the Ceiling T-grid .
2. Hang the Ceiling T-grid with H light steel channel. Insert the board into the Ceiling T-grid .
3. Set the PVC plasterboard on the Suspension Ceiling T-grid. There are 15 plaster points which will be put with the lines and set with nails.
Detailed Production Shows
ceiling grids types show:

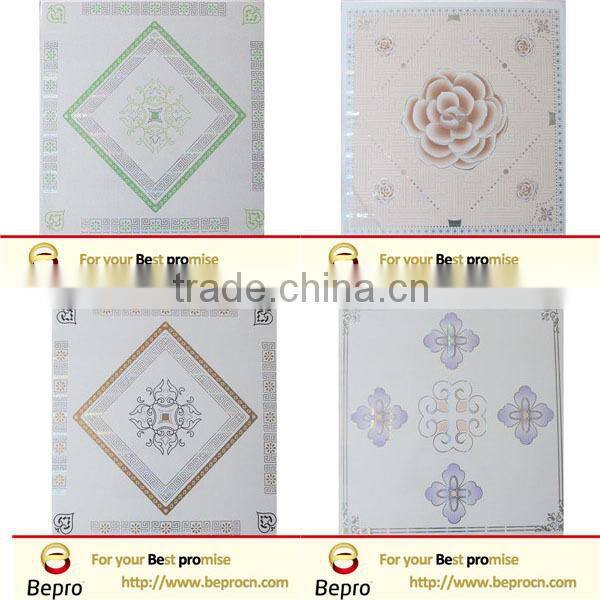

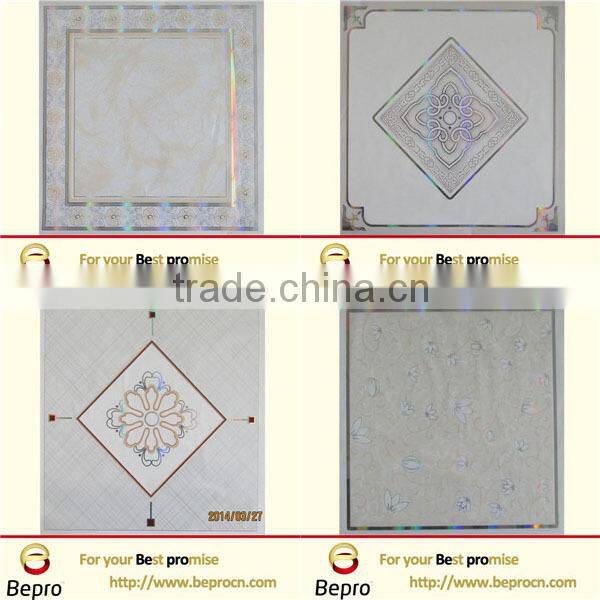

ceiling tiles products shows
When can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your email so that we will regard you inquiry priority.
How can I get the sample to check your quality?
After price confirmation,you can require for samples to check our quality.
If you just need a normal sample which we have in our stork,we will provide you sample for free,
as long as you afford the express freight.
How long can I expect to get the sample?
The sample will be ready for delivery in 3-5 days. The sample will be send to you via express and arrive in 3 to 5 workdays.You can use your own express account or prepay us if you don't have an account. Also we can discuss about the express cost with each other!
What about the lead time for mass production?
Honestly,it depends on the order quantity and the season you place the order.
Usually,if just one or two container,the lead time is 15days.
More detailed information about ceiling t grid products please feel free to contact us for further discussion.
Hope to establish good cooperation relationship with all kindly customers from all over the world.
Tel:0086-0539 7156550 / 7156551
Mobile: (0086) 15318552377
WeChat:lucypeng1012
QQ:624775407
Skype: lucy_peng1
