Specifications
Hand-push Road Marking Machine1.Paint type: cold solvent paint,water-based
2.100-450mm

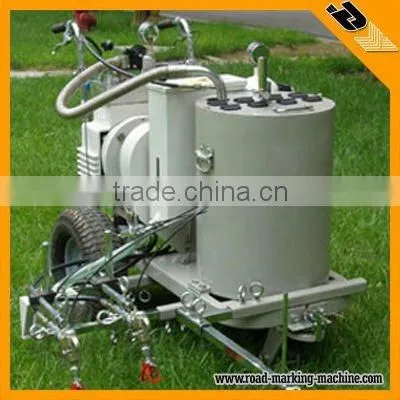

DY-HAL-I Hand-push Road Marking Machine
DY-HAL-I Hand-push Road Marking Machine is mainly suitable for the road, the parking lot, the airport, the gas station,
the company factory district and spreads delimits to mark the straight line, the dashed line, the curve, the zebra crossing, the writing, the arrow, the graphic mark etc.
Main feature of DY-HAL-I Hand-push Airless Road Marking Machine
1. It is easy to operate.
2. It is used for small project eg: highway, parking, lane marking etc.
3. It can spray glass beads which makes line with reflect function to improve the warning.
4.Double new type hand spray guns own hard side columnar reverse wastewater nozzle(17/25), which makes the site discharging very convenient and fast; the non-arc nozzle ensures the base line collimated. The can be used for abnormal spray, such as spray arrow-head and so on.
5.The prepared high illuminating lamps provide convenience for the construction at night. The flash lights which can freely adjust the flicker frequency largely improve the safety in construction.
Technical data for DY-HAL-I Hand-push Airless Road Marking Machine
No. |
Item |
Technical Data |
1 |
Engine |
Japanese Robin 6.0HP or Honda 5.5HP four-stroke air-cooled gasoline engine. |
2 |
Marking width |
100~450mm |
3 |
Paint pump |
max pressure is20Mpa (working pressure is 10-15Mpa), max flow: 8.5L/min |
4 |
Front Wheel directional device |
It can lock the front wheel to ensure the road-marking machine to operate freely in straight line or turning. |
5 |
Lighting and Warning function |
Adjustable flicker frenquency for flash lights |
6 |
Spray gun |
Double new type hand spray guns |
7 |
Capacity of paint tank |
65L |
8 |
Total weight |
180kg |
9 |
Dimensions |
1350*1200*950mm(L*W*H) |
Note:
1. Option for line driver DY-RB-II for operator to realize automatic function.
2. B type is stainless steel spray system, which is suitable for water based paint.
3. Except all the functions of B type, C type equips with a micro-electric control system, which consists of Micro-electric controller, on-off coder, electromagnet, special gun bracket and so on. This system can be set four kinds of marking way according to the national road marking standard, and realized fully control.

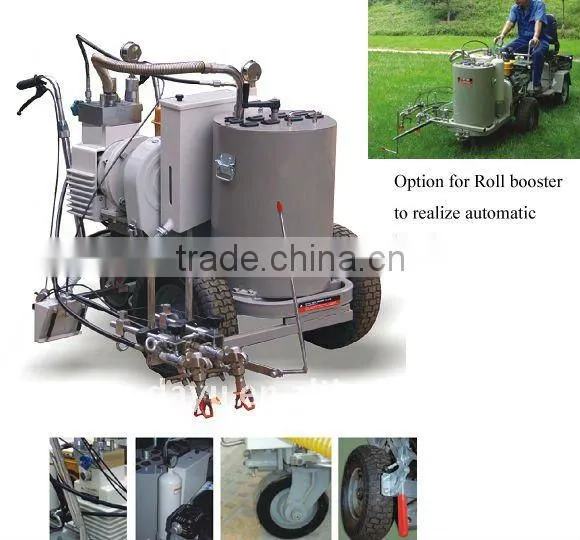

Picture for Line marking machine
