Specifications
DY-STC Sitting Two Component Road Marking Machine1.Paint tank:200L+50L
2.Glass Beads Bin: 50L
3.Micro-electronic control

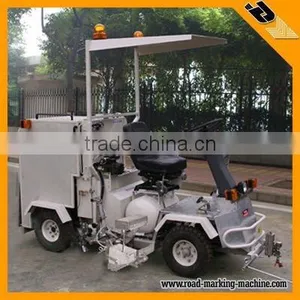

DY-STC-I/II/III Sitting Two Component Road Marking Machine
Description of DY-STC-I/II/III Road Marking Machine
The two component road marking machine is a new type and superior road marking and popular in recent years. It is different from thermoplastic and cold plastic road marking, which forms coating relying on chemical reaction instead of physical drying such as temperature falling or solvent (water-based) volatilizing.
Parameter of DY-STC-I/II/III Road Marking Machine
No. |
Item |
Specs |
1 |
Engine |
Imported 20HP air-cooled electrical starting gasoline engine. |
2 |
Driving System |
Imported oil pressurized continuously variable speed transmission system. |
3 |
Driving Speed |
0-20km/h |
4 |
Marking Shoe (I) |
The upper part is equipped with automatic stirrer filled with paint and hardener. Standard Component: 100m and 400mm. |
5 |
Marking Shoe (II) |
The upper part is equipped with automatic stirrer filled with paint and hardener while the lower part equipped with acentric shaft with special treatments. Standard Component: 100mm and 400mm. |
6 |
Marking Shoe (III) |
Equipped with four new-type air-operated spray guns, one hand spray gun with an extension pipe. Marking Width: 100-1000mm. |
7 |
Paint tank |
200L + 50L |
8 |
Glass beads Bin |
50L |
9 |
Lighting and warning function |
Equipped highlight light marking the night marking operation more convenient. |
10 |
Micro-electronic control system |
There are many marking standard control methods in the system. |
11 |
Size |
2900 x 1250 x 1650mm |
12 |
Weight |
680kg |
