Home > Sporting Goods & Recreation > Pool & Accessories > Swimming Pool > Swimming Pool Accessories Water Well Sand Filter With Quartz Sand Filter Media

Swimming Pool Accessories Water Well Sand Filter With Quartz Sand Filter Media

Swimming Pool Accessories Water Well Sand Filter With Quartz Sand Filter Media photo-1
US$ 50 - 599 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PIKES
Model Number:
V series
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name PIKES
Model Number V series
Type Other, Filter, top mount

       swimming pool accessories water well sand filter with quartz sand filter media



Product Description

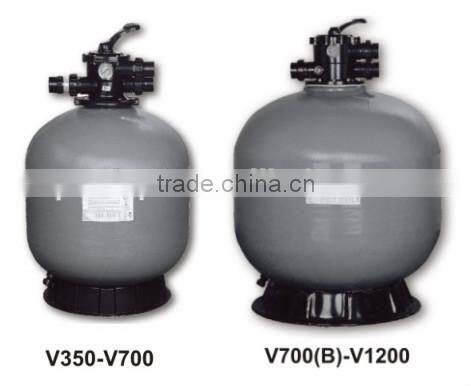

Bobbin-wound fiberglass reinforced tank is still the most popular standards in the industry after all. With UV-resistant material used, it is able to operate under prolong sunlight for years of reliability. "V" series(V350 - V1200) filters are equipped with a six-position, clamp style multiport value and ABS laterals.



Highlight Features:

 * Max operating pressure 36 psi/2.5 bar.

* Max temperature of 43°C(109°F).

* Universal standard of union connection provided.

* Suggested size of media:0.5-0.8mm.

swimming pool accessories water well sand filter with quartz sand filter media

Technical Characteristics:

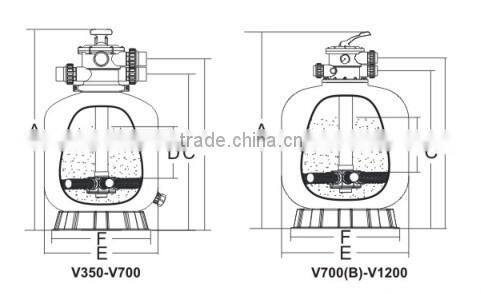

Model

 Filter Area(m2)

    Valve Connections

 Max Flow Rate

Grave(kg)

V350

0.09

1.5inch   50mm

72lpm    4.32m3/h

20

V400

0.13

1.5inch   50mm

108lpm   6.49m3/h

35

V450

0.16

1.5inch   50mm

135lpm   8.10m3/h

45

V500

0.22

1.5inch   50mm

185lpm   11.10m3/h

85

V650

0.32

1.5inch   50mm

260lpm   15.60m3/h

145

V700

0.40

1.5inch   50mm

325lpm   19.50m3/h

210

V700(B)

0.41

2.0inch   63mm

336lpm   20.16m3/h

215

V800

0.50

2.0inch   63mm

415lpm   24.90m3/h

355

V900

0.64

2.0inch   63mm

520lpm   31.20m3/h

470

V900(C)

0.64

2.0inch   63mm

533lpm   32.00m3/h

470

V1000

0.79

2.0inch   63mm

650lpm   39.00m3/h

620

V1000(C)

0.79

2.0inch   63mm

658lpm   39.50m3/h

620

V1200

1.13

2.0inch   63mm

880lpm   51.60m3/h

860

V1200(C)

1.13

2.0inch   63mm

941lpm   56.50m3/h

860

 swimming pool accessories water well sand filter with quartz sand filter media

Model

Filter Area(m2)

Valve Connections

Max Flow Rate

Grave(kg)

V350

0.09

1.5inch   50mm

72lpm    4.32m3/h

20

V400

0.13

1.5inch   50mm

108lpm   6.49m3/h

35

V450

0.16

1.5inch   50mm

135lpm   8.10m3/h

45

V500

0.22

1.5inch   50mm

185lpm   11.10m3/h

85

V650

0.32

1.5inch   50mm

260lpm   15.60m3/h

145

V700

0.40

1.5inch   50mm

325lpm   19.50m3/h

210

V700(B)

0.41

2.0inch   63mm

336lpm   20.16m3/h

215

V800

0.50

2.0inch   63mm

415lpm   24.90m3/h

355

V900

0.64

2.0inch   63mm

520lpm   31.20m3/h

470

V900(C)

0.64

2.0inch   63mm

533lpm   32.00m3/h

470

V1000

0.79

2.0inch   63mm

650lpm   39.00m3/h

620

V1000(C)

0.79

2.0inch   63mm

658lpm   39.50m3/h

620

V1200

1.13

2.0inch   63mm

880lpm   51.60m3/h

860

V1200(C)

1.13

2.0inch   63mm

941lpm   56.50m3/h

860

Detailed Images



swimming pool accessories water well sand filter with quartz sand filter mediaswimming pool accessories water well sand filter with quartz sand filter media



Related Products



 swimming pool accessories water well sand filter with quartz sand filter media

Company Information



GUANGZHOU VIGOR HEALTH EQUIPMENT CO., LTD is a professional manufacturer of swimming pool equipment, swim spa, hot tub, sauna and steam with 20 years industry experience.

Our factory is located in Qingyuan city, one hour from Guangzhou, with more than 10,000 square meters plant area.

We also have showroom and sales office in Guangzhou.

There are own brands of "JOYSPA", "PIKES", "COLLER", "KASDALY" and "THREE T".

Our factory pass "BV" certification by the international professional institutions, strictly enforce the ISO9001 standard production management process.

Now we have professional technical development team, marketing team and excellent after-sales service team.

Our products pass Europe CE certificate, in line with the European standards.

The products are sold throughout Europe, America,  Austraia, Middle East, Central Asia, Africa, ect.

swimming pool accessories water well sand filter with quartz sand filter media

swimming pool accessories water well sand filter with quartz sand filter media

swimming pool accessories water well sand filter with quartz sand filter media

Our Services



1 ) Payment Details: 30% in advance,+70% balance should be paid before delivery.

2 ) Delivery Details: lead time:1x20ft for 15 days;1x40ft for 20 days.

3 ) Port of loading: Huangpu, Guangzhou, Mainland China.

4 ) Discounts are offered based on order quantities.

5 ) Payment Way: TT, Western Union, Money Gram

6)  All products 100% tested

Packaging & Shipping



swimming pool accessories water well sand filter with quartz sand filter media
