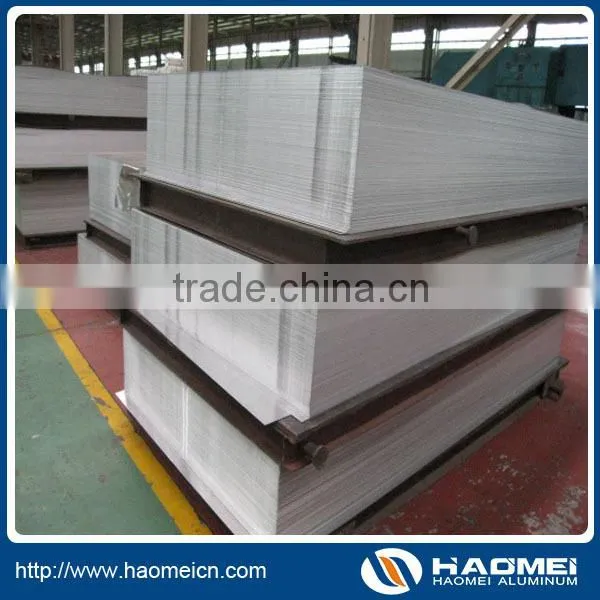

Aluminium Sheet 1050 1100 With Special Offer

Mill Finish Aluminium Plate 1050 1060 1070 1100 3003

About us

Haomei Aluminum is one of leading professional aluminum industrial corporation in China.We mainly produce pure aluminium and aluminium alloy plate/sheet/strip/circle/foil products, such as hot -rolled thick plate, ROPP cap stock, aluminum circle/disc for cookware or traffic sign or lighting, aluminum drilling entry sheet for PCB, aluminum strip for transformer, aluminum baseplate for PS plate, aluminum tread/checkered plate, aluminium pretreated or color coated coil for curtain wall, aluminium stucco for refrigerator, aluminium foil for air ducting etc. With reasonable prices, high quality, wide range products lines and good service, we have exported to Brazil, Mexico, Germany, Italy, US, Australia, Thailand, Vietnam, Bangladesh etc nearly 40 countries.

Application

Aluminium plates 1 series,3 series,5 series and 8 series are widely used in curtain wall, construction material, hardware parts, traffic sign, advertising sign, cabinet etc.

1050 Chemical Composition limits(WT.%)

Si . . . . . . . . . . . 0.25 Zn . . . . . . . . . . . 0.05
Fe . . . . . . . . . . . 0.40 Ti . . . . . . . . . . . 0.03
Cu . . . . . . . . . . . 0.05 Others, each . . . . 0.03
Mn. . . . . . . . . . . 0.05 Others, total . . . . -
Mg. . . . . . . . . . . 0.05 Aluminum........95.00
Note: Value maximum if range not shown.

1100 Chemical Composition limits(WT.%)

Fe+Si . . . . . . . . . 0.95     Zn . . . . . . . . . . . 0.1
Cu . . . . . . . . . .  0.05-0.2 Ti . . . . . . . . . . . . –

Mn. . . . . . . . . . . 0.05     Others, each . . . . 0.05
Mg. . . . . . . . . . . -        Others, total . . . . 0.15
Note: Value maximum if range not shown.

Mechanical Properties

ALLOY&TEMPER

THICKNESS(mm)

TENSILE STRENGTH(Mpa)

YIELD STRENGTH(Mpa)

ELONGATION%

1050-H24

6.0—12.5

95-125

More than 75

More than 3

1100-H14

12.5-40

275

125

10

Specification

ALLOY

TEMPER

THICKNESS(mm)

WIDTH(mm)

LENGTH(mm)

1100, 1145, 1050, 1060, 1070, 3003, 3105, 3005, 3105, 5052,5754,5082,5083

H12,H14,H16,H18,H22,H24,H26,H32,O ect

0.2--350

300--2800

1000--6500

Production procedure

Workshop

Aluminium ingot

Holding furnace

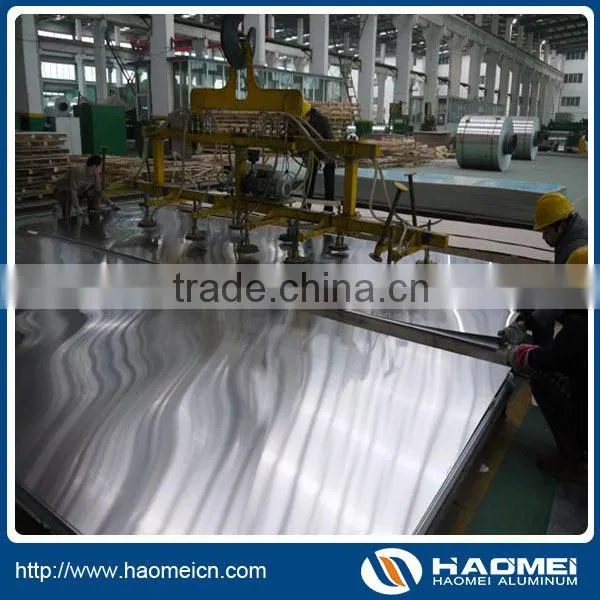

Production photos

Tension Leveling

Paper interleaved

Testing

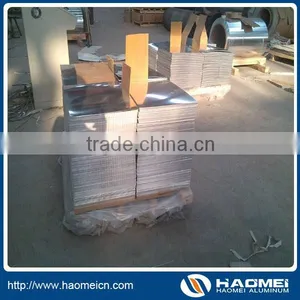

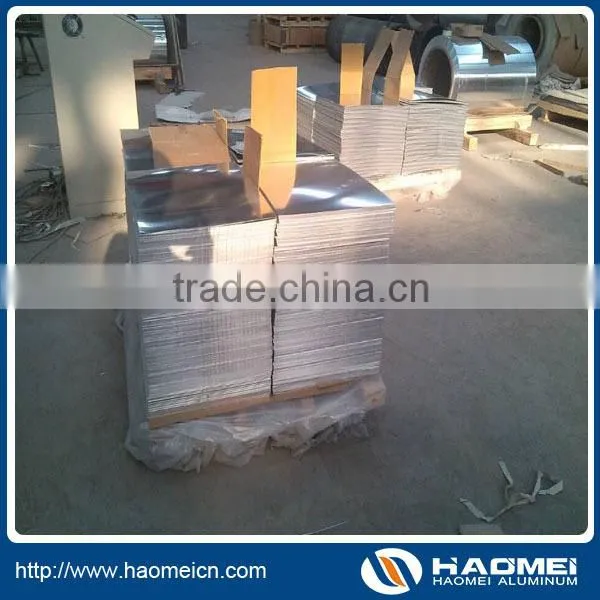

Finished products

Packing and container loading

Our sales team

Happy new year
