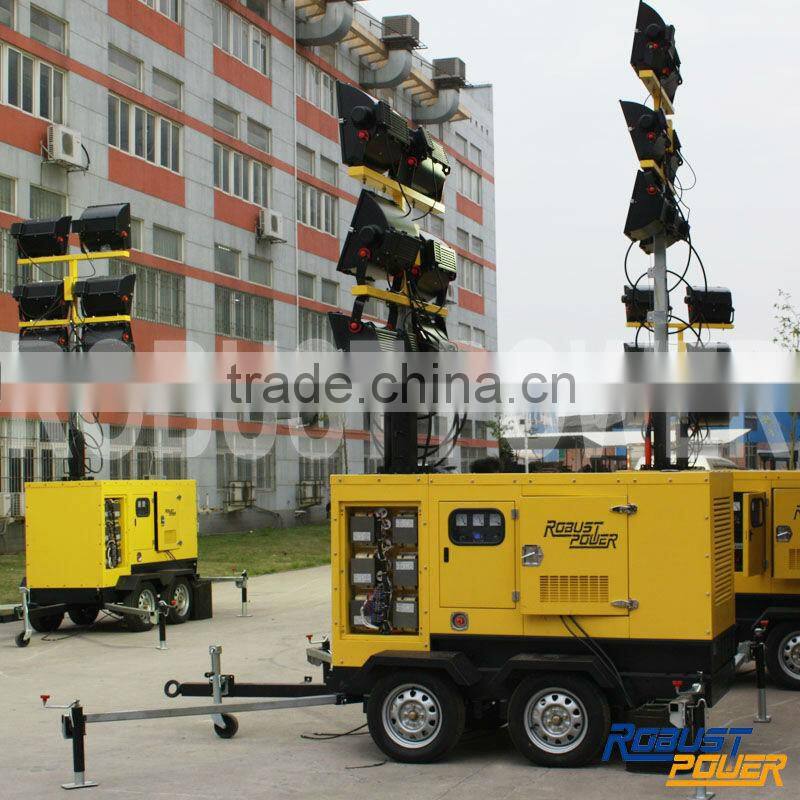

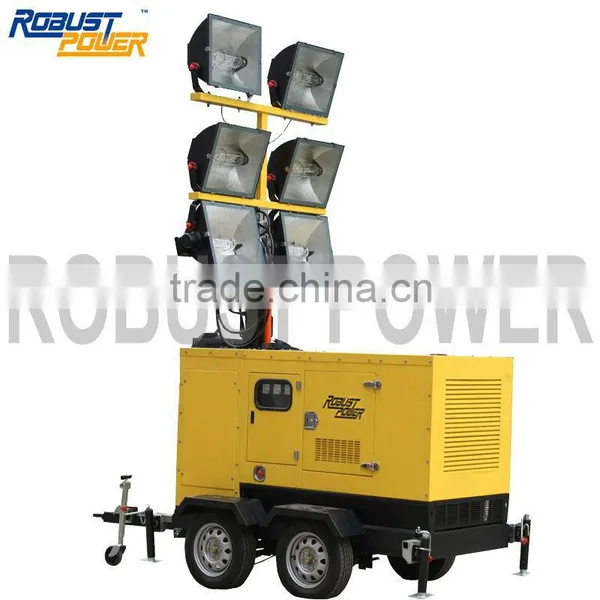

Trailer Generator Movable Lighting Tower RPLT8000

Name: Trailer Generator Movable Lighting Tower RPLT8000
Brand: ROBUST POWER
SKU: 134531209
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

ROBUST POWER

Model Number:

RPLT8000

Fujian Robust Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name ROBUST POWER

Model Number RPLT8000

Power Other, 20KW

Certification CE

Specifications

Trailer generator movable lighting tower RPLT8000
Large fuel tanks providing long time continuous operation.

Trailer generator movable lighting tower RPLT8000

Technical Specifications
Mast
Maximum extention of mast	9m
Elevation	Mechanical / Electric
Raising/lowing mast	Winch(Mechanical)/Button(Electric)
Stages	3
Turning angle	358 degrees non-continuous
Lamp
Total power of lamps	4×1000W
Type of lamp	Metal halide lamp
Light capacity	4×110,000 lumen
Voltage	120,220,230,240
Frequency	50Hz / 60Hz
Lifetime of lamp	5000 hours
Working temperature	≤85°C
Connection Protection index	IP54
Light Coverage	5 to 7 acres
Characteristics of the generator
Model	RD20C
Generator set Prime power	50Hz 20kW
Standy power	50Hz 23kW
Engine model	Quan chai
Engine speed	50Hz 1500rpm
Engine type	4 cylinder,in line,water-cooled
Engine Aspiration	Turbo charged
Alternator model	Wangwantong
Alternator type	4-pole,bushless
Fuel tank capacity	70L
Prime fuel consumption at 100% load	5.6L/h
Working hours	12Hours
Control system	T210 Digital controller
Power Outlets	3
Trailer
Tow hitch	Ring or ball hitch
Stabilier Supports	5 x Manual
Tire Size	70 cm
Anti-wind capacity	≤10
Brakes	Manual
Packing Dimension & Weight
storage	4400mm × 1450mm × 2100mm(Around)
Net weight	1500kg
