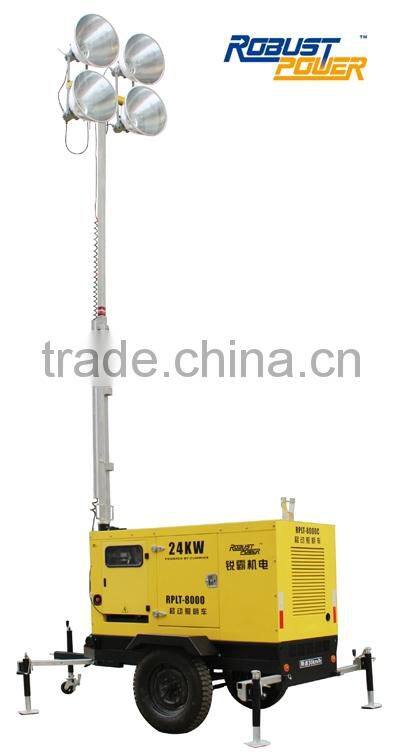

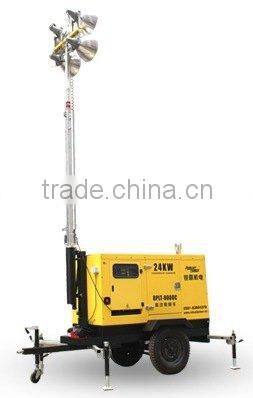

Mobile Light Tower RPLT8000

Specifications

Mobile Light Tower powered by Cummins engine;
358 degree non-continuous;
Mechanical, electric or hydraulic mast are optional;

Model RPLT8000
Technical Specifications
Mast
Maximum extention of mast	9m-15M
Elevation	Mechanical / Hydraulic
Raising/lowing mast	Winch(Mechanical)/Button(Hydraulic)
Stages	3 or 6
Turning angle	358 degrees non-continuous
Lamp
Total power of lamps	4X1000W
Type of lamp	Metal halide lamp
Light capacity	4×88,000 lumen
Voltage	120.220.230.240
Frequency	50Hz/60Hz
Lifetime of lamp	5000 hours
Working temperature	≤85°C
Connection Protection index	IP54
Light Coverage	5 to 7 acres
Characteristics of the generator
Model	RD20C
Generator set Prime power	50Hz 20kW   60Hz 23kW
Standby power	50Hz 22kW   60Hz 25kW
Engine model	Cummins 4B3.9-G1 Diesel
Engine speed	50Hz 1500rpm / 60Hz 1800rpm
Engine type	41 cylinder,in line,water-cooled
Engine Aspiration	Turbo charged
Alternator Type	4-pole, brushless
Fuel tank capacity	70L
Prime fuel consumption at 100% load	5.6L/h
Working hours	12
Control system	T210 Digital control panel
Power Outlets	3
Trailer
Tow hitch	Ring or ball hitch
Stabilier Supports	5 × Manual
Tire Size	70cm
Anti-wind capacity	≤10
Brakes	Manual
Packing Dimension & Weight
Retracted Dimension	4400mm × 1450mm × 2100mm
Net weight	1500kg
