Specifications
1.PLC automatic control, in accordance with GMP2.Filling range and speed can be designed according to your requirements

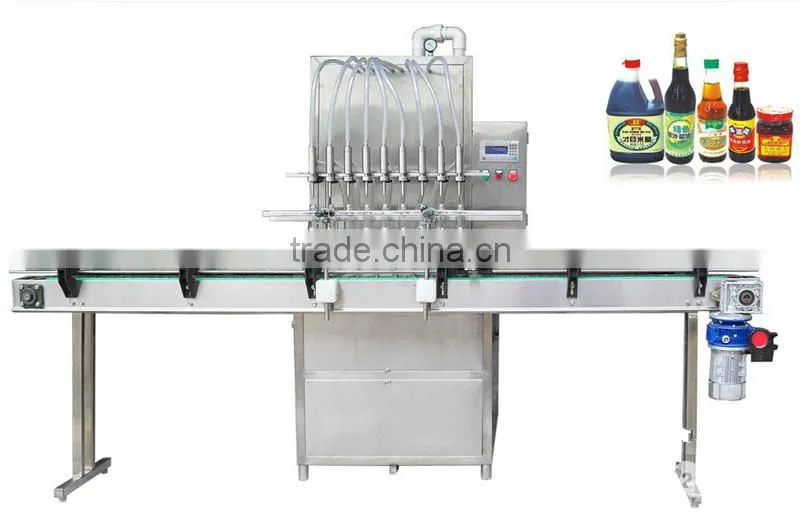

Automatic linear liquid filling machine
Introduction:
Automatic liquid filling machine adopts the piston dosing filling principle, enter bottles, orientation, filling, the bottles are controlled by PLC, in line with the GMP standard. Apply to food, cosmetic, pharmaceutical, pesticide and fine chemical liquid filling.
Technical parameter:
Model : DY-12L
Filling Capacity : 25-1000ml
Bottle diameter : 30~80 MM
Filling speed : 40-70 bottles / minute (refer to the 50-500 range)
Power supply : 220V/380V
Motor power :1.0KW
Consumption (MIN) : 4KGS × 30LITER
Dimensions : 2000 * 870 * 1900mm
Weight : 580KG
Features:
1: Touch screen operation interface.
2: 8 type up and down movement type filling, effectively prevent the bubble.
3: Filling accuracy of ± 0.5%.
4: Filling cylinder and grinding hard chromium treatment unique design of the fill valve is not dripping.
5: The attached no bottle no canned, bottles of automatic stop function.
6: According to the actual situation of the bottle design different positioning device.
7: Convenient cleaning equipment, can be no tool to assemble, online cleaning or high temperature sterilization.
8: Host motor adopts German LENZE or Italian factory brand.
9: PLC programmable control, USES the Japanese Mitsubishi brand.
10: Electric control USES the French Telemecanique label.
11: FESTO pneumatic components adopt Germany brand.
12: Equipment shell material SUS 304 stainless steel.
13: Equipped with in line with the health, safety standard glass shield, shield door opens automatically stop.
