Waste Tire Pyrolysis Plant

Specifications

1.Safety 100%
2.High oil yield 45%-55%
3.On-site guidence supported
4.The best scale and technology
5.Life more than 5 yrs

WASTE PLASTIC, RUBBER, TIRE TO VALUABLE CRUDE OIL



WORKING PRINCIPLE: CATALYTIC PYROLYSIS, COOLING, SEDIMENTATION AND SPLIT-FLOW.



Getting oil from waste plastic is through pyrolysis oiling technique, that is, to break the waste plastic by

heating or by adding some catalyst then to get polymerization monomer, diesel oil, gasoline, fuel oil,

mineral wax and so on. Pyrolysis oiling of waste plastic is not only pollution-free to environment, butalso

can recycle energy effectively. In other words, the pyrolysis oiling is a kind of inverse process of

manufacturing plastic products with raw materials of petroleum in petrochemical industry. According to

the different composition of waste plastics, different catalyst is used for pyrolysis, compared with domestic

pyrolytic cracking oilingtechnology, ours increases the capacity efficiency, and improves the quality of oil.





The production line including following parts:

1. Constant temperature heating system
2. Continuous pyrolysis system
3. Carbon black production system
4. Flammable gas purification system
5. Flue gas purifying system
6. Control Panel







Security and Environmental Conservation



1. Waste gas. With the design of two safety water seal and gas nozzle where waste gas can burn fully, it not only eliminates

the waste gas pollution, but also saves a lot of fuel. In the aspect of dusttreatment, we use ZTC series de-sulfuration dust

remover, so that the dust emission can reach relevant GB13271—2001 standards.



2. Waste liquor. In the step of processing oil, there will cause some weakly acid waste water (50kg waste waste will be

produced for every 1 ton of oil, but small quantity and easy to handle). After neutralizing by adding the weak lye, neutral

waste water has to go through tertiary filtration until it is not harmful, then let it flow into the special evaporation processor

to evaporate and its heat source is flue waste heat of main processor).



3. Waste solid. After catalytic thermal cracking of waste tires, the remaining residue is carbon black, which is a kind of

chemical raw materials.





Models and Parameter:



Model	DY-1	DY-2	DY-3
Capacity per day	6ton	8ton	10ton
Rotate furnace(MM)	2200*4300	2200*4600	2200*5800
structural style	Horizontal rotation	Horizontal rotation	Horizontal rotation
Pressure	ordinary pressure	ordinary pressure	ordinary pressure
Rotation speed	1.2rmp	0.4rmp	0.4rmp
Rotary Motor	4kw	4kw	4kw
type of cooling	water-cooling	water-cooling	water-cooling
Circulating water	1.2t/h	1.5t/h	1.8 t/h
Noise dB(A)	≤62	≤65	≤70



The main oil indexfrom waste plastics.



Item	Unit	Fuel oil
Density	g/cm3	0.82-0.83
Freezing point	oC	10
Flashing point	oC	25
Kinetic viscosity	mPa.s	8
Fuel value	kJ/kg	9500





















FInal output: Crude Oil





Pictures of main the whole production line



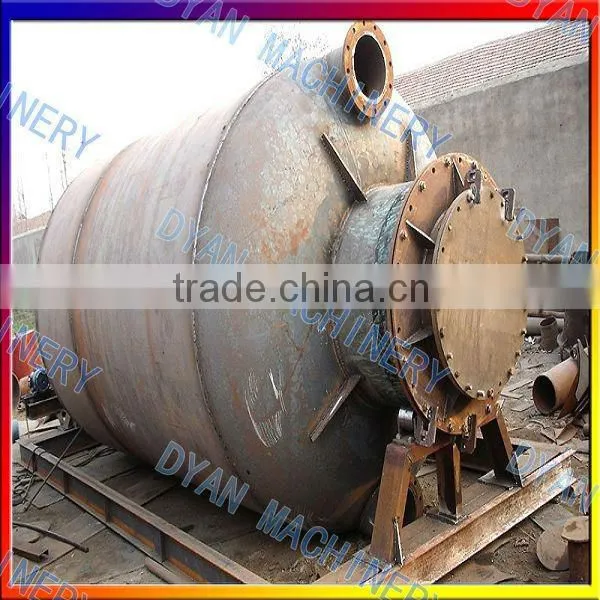

Reactor







The Innre durm of Reactor







Delivery pictures:
