Home > Products > Food Processing Machine > Olive Oil Press Machine/Oil Press Plant

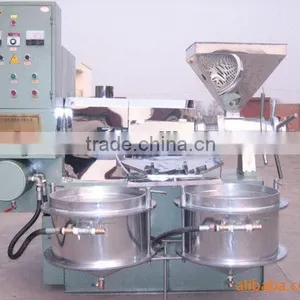

Olive Oil Press Machine/Oil Press Plant
- 50 Set / Sets per Month
- Qingdao China
- T/T D/P D/A Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Peanut Oil | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 200-300KG/H | Place of Origin: | Henan, China |
Brand Name: | DYAN | Model Number: | DAOPH088 | Voltage: | 380V, 50Hz |
Power(W): | 7.5KW | Dimension(L*W*H): | 2.0x1.5x1.7m | Weight: | 1500-2000kg |
Certification: | ISO,CE,FDA,SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Oil Press Plant1.automatic control
2.power saving up to 40%
3.vacuum filter residue
4.screw press, CE proved
Olive Oil Press Machine/Oil Press Plant
Advantages:
1.Saving labor: it can save 60% labor for equal output and 40% labor cost per day for one
or two people are able to make production.
2. Widely used: it can be used to completely press more than 20 kinds of oil crops, such as
peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax by third levels for one time.
3.Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil
quality and meet the standard of health quarantine .
4.Small land-using: an area of 10-20 m2 workshop can meet the need of production.
5. Vacuum filter: it is able to simply filter the crude oil after pressing.
6. Environmental: comparing with the traditional oil press machine,
it is about to meet the standard of green environment .
7. Low investment, get more profit.
Working principle:
Dynamic slow down to spindle,installed in the spindle of squeezer with rotation, screw the oil between
constantly advancing, because the chamber and the space between the squeezer reduced gradually,
and the density of oil increase, so the pressure is gradually increasing.
In the process of pressing, because the machine is selfheating, increased the temperature of principal
machine by automatic temperature control device,and thereby reduced labor intensity,the body's wear,
saving of labor, saving electricity and time saving.Between the oil particles ,friction in oil plants and parts,
produced the quantity of heat.
This constitutes two essential factors in the pressure of pressing and the process of heating, destroyed the
histocyte of oil plants, then oil overflowed from the oil line, meal will be pushed out between its head and
mouth.When overflowing oil inflowed through the oil pan into oil filter barrel, the air in the barrel will be
pumped out by the vacuum pump.Negative pressure will be formed in the barrel,oil will be pumped into
barrel through the filter cloth,and scraps was isolated on the filter cloth, and what we got is the pure oil.
Oil yield of raw materials:
raw materials | oil yield % | bread thick mm | residual oil rate of dry bread % |
sesame seed | 43-45 | 1.0-1.5 | ≤7 |
peanut seed | 42-44 | 0.8-2.0 | ≤8 |
rapeseed | 28-43 | 1.0-1.5 | ≤8 |
sunflower seed | 42-45 | 1.2-1.5 | ≤8 |
soybean seed | 15-17 | 0.8-1.5 | ≤7 |

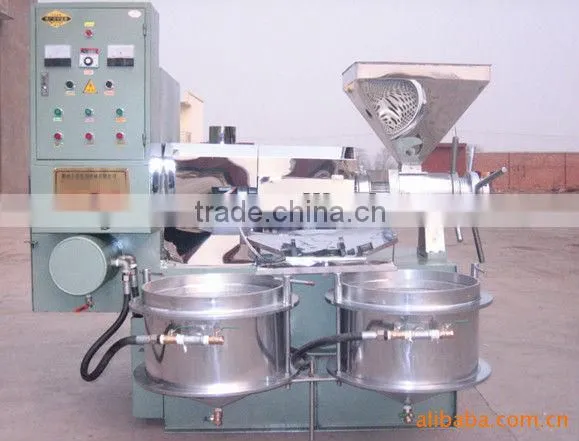

Pictures for refer:
