Specifications
briquetting machine supplier1. 500kgs/h
2. lower power consumption
3. durable wearing parts
4. 50/70/80mm models
briquetting machine supplier
1. In all kinds of briquetting machines, biomass briquette press is to compact the powder material into biomass briquettes.
There are two types of biomass briquette machines, screw press and ram press. Compared to reciprocating piston briquette
press, screw type biomass briquette machine have its good features.
2.From the shapes of products, we can differentiate how the biomass briquettes are produced.
The product can be different shapes of column with about 10cm to 50cm long such as hexagon, cylinder or quadrangle shape.
If the center of column has a hole, the biomass briquettes are from screw briquetting press. No hole in center, from ram
briquetting press.
3.Screw type briquette press can produce biomass briquettes with higher compaction. After feeding, the material is conveyed to
the briquette forming head by a revolving screw shaft driven by electrical motor or biodiesel motor. The screw shaft is the main
part of biomass briquette press. The screw distance become smaller and smaller along the screw shaft to briquette froming
head. With the decreasing screw distance, the material endures bigger and bigger pressure. At end, different shapes of biomass
briquettes form out under huge pressure from revolving screw shaft. Because of the shaft, there is a hole left in the center of
biomass briquette column.
4.The screw pressure is bigger than jam pressure, so the biomass briqettes have high density which is easy for transport and
storage. Compared to solid, the hollow in center of biomass briquettes makes for burning. With these good features, screw type
biomass briquette press is more popular in the production.

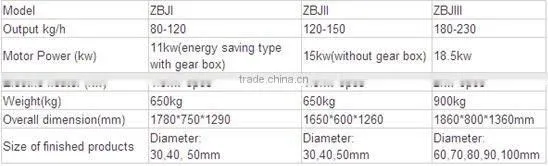

5.After years' experiment, we develop this kind of briquetting machine with capacity from 80kg per hour to 230kg per hour.
The motor of biomass briquette machine can be 11kw/15kw/18.5kw/22kw-3phase-380v-50hz electrical driven. Our briquette press can work 16 hours per day.
of briquettes Machines
7. for further details , please feel free to contact with me as follow
