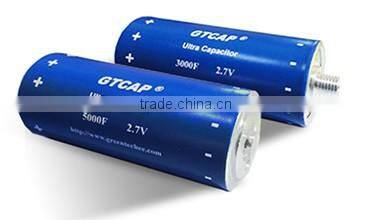

GTCAP 2.7V 5000F Supercapacitor Battery With Terminal Type Super High Farad Capacitor

GTCAP 2.7V 5000F supercapacitor battery with Terminal Type super high farad capacitor

1. Brand: GTCAP
2. Capacitance: 5000F
3. Part Number: GTSPP-2R7-508ZW
4. ESR: 0.23ohm DC  0.21ohm AC 1KHz

5. Operating Temperature: -40°C ~+70°C
6. Cycle life: 1,000,000 times

7. Votage: 2.7V

8. Terminal Type: T(thread), W(weldable)

GTCAP 2.7V 5000F supercapacitor battery with Terminal Type super high farad capacitor

An super capacitor (also called ultracapacitor, electric double-layer capacitor) differs from an ordinary capacitor in two important ways: its plates effectively have a much bigger area and the distance between them is much smaller, because the separator between them works in a different way to a conventional dielectric.The plates are made from metal coated with a porous substance such as powdery, activated charcoal, which effectively gives them a bigger area for storing much more charge.

GTCAP 2.7V 5000F supercapacitor battery with Terminal Type super high farad capacitor

*Pitching control system of Wind Turbine Generator

*Solar energy conversion system

*Hybrid drive trains

*Mass transportation braking energy recovery system

*UPS/DVC/HEV

*Heavy duty machinery

*Locomotive engine startup system

*CVG robots to trsport goods inside workshop
