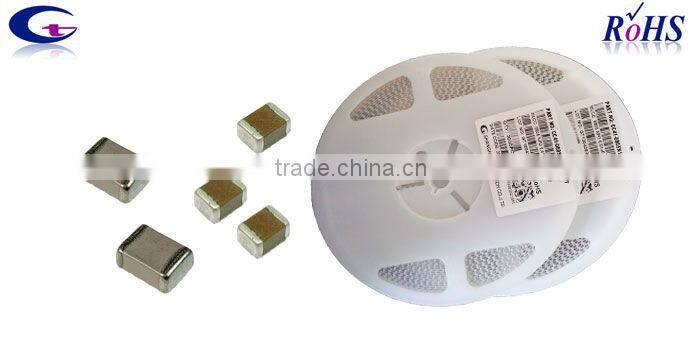

electric fan capacitor Manufacturer Ceramic Chip capacitor

Specifications

1) Ceramic Chip capacitor Ceramic Chip capacitor
2) Reel package, suit for SMT
3) Short lead time
4) Capacitor Manufacturer

Ceramic chip capacitor, MLCC capacitor, mlcc



Size: 0402 0603 0805 1206 1210 1812 2225 3035



Ceramic Chip Capacitor Features:
1) Small size,long life,low DF and LC, reel package, suit for SMT

2) short lead time, low price



Ceramic Chip Capacitor Specifications:
1) Rated voltage:6.3v~50v
2) Capacitance range:1pF~100uF Tol: +_5% +_10%,+_20%

3) Materials: NPO/COG, X7R ,Y5V/Z5U/X5R
4) Size: 0402 0603 0805 1206 1210 1812 2225 3035



Ceramic Chip Capacitor 0805

Product name	Chip ceramic capacitor
Datasheets	CC41 series
Size	0805
GT Part number	CC41-0805B105K500NT
Capacitance	1uF
Tolerance	±10%
Rated Voltage	50V
Dielectric Material	X7R
Terminal material	Nickel barrier
Standard Package	4000pcs/reel
Application	General purpose
RoHS Compliant	yes
Operating Temperature	-55°C ~+125°C



Table2 Ceramic Chip Capacitor DIMENSIONS                  unit:inch/ mm

Size Code	0402	0603	0805	1206	1210	1808	1812	2225	3035
(L×W) inch	0.04×0.02	0.06×0.03	0.08×0.05	0.12×0.06	0.12×0.10	0.18×0.08	0.18×0.12	0.22×0.25	0.30×0.35
(L×W) mm	1.00×0.50	1.60×0.80	2.00×1.25	3.20×1.60	3.20×2.50	4.50×2.00	4.50×3.20	5.70×6.30	7.60×9.00



Table3 Ceramic Chip Capacitor  DIELECTRIC STYLE

Dielectric Code

CG

HG

LG

PH

RH

SH

TH

UJ

SL

X

B

E

F

Dielectric

COG (NP0)

HG

LG

PH

RH

SH

TH

UJ

SL

X5R

X7R

Z5U

Y5V

Ceramic Chip Capacitor Application:



1,cell phone,computer,DVD, MP3, TV set,lamp,radio

2,communication equipment,electronic toys ect.
