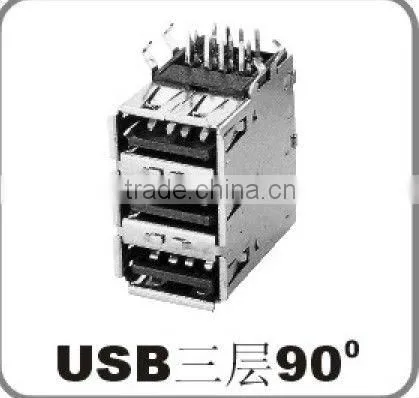

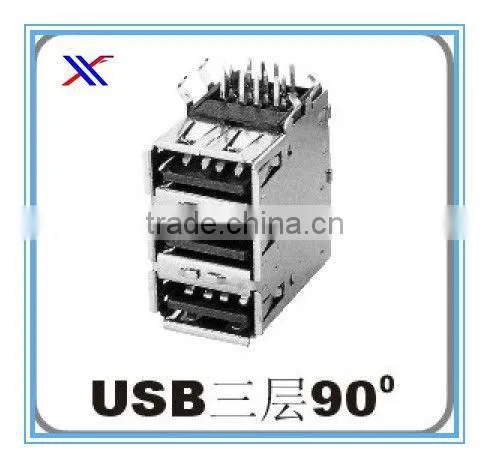

Three Storeys Usb 90 Degree Mini Connector

FOB Price

Negotiable / Piece

2000 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XF	Model Number	90°female double usb
Type	Other, USB, USB	Application	Other, Audio & Video, AUdio&video
Gender	Female

Product Description

Specifications

5 pin usb connector:
1. ISO 9001, ROHS compliant
2. Inventory Large
3. many sizes as per customer's request
4. Short deliver

8 pin usb connector:

Specification

Electrical Spec.

-Working Temperature :0°C ~+70°C

Rated Load: DC 30V 0.5A

Contact resistance: ≤50mΩ

Insulation resistance: ≥100MΩ

Withstand voltage: AC 250V (50Hz)/min

Insertion and extraction force: 5~30N

Electrical Life: 5,000 cycles Min

Mechanical Life: 10,000 cycles Min

Material

plastic		High Temperature thermoplastics
plastic		Color: Black
metal		steel

Application

Computer,MP3 player, MP4 player, digital video and camera, PDAs, GPS, flash drive and cable ASSY and PCB

a) Visual inspection: socket surface is smooth,no damage,crack,pit,and corrosion on metal parts

Features:

1,A Type/B Type/Mini Type ect.kinds of connector design

2,Flexibility design for terminal interface to ensure nice contact and prolong the operating force

3,The place that the terminal contacting is gold-plated,it is to fast the data transmiting speed

4,The place that terminal soldering is stannum-plated,it is to make the soldering better

Services:

1.Size,color,Materials and plating can be variable according to customer definition.

2..Consulting price on alitalk must reply ASAP in working days.

3.We can provide few as samples
